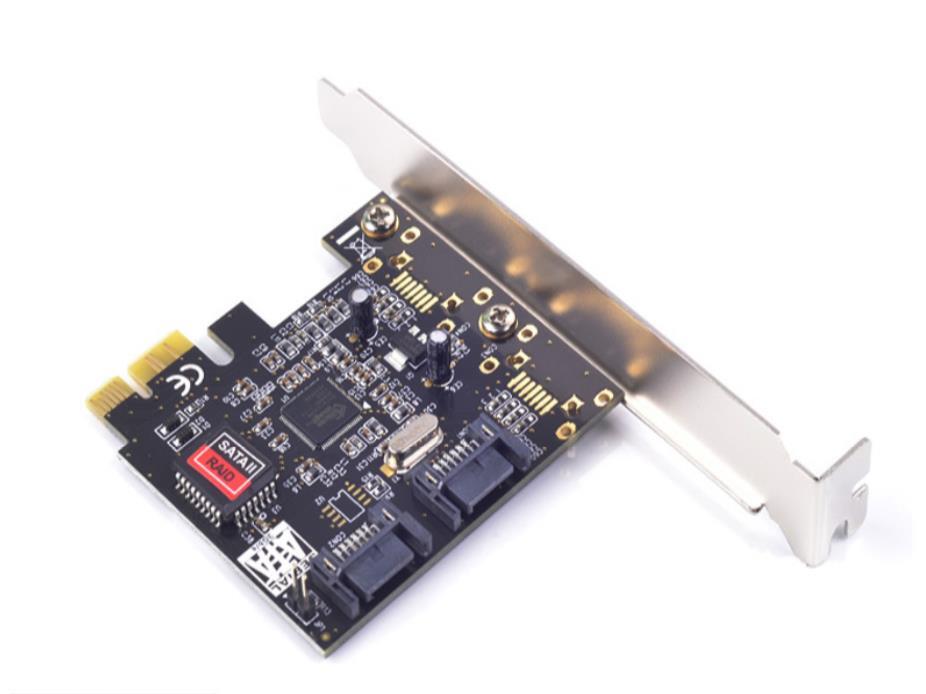

About Description: 100% Brand New And High quality. SIL3132 Chipset for Silicon (FG-ES3132-2IR) Specifications PCI-Express Serial ATA II Controller Card (2-Int. Ports) Introduction
SATA II 2-Ports with 3Gb/s and RAID Features
2-Internal SATA II ports
Support RAID 0, 1 Specification General
1-Lane (x1) PCI-Express with transfer rate 2.5 Gb/s Full Duplex channel
Compliant with PCI-Express Revision 1.0a
Fully Plug & Play compatible
Driver supported MS Windows2000/XP 32-bit/XP 64-bit/Server 2003, Vista, Linux, Mac OS SATA II Interface
Compliant with Serial ATA II Specification
Data transfer rate up to 3.0Gb/s
Backward compatible to SATA 1.0 Specification
SupportPort Multiplier
Support 2-independent SATA channels RAID Function (Optional)
Supports RAID 0 (striped), RAID 1 (mirror), JBOD
Supports Co-Exist RAID Set and Non-RAID HDD System Requirement
PC Computer with one PCI-Express x1 Slot
Supported OS 1 x 2 Port SATA2.0 PCI-Express Raid Card
1 x Driver CD
