️ Important Note (Read Before Purchasing!)

The motherboard must support PCIe Bifurcation (splitting): This is a prerequisite for using this product. If your motherboard does not support this feature, or if the lanes are set to Auto, only one SSD will be recognized.BIOS Settings: You need to manually set the lane configuration of the corresponding PCIe x16 slot to [x4x4x4x4] mode in your motherboard's BIOS settings.Compatible Motherboards: Mainstream brands such as MSI and ASUS are supported. Please consult your motherboard's manual before purchasing to

confirm that it supports PCIe splitting.Full Link Support: To achieve maximum speeds, the CPU, motherboard, expansion cards, and SSDs must all fully support PCIe 5.0.

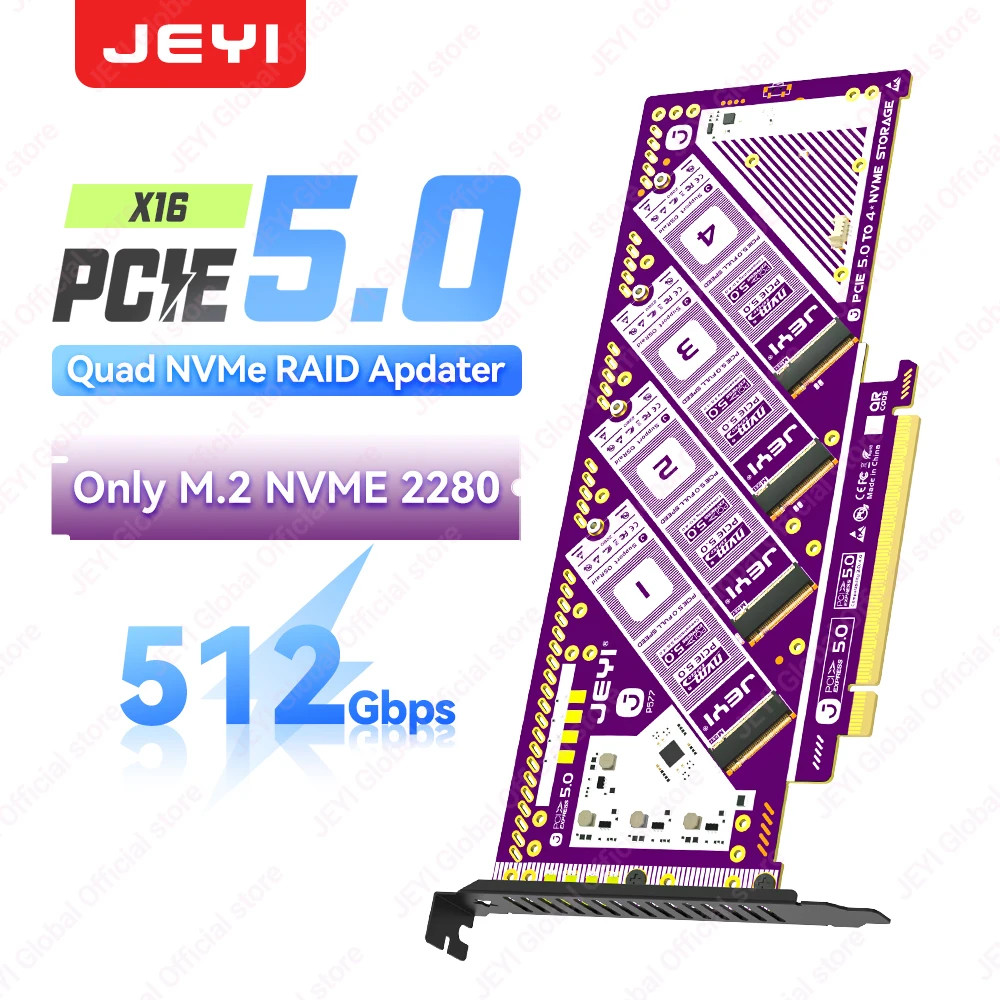

JEYI PCIe 5.0 X16 Quad M.2 Expansion Card-4-Bay NVMe RAID 0/1/5/JBOD 512Gb/s Speed Supports up to 8TB per SSD compatible with PCIe 4.0/3.0

Extreme Speed: Utilizing the latest generation PCIe 5.0 technology, the theoretical bandwidth reaches up to 512Gbps. Measured speeds exceed 40,000MB/s in RAID 0 mode, and single-drive read speeds exceed 10,000MB/s.Massive Storage: Up to four M.2 2280 NVMe SSDs can be installed simultaneously. Each SSD supports up to 8TB of storage, for a total capacity of an astonishing 32TB.️ Flexible Configuration: Supports multiple RAID modes, balancing speed and data security.

Windows: RAID 0, RAID 1, RAID 5, JBOD

macOS: RAID 0, RAID 1, JBODIndependent Mode: No RAID required, all four SSDs are independently recognized.Broad Compatibility: Backwards compatible with PCIe 4.0/3.0 standards. Includes a standard 2U chassis bracket for compatibility with a wide range of

computer cases. Interface: PCIe 5.0 x16 (supports x16 slots only, not compatible with x1/x4/x8 or PCI slots)

Theoretical bandwidth: 512 Gbps

Measured speed (RAID 0): 40,000+ MB/s

Measured speed per drive (PCIe 5.0 x4):

SEQ1M Q8T1: Read 12,351.09 MB/s | Write 10,119.38 MB/s

RND4K Q32T16: Read 4,240.80 MB/s | Write 9,452.70 MB/s

Supported SSD form factor: M.2 2280 NVMe only (M Key),does not support S

ATA protocol (B Key) SSDs.

PCIE 5.0 TO M.2 QUAD NVME RAID ADAPTER

PCle 5.0 X16 Ultra Speed

Futured next Gen PCle 5.0 512Gbps specification,backward compatible with PCle 3.0/4.0PS:Data above from JEYl Lab tests, details subject to actual use.

Various Secure RAlD Configurations

It supports multiple system-configurable RAlD modes,enhancing data security also we support isolated mode for 4 drives

Settings on MSI & ASUS

* Friendly reminder: The motherboard must support the bifurcation function

RAlD 0 Tested Speed: 40000+MB/s

Real test below for single drive for PCle 5.0x4 reaches 10000MB/s

Only Supports NVMe 2280 SSDs

Massive expansion up to 8TB, total for 32TB

Supports PCle X16 Only

How to Set-up RAID

Simple to Installation

Package Contents
