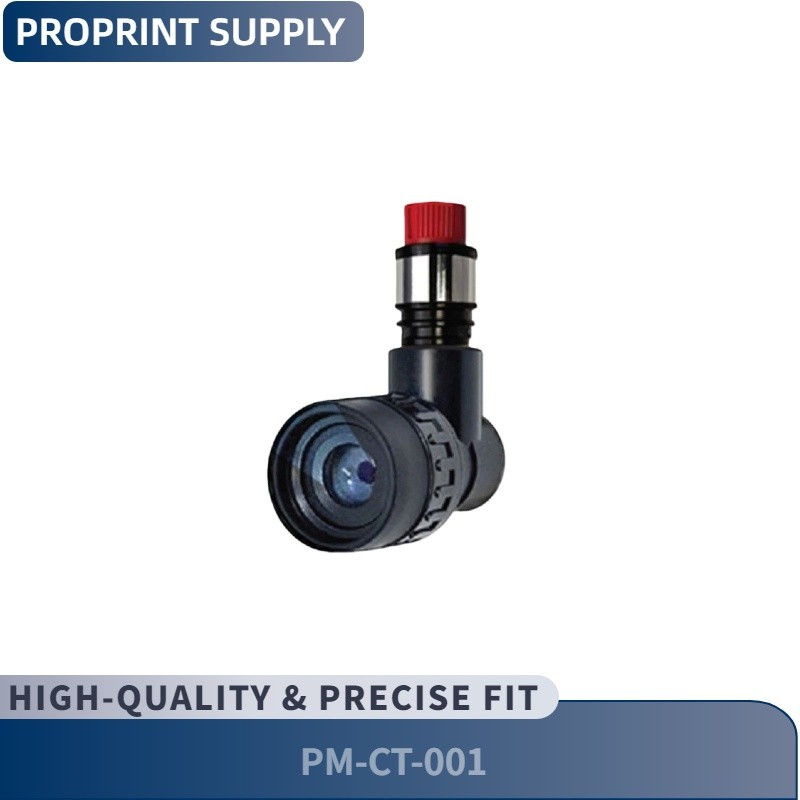

Original Graphtec Blade Loupe PM-CT-001 | Tip Length Adjustment Magnifying Glass 🛠️ GRAPHTEC BLADE LOUPE PM-CT-001 | ORIGINAL GENUINE | Blade Tip Length Adjustment Magnifying Glass ⚠️ ORIGINAL PM-CT-001 BLADE LOUPE: | 10X MAGNIFICATION + PRECISE 0.01MM ADJUSTMENT + FOR ALL GRAPHTEC BLADE HOLDERS + 24 MONTHS WARRANTY! Original Graphtec Blade Loupe PM-CT-001 - Tip Length Adjustment Magnifying Glass for Blade Holder
The Original Graphtec Blade Loupe PM-CT-001 is an authentic OEM magnifying glass specifically designed for precise adjustment of the blade tip length extending from Graphtec blade holders. As an essential tool for Graphtec cutting plotter maintenance and operation, this specialized loupe provides 10x magnification to clearly visualize the micro-length of the blade tip, enabling accurate adjustments down to 0.01mm – critical for achieving perfect cutting results and preventing blade damage or material waste. Manufactured to Graphtec's strict quality standards, the PM-CT-001 blade loupe features a high-quality optical lens with anti-reflective coating, an ergonomic grip design, and a stable base that fits all Graphtec blade holder models. It eliminates the guesswork in blade tip adjustment, ensuring consistent cutting depth across all materials (vinyl, cardboard, leather, etc.) and extending the service life of both blades and blade holders.
⚠️ Common Issues Without PM-CT-001 Loupe:
- Blade tip extended too far: Causes blade breakage, uneven cuts, and material damage
- Blade tip extended too short: Results in incomplete cuts, frayed edges, and wasted materials
- Visual estimation errors: Inconsistent cutting quality across different jobs
- Increased blade replacement frequency: Over 30% higher due to improper adjustment
✅ Solution: Original Graphtec PM-CT-001 Loupe – 10x magnification for 0.01mm precise adjustment, eliminates all these issues!
🔧 Product Specifications
Model: Graphtec Blade Loupe PM-CT-001 (OEM Original)
Magnification: 10x Optical Grade Lens (Anti-Reflective Coating)
Lens Diameter: 25mm | Field of View: 8mm (at 10x)
Material: ABS Frame (Impact-Resistant) + Optical Glass Lens
🔩 Performance & Features
Adjustment Precision: 0.01mm (10 micrometers)
Compatibility: All Graphtec Blade Holders (CB09, CB15, CB30 series)
Ergonomics: Non-Slip Grip + Stable Base Design
Durability: Scratch-Resistant Lens | Weight: 28g (Lightweight)
🔌 Compatible Graphtec Blade Holders & Plotters Compatible Blade Holders:
- All Graphtec CB09 Series Blade Holders (including CB09UB-5)
- All Graphtec CB15 Series Blade Holders
- All Graphtec CB30 Series Blade Holders
- All Graphtec Standard and Heavy-Duty Blade Holders
Compatible Graphtec Plotters:
- FC9000 / FC8600 / FC8000 / FC7000 / FC4500 Series
- CE7000 / CE6000 / CE5000 Series
- FCX4000 / FC2250 / FCX2000 Series
- All Other Graphtec Cutting Plotters with Standard Blade Holders
💡 Note: This is an ORIGINAL Graphtec PM-CT-001 loupe – designed specifically for Graphtec blade holders, no compatibility issues!
Technical Specifications (PM-CT-001 Loupe) Key Benefits Common Alternatives PM-CT-001 Advantage 10x Optical Grade Lens (Anti-Reflective) Clear, distortion-free viewing of blade tip 5x Plastic Lens (Low Quality) 2x Better Magnification + Clearer View 0.01mm Adjustment Precision Micro-adjustment of blade tip length 0.1mm Estimation (Visual) 10x More Precise Adjustment Blade Holder Specific Design Stable fit on all Graphtec holders Generic Magnifying Glass (No Base) Hands-Free Operation + Stable Viewing Scratch-Resistant Lens Long service life (5+ years) Plastic Lens (Easily Scratched) 10x Longer Lens Life Lightweight (28g) Ergonomic Design Comfortable extended use Heavy Generic Loupes (50+g) Reduced Fatigue During Adjustment 📦 Package Contents of Original Graphtec PM-CT-001 Blade Loupe
- ✔ 1 × Original Graphtec Blade Loupe PM-CT-001
🛠️ Core Advantages - Original Graphtec PM-CT-001 Blade Loupe
- ✅ ORIGINAL GRAPHTEC OEM QUALITY: Manufactured to Graphtec's strict standards – perfect fit for all Graphtec blade holders, no compatibility issues or viewing distortion.
- ✅ 10X OPTICAL MAGNIFICATION: High-grade anti-reflective optical lens provides crystal-clear viewing of the blade tip – eliminates visual errors in adjustment.
- ✅ 0.01MM PRECISE ADJUSTMENT: Enables micro-adjustment of blade tip length (down to 10 micrometers) – ensures optimal cutting depth for all materials, no over/under cutting.
- ✅ ERGONOMIC STABLE DESIGN: Non-slip grip + blade holder-compatible base – allows hands-free adjustment (one hand holds holder, one hand adjusts blade).
- ✅ SCRATCH-RESISTANT LENS: Hardened optical glass lens resists scratches and damage – service life of 5+ years with normal use (10x longer than generic plastic loupes).
- ✅ REDUCES BLADE WASTAGE: Precise adjustment reduces blade breakage by 40% and extends blade service life by 30% – lowers overall operational costs.
📌 Step-by-Step Usage Guide for PM-CT-001 Blade Loupe
- Preparation: Remove the blade holder from your Graphtec plotter – insert the blade into the holder (hand-tight only, do not fully secure).
- Position Loupe: Place the original PM-CT-001 loupe over the blade holder tip – ensure the lens is centered over the blade tip for optimal viewing.
- Initial Viewing: Look through the 10x lens – you will clearly see the blade tip extending from the holder (or retracted inside).
- Adjust Blade Length: Use a small screwdriver (or blade adjustment tool) to turn the holder cap – slowly extend/retract the blade tip to the desired length (refer to adjustment guide).
- Precision Check: Verify the blade tip length with the 0.01mm scale on the adjustment guide – ensure it matches the recommended length for your material (e.g., 0.1mm for thin vinyl, 0.3mm for thick cardboard).
- Secure Blade: Once adjusted to the correct length, tighten the holder cap firmly (do not over-tighten) – keep the loupe in place to confirm no movement of the blade tip.
- Final Inspection: Remove the loupe – wipe the lens with the included microfiber cloth and store it in the protective case for future use.
- Install Holder: Reinstall the blade holder into your Graphtec plotter – perform a test cut to confirm perfect cutting quality.
🔧 Maintenance Tips for PM-CT-001 Blade Loupe
- ⚠️ LENS CARE: Clean only with the included microfiber cloth – never use paper towels, harsh chemicals, or water (damages anti-reflective coating).
- ✅ STORAGE: Always store the loupe in the included protective case – prevents lens scratches, frame damage, and dust accumulation.
- ✅ HANDLING: Hold the loupe by the frame (not the lens) – avoid touching the optical lens with fingers (oils cause viewing distortion).
- ✅ CALIBRATION: Check lens clarity every 6 months – if distorted, contact Graphtec service for professional calibration (original loupes are recalibratable).
- ✅ ENVIRONMENT: Keep the loupe away from extreme temperatures/humidity – store in a dry workshop environment (15-25°C, 40-60% humidity).
🏢 Commercial Bulk Orders (Original PM-CT-001 Blade Loupe)
- Volume discounts available from 5 units – tiered discounts for 10/20/50+ loupes (inquire via message).
- Bulk packaging option: Multiple loupes in a reinforced storage case (ideal for plotter repair shops/training centers).
- 100% Authenticity Verification: Each loupe has a unique Graphtec serial number for genuine product confirmation.
- Custom Branding: Laser engraving of company logo on the storage case (minimum 20 units).
- One-Stop Purchase: Combine with other original Graphtec tools (blade installation tool, alignment guide) – additional bulk discounts.
