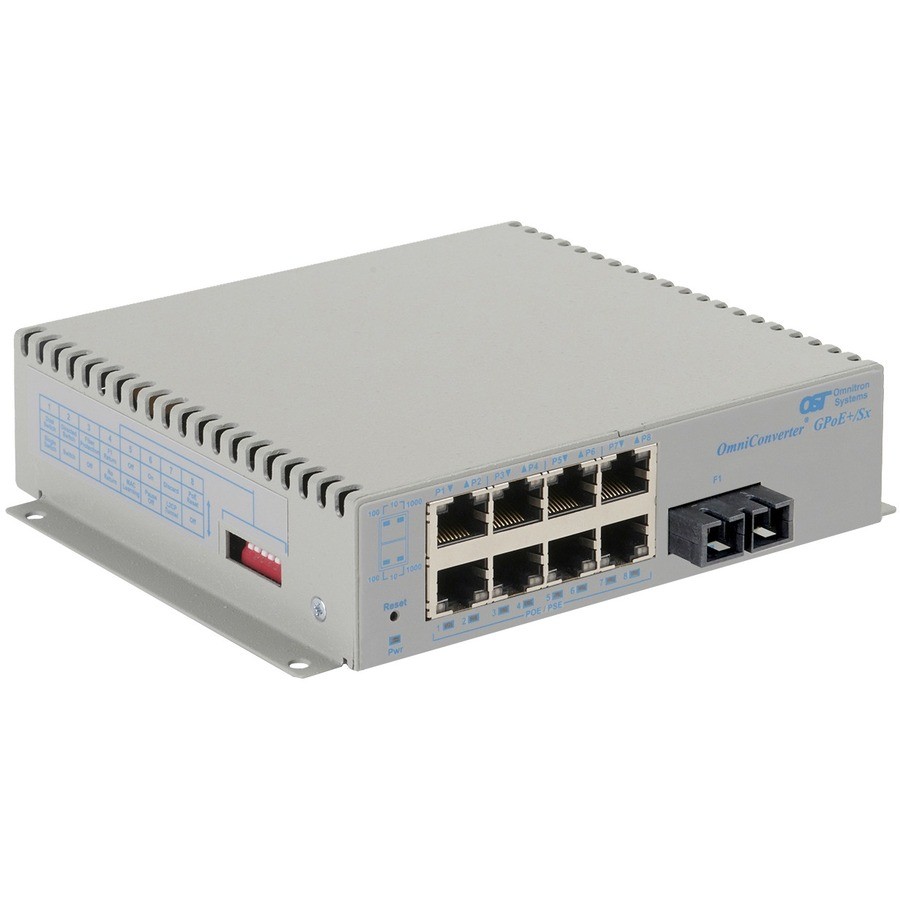

Omnitron Systems OmniConverter Unmanaged Gigabit PoE+ SM SC RJ-45 Ethernet Fiber
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Omnitron Systems OmniConverter Unmanaged Gigabit PoE+ SM SC RJ-45 Ethernet Fiber
Price: US $1833.73
OMNICONVERTER GPOE+/SX 34KM 8X 10/100/1000T - 1000X SCSM DC EXT
  • About Us
  • Payment Info
  • Shipping Info
  • Customer Support
  • response
Omnitron Systems OmniConverter Unmanaged Gigabit PoE+ SM SC RJ-45 Ethernet Fiber Switch 94432189Z Brand: Omnitron Systems UPC: 0800975038882 Mfr Part #: 94432189Z

General Information

The OmniConverter GPoE+/Sx is a compact unmanaged PoE and PoE+ Ethernet fiber switch that features one or two Gigabit fiber ports and four or eight 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet ports. The OmniConverter switch enables network distance extension with fiber cabling and provides PoE+ power to all RJ-45 ports.

The GPoE+/Sx functions can be configured using easily accessible DIP-switches.

The OmniConverter GPoE+/Sx is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The 4-Port GPoE+/Sx supports MUX Mode, which allows the data traffic to be tunneled between two GPoE+/Sx switches. Data traffic on the RJ-45 ports on one switch are mirrored to the corresponding RJ-45 ports on the other switch.

The GPoE+/Sx supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate fiber port, preventing the multicast video traffic from flooding other network ports.

Models with two fiber ports support redundant fiber uplinks for critical applications that require protection and sub 50ms restoration in the event of a fiber failure. The second fiber port may also be used to daisy-chain multiple Ethernet switches, or it may be used as another switch port.

Models with two fiber ports also support Dual Device mode that enables the GPoE+/Sx to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GPoE+/Sx provides separate and independent data traffic paths between the two fiber links and four or eight RJ-45 ports.

The OmniConverter GPoE+/Sx is available with fixed ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or single-fiber with distances up to 140 km. SFP models support a variety of distances in standard and CWDM wavelengths. The 4 Port RJ-45 models support 1000BASE-X and 100BASE-X SFP fiber transceivers.

The GPoE+/Sx automatically negotiates and delivers the power level required by its Powered Device (PD) partner. When negotiating to PoE (IEEE 802.3af) it delivers up to 15.4 Watts per RJ-45 port. When negotiating to PoE+ (IEEE 802.3at) it delivers up to 30 Watts per RJ-45 port.

PoE power reset enables a PD to be re-initialized remotely. When a problem with a PD is identified, the fiber port on a managed switch can be shut down or disconnected, enabling the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 2 seconds when a loss of receive fiber link is detected by the OmniConverter, eliminating the need for costly truck rolls to remote PD sites.

The compact OmniConverter switches can be wall mounted or DIN-rail mounted using an optional DIN-rail mounting clip. The OmniConverter switches are available with DC input power via terminal connectors or external 100 to 240V AC power adapters. The 8-Port models are available with 100 to 240V AC power adapters.

Media & PerformanceMedia Type Supported:Twisted PairMedia Type Supported:Optical FiberEthernet Technology:Gigabit EthernetNetwork Technology:10/100/1000Base-TNetwork Technology:1000Base-X

Network & CommunicationLayer Supported:2

Management & ProtocolsManageable:No

Physical CharacteristicsForm Factor:DIN Rail MountableForm Factor:Wall (Approximate):1.50 lb

  • OmniConverter GPoE+/Sx 9443-2-18-9Z Ethernet Switch
  • User Manual
    • Country of Origin:United StatesEnvironmentally Friendly:YesEnvironmental Compliance:Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Environmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)
