Key Features:

• HDCP 2.2 & DisplayPort 1.2a Compliant – Ensures broad device compatibility
• 4K@60Hz Extension up to 100m – Transmits uncompressed 4K@60Hz 4:4:4 video up to ~330 feet over a single CAT6 cable using HDBaseT technology.
• 18Gbps Video Bandwidth – Supports full-bandwidth, uncompressed video
• HDR Support – Compatible with HDR10 and HDR10+
• Advanced Audio Formats – Supports Dolby Atmos, Dolby Digital Plus, DTS:X, DTS-HD Master Audio, PCM 2–8CH, and more
• Dual Input Wall Plate – Combines the functionality of a 2x1 Switch and HDBaseT transmitter with HDMI™ and USB-C inputs in
• a US One-Gang Decora-style wall plate.
• USB-C Charging Port – Provides power to the connected laptop
• Effortless Switching – Automatic or manual switching supported
• USB 2.0 Extension – Connect multiple peripherals such as keyboard, mouse, USB drives, etc.
• PoC Powered – Only one power supply needed: at the Receiver end

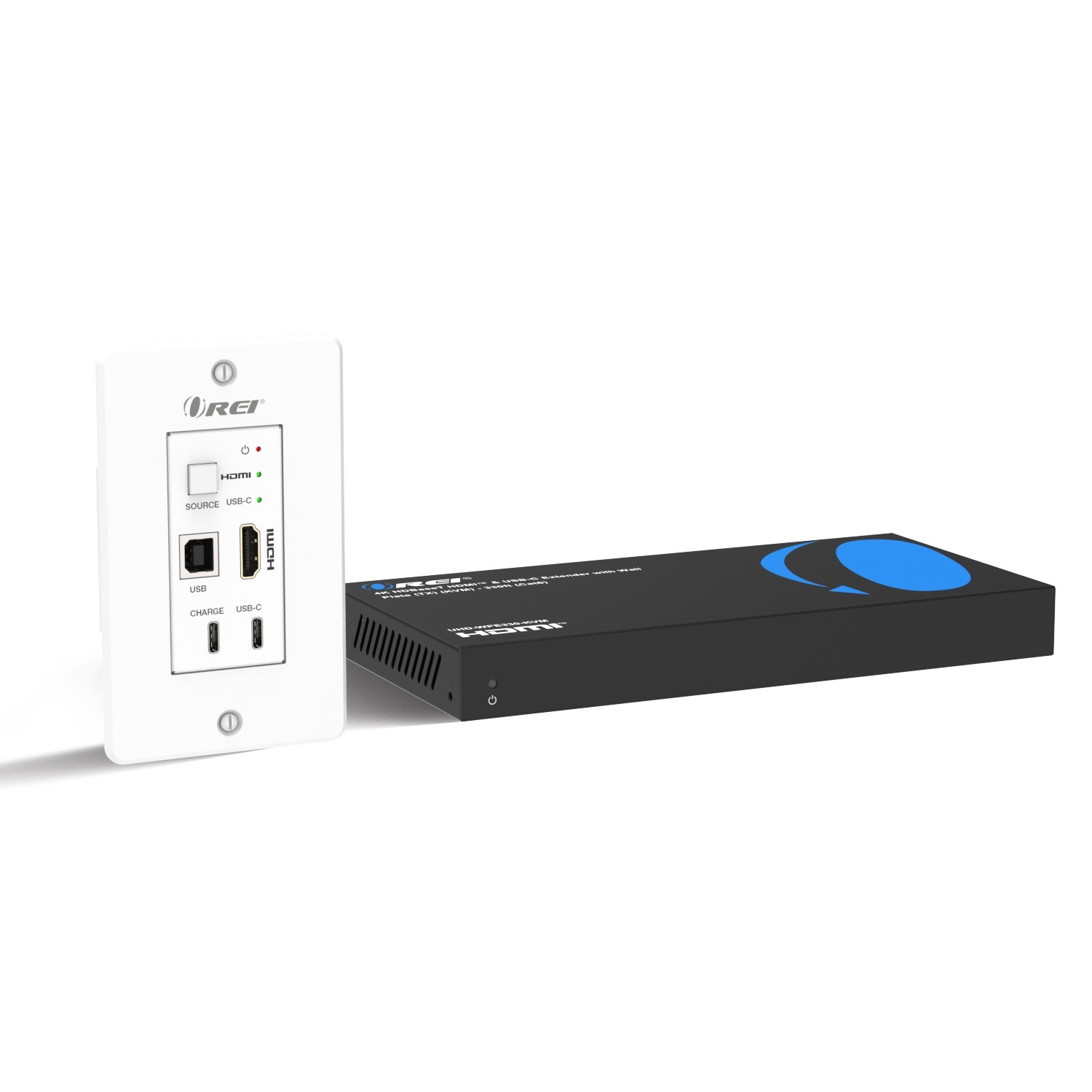

The UHD-WPE330-KVM is an HDBaseT KVM Extender that allows you to connect two computers or laptops and control them from a remote location using a single keyboard, mouse, and display. It supports both HDMI™ and USB-C inputs, ensuring broad compatibility with modern computers. The system is compliant with HDMI™ 2.0b, HDCP 2.2, USB 2.0, and DisplayPort 1.2a, delivering up to 18Gbps bandwidth and supporting video resolutions up to 4K@60Hz. Signals can be extended up to 100 meters (~330 ft) over a single CAT6/7 cable. The extender supports HDR10 and HDR10+, along with advanced audio formats including Dolby Atmos, Dolby Digital Plus, DTS:X, and DTS-HD Master Audio, ensuring a high-quality AV experience. Switching between the two connected computers is simple using the button on the Transmitter or via automatic switching for added convenience. Designed for clean and professional installations, the Transmitter fi ts into a US one-gang Decora-style wall plate enclosure. A dedicated USB-C charging port on the Transmitter allows laptops to be charged while in use. With Power over Cable (PoC) support, only the Receiver needs to be powered, reducing cable clutter and simplifying installation.
