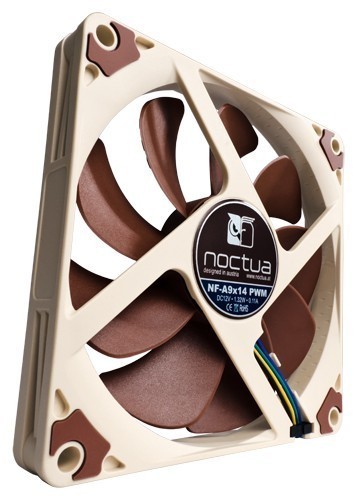

Featuring Noctua’s AAO frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9x14 is a highly optimised, premium quality quiet fan in 92x14mm size. Due to its thickness of only 14mm, the NF-A9x14 is a perfect match for low profile CPU coolers and all other applications that require slimmer fans. Noctua’s custom-designed PWM ICfor fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturer’s warranty, the NF-A9x14 is a premium choice for the highest demands.

Size 92x92x14 mm



Connector 4-pin PWM



Bearing SSO2



Blade Geometry A-Series with Flow Acceleration Channels



Frame Technology AAO (Advanced Acoustic Optimisation)



Rotational Speed (+/- 10%) 2200 RPM



Rotational Speed with L.N.A. (+/- 10%) 1700 RPM



Min. Rotational Speed (PWM) 300 RPM



Airflow 50,5 m³/h



Airflow with L.N.A. 38,1 m³/h



Acoustical Noise 19,9 dB(A)



Acoustical Noise with L.N.A. 13,5 dB(A)



Static Pressure 1,64 mm H2O



Static Pressure with L.N.A. 0,92 mm H2O



Max. Input Power 1,32 W



Max. Input Current 0,11 A



Voltage 12 V



MTBF > 150.000 h



Scope of Delivery •Low-Noise Adapter (L.N.A.)
•4-Pin Y-Cable
•30cm Extension Cable
•4 Vibration-Compensators
•4 Fan Screws


Warranty 6 years
