Tycon Power TP-SW5G-24
DESCRIPTION

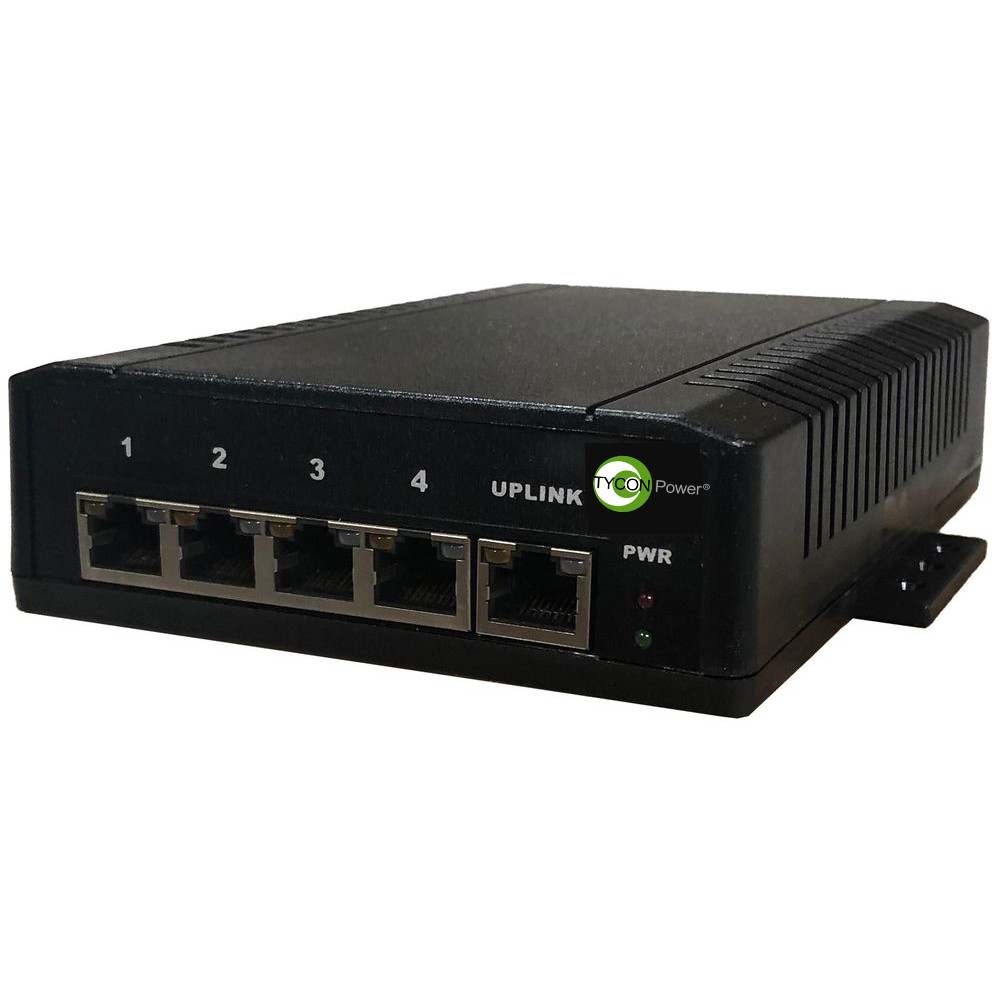

Brand New Tycon Power TP-SW5G-24
The SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port.
IEEE802.3af/at Compliant 48VDC 10/100/1000MB PoE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC PoE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port. 70W Max Total.
Switches have DIN Rail mounts included for convenient DIN rail Access Points and Client Devices
IP Phone and Security Camera SystemsPoE Lighting Power 1000Mb 5Port PoE SwitchRemotely Power Equipment thru CAT5 Cable up to 100mUp to 2A per PortBuilt-In Surge ProtectionAutomatic MDI/MDI-X CrossoverAutomatic Speed and Duplex SensingCompact SizeHigh Temperature OperationCE and FCC code:TP-SW5G-24Ethernet Standard:IEEE802.3/IEEE802.3uPOE Standard (Port 1-5):IEEE802.3af/atPorts:1 data/PoE input and 4 data/PoE, automatic crossover and polarityTransmission Speed:1000Mbps / 100 Mbps /10 Mbps Auto-negotiationFlow Control:IEEE802.3x(full-duplex), Back Pressure(half-duplex)Data Transmission Rate:1488000pps for 1000baseT, 148800pps for 100baseT, 14880pps for 10baseTAddress Table:1K MAC, self-learningMaximum POE Power:Up to 35W per port; max 70W Total per switchPOE Protection:Over Temperature, Over Current, Over/Under VoltageDC Power Input:24VDC (12V to 36V), Dual DC Inputs,
Reverse Polarity Protected. Also Accepts
PoE power input on Port 5Operating Temperature:-40 to +70°C (-40 to 158°F)Dimensions (LxWxH):159 x 118 x 40mm (6.3 x 4.6 x 1.6”)Weight:0.38kg (13.5oz)SHIPPINGShipping Instructions:
