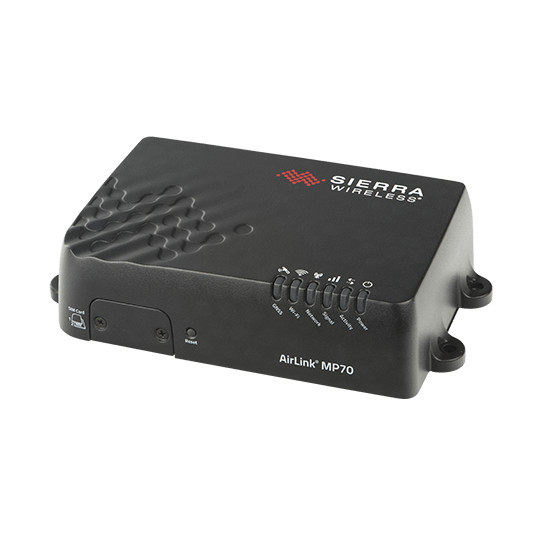

AirLink MP70 Router SIERRA WIRELESS (SEMTECH) AirLink MP70 NA
LTE-A PRO WIFI High Performance 4G RouterFeatures Highlight:- Brand New in Box- MSRP $1099- Vehicle router designed for Industrial use-4G/CAT6/VPN/Rugged- Model 1104073- Return Policy: within 30 days in original condition, otherwise restocking fees applies Overview
The AirLink® MP70 with a single LTE radio and dual-band Gigabit Wi-Fi, enables live video streaming and secure access to remote databases, and delivers connectivity for laptops, tablets, DVRs, and vehicle telemetry.
Features 4G LTE Cat-12 Single Serial AirLink Complete 3×3 MIMO Wi-Fi 5 GNSS with Dead Reckoning 4x Ethernet (1 Gbps) IP64 Rated Use Cases
Mobile mission critical applications in public safety and field services. Enables robust and secure Vehicle Area Networks (VANS) for:
- Police
- Fire
- Utility Vehicles
- Multi-ethernet industrial and IoT applications
Benefits
- More than half of the Top 100 police departments rely on our routers in cruisers and incident response vehicles
- Delivers reliable results in your real-world conditions
- Video, voice and data applications all work together - when and how you need them
- Work further and faster from the vehicle than ever before
Product Specifications North America Global CELLULAR Peak D/L Up to 600 Mbps, Cat 12 Up to 600 Mbps, Cat 12 Peak U/L Up to 150 Mbps, Cat 12 Up to 150 Mbps, Cat 12 4G LTE Frequency Bands B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, CBRS B48, B66 B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 Public Safety Bands Band 14 (United States), FirstNet® Trusted* Band 26, 28 3G WCDMA / HSPA+ Frequency Bands B1, B2, B4, B5, B6, B8, B9, B19 B1, B2, B4, B5, B6, B8, B9, B19 Approvals Regulatory FCC, PTCRB, IC/ISED CE, GCF, RED, RCM Carrier** AT&T, FirstNet® Trusted*, Verizon, T-Mobile, Rogers, Telus, Southern Linc Telstra Part Numbers 1104071, 1104073 (Wi-Fi) 1104072, 1104074 (Wi-Fi)
*Requires device management via AirLink Management Service (ALMS)
** For carrier specific band support please refer to the hardware user guide
HOST INTERFACES 4 Gigabit RJ-45 Ethernet ports
RS-232 serial port (DB-9)
USB 2.0 Micro-B Connector
3 SMA antenna connectors (cellular, diversity, GNSS)
Active GNSS antenna support SECURITY Remote Authentication (LDAP, RADIUS, TACACS+)
DMZ Inbound and Outbound Port filtering
Inbound and Outbound Trusted IP
MAC Address Filtering
PCI compatible
Secure Firmware Update
FIPS 140-2 SATELLITE NAVIGATION (GNSS) Dedicated GNSS Receiver supporting GPS, GLONASS, BeiDou, Galileo
Tracking Sensitivity: -162 dBm
Reports: NMEA 0183 V3.0, TAIP, RAP, XORA
Multiple Redundant Servers
Reliable Store and Forward
Inertial Navigation Sensors (Accelerometer and Gyro) WI-FI (OPTIONAL) Dual Band 2.4/5GHz Wi-Fi
802.11 b/g/n/ac with support for 128 clients
WPA2 Enterprise
High output power
Simultaneous AP/Client Mode
WiFi as WAN Mode (Multiple SSIDs, Captive Portal) LAN (ETHERNET/USB) DHCP Server
IP Passthrough
VLAN
Host Interface Watchdog
PPPoE ENVIRONMENTAL Operating Temperature -30°C to +70°C / -22°F to +158°F Storage Temperature -40°C to +85°C / -40°F to +185°F Humidity 95% RH @ 60°C Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
IP64 rated ingress protection POWER Input/Operating Voltage 7 to 36 VDC Power Modes Low voltage disconnect to prevent battery drain
Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
Ignition Sense with time delay shutdown INPUT/OUTPUT Configurable I/O (5 pins total)
5 Digital Inputs: ON Voltage: 2.7 to 36 VDC
1 Digital Open Collector Output > sinking 500 mA
3 Analog Inputs: 0.5-36 VDC
Configurable Pull-ups for dry contact input SERIAL TCP/UDP PAD Mode
Modbus (ASCII, RTU, Variable)
PPP
DNP3 Interoperability NETWORK AND ROUTING Throughput 140 Mbps Firewall TCP throughput Features Network Address Translation (NAT)
Reliable Static Route
Port Forwarding
Dynamic DNS
Policy Routing
Verizon PNTM
NEMO/DMNR
IPV6 Gateway
VRRP VPN IPsec, GRE, and OpenVPN Client
Up to 5 concurrent tunnels
Split Tunnel
Dead Peer Detection (DPD) ROUTER MANAGEMENT INTERFACES Local web user interface
AT Command Line Interface (Telnet/SSH/Serial)
SNMP
SMS Commands APPLICATION FRAMEWORK ALEOS Application Framework (AAF)
LUA Scripting Language EVENTS ENGINE Custom event triggers and reports
Configurable interface, no programming
Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
Event Actions: Drive Relay Output INDUSTRY CERTIFICATIONS Safety IECEE Certification Bodies Scheme (CB Scheme), UL60950 Vehicle Usage E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical) Environments RoHS2, REACH, WEEE Rail Usage EN50155 (Rolling Stock) ACCESSORIES In The Box MP70, DC Power Cable and Quick Start Guide DIMENSIONS 190mm x 45mm x 105mm (112mm including connectors)
7.5in x 1.75 in x 4.1 in (4.4 in including connectors) Weight 0.76kg / 1.68 lb MSRP $1,099.00
All product information presented above are as provided by the manufacturer.
