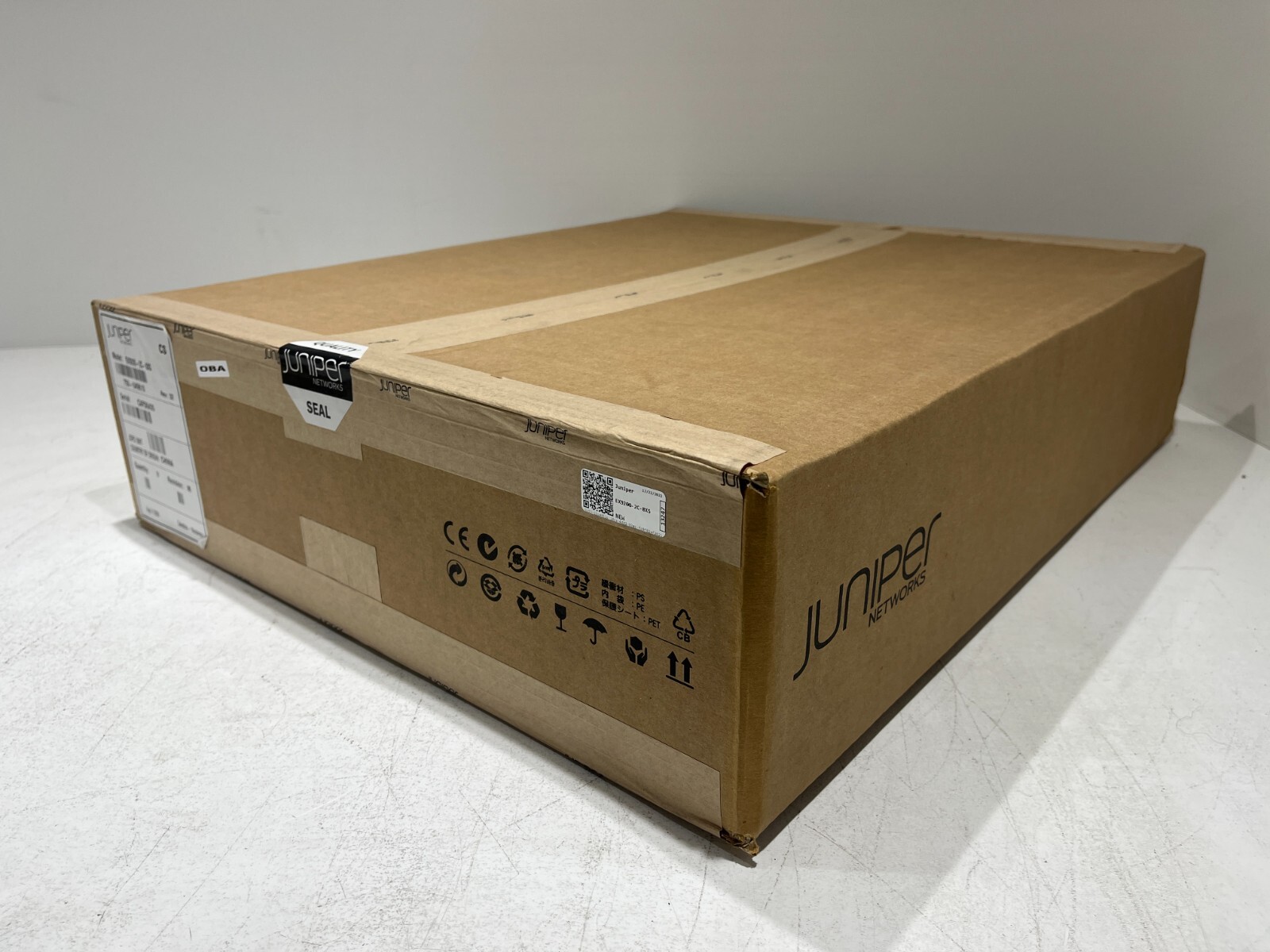

These units arrive new sealed in original factory packaging with a 1 year hardware warranty.
Juniper EX9200-2C-8XS - 2-port 100GbE + 8-port 10GbE line card; requires CFP and SFP+ optics sold separately
PN: class="p" style="margin: 0px; padding: 0px; border: 0px; box-sizing: border-box; line-height: 1.8; font-size: 1.4rem;">Model
Description
JunosOS Release Required
EX9200-2C-8XS
A line card with two 100-Gigabit Ethernet ports, each of which can house 100-gigabit C form-factor pluggable (CFP) transceivers; and eight 10-Gigabit Ethernet ports, each of which can house 10-gigabit small form-factor pluggable plus (SFP+) transceivers
13.2R1 or later
SeeFigure 1
Figure 1:EX9200-2C-8XS Line Card1—Ejector levers4—100-Gigabit Ethernet ports2—Line card LED5—LEDs for the 100-Gigabit Ethernet ports3—LEDs for the 10-Gigabit Ethernet ports6—10-Gigabit Ethernet ports
You can use theshow versioncommand to see the version of JunosOS for EXSeries switches loaded on the switch.
Line Card Components
The EX9200-2C-8XS line card has:
Two 100-Gigabit Ethernet ports, each of which can house CFP transceivers. These ports support 100GBASE-LR4 and 100GBASE-SR10 transceivers.
Eight 10-Gigabit Ethernet ports, each of which can house SFP+ transceivers. These ports support 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, and 10GBASE-ZR transceivers.
Two dust covers for the two 100-Gigabit Ethernet ports and eight dust covers for the eight 10-Gigabit Ethernet ports
Line card LED—An LED labeledOK/FAIL, which indicates the status of the line card.
LEDs for the ports—One LED on each port, the Link/Activity LED, which indicates the link status and activity on the port.
The ports are divided into two port groups. The four 10-Gigabit Ethernet ports labeled0/0through0/3and the 100-Gigabit Ethernet port labeled1/0form one port group. The four 10-Gigabit Ethernet ports labeled2/0through2/3and the 100-Gigabit Ethernet port labeled3/0form the other port group. The ports in each group share 130 gigabits of bandwidth. Thus, you can transmit up to 130 gigabits of traffic through a port group, without packet drop.
