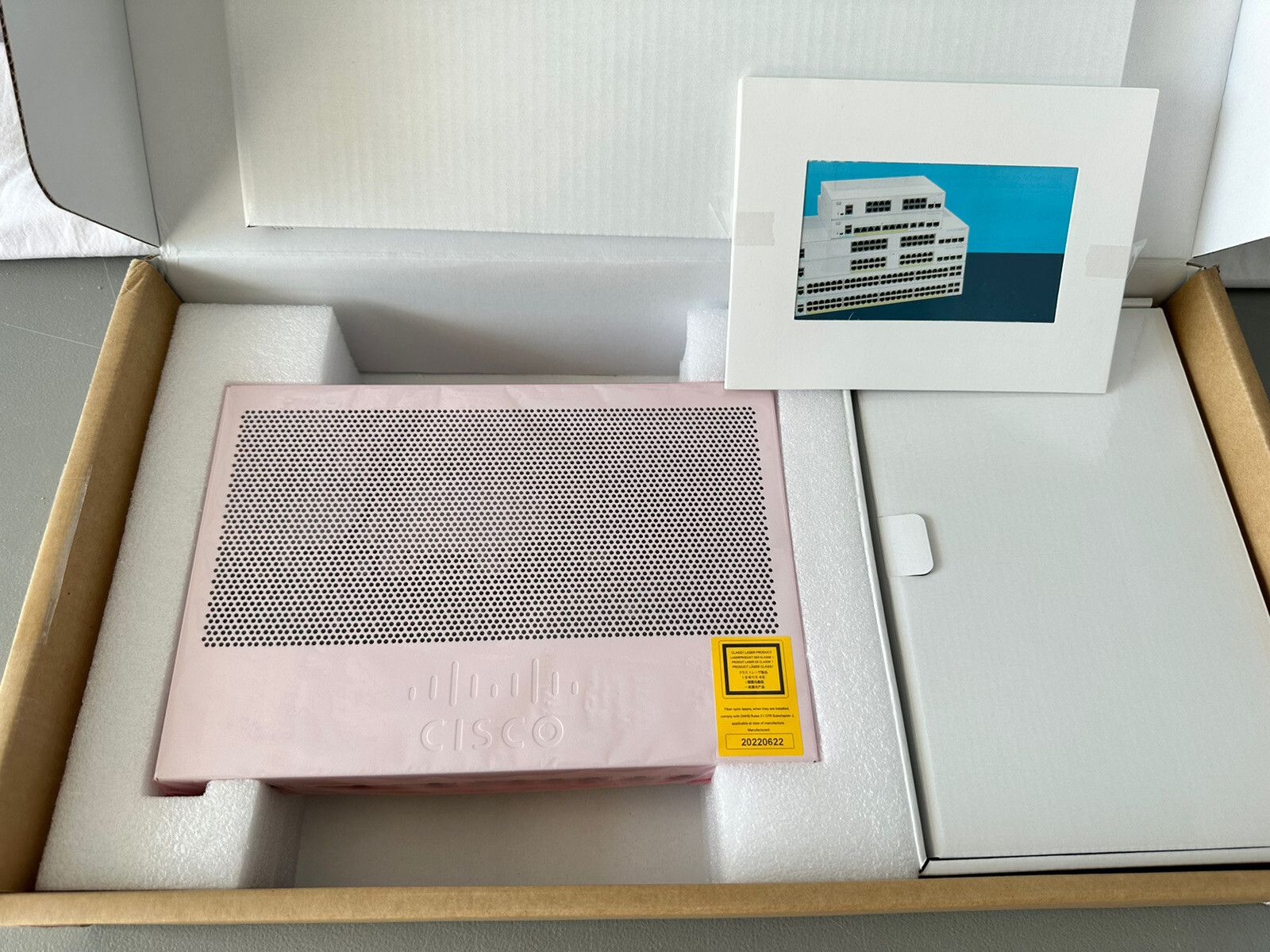

Quickly expand your business's network capacity to support high-speed connected devices with theCBS350-8T-E-2G 8-Port Gigabit Managed SwitchfromCisco. This managed rackmount switch features eight Gigabit Ethernet ports that work with compatible wired devices such as computers, network attached storage, and more. There are also two 1GbE fiber SFP / copper RJ45 combo ports available for high-speed uplinks. Its extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight port groups for multi-Gig connections to compatible devices. Its 20 Gb/s switching capacity and 14.88 Mpps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS350-8T-E-2G and its connected devices. The fanless design helps to reduce power consumption while allowing the switch to operate silently in the background.
PerformanceThe CBS350-8T-E-2G is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 20 Gb/s switching capacity and 14.88 Mpps forwarding rate.Extensive Security
Support for features such as IEEE 802.1x and port security limits access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.IPv6 SupportThe Cisco CBS350-8T-E-2G switch supports allows you to evolve your network using the IPv6 standard while remaining compatible with previous-generation IPv4 networks.Layer 3 Static RoutingDynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch's internal routing and dedicate your router to external traffic and security to help your network run efficiently.True StackingReduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.Compact DesignWith a sleek and compact 1 RU design, the CBS350-8T-E-2G can fit into wiring closets and other installations within retail stores, offices, and other businesses.Energy EfficientSupport for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.InterfacesInputs/Outputs8 x10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP)
1 xMicro-USBProtocolsLayer Services SupportedLayer 2 Support, Layer 3 SupportSupported ProtocolsHead-of-Line (HOL) Blocking
IGMP Snooping
IPv4
IPv6
Link Aggregation
MAC Filtering
Port Mirroring
RADIUS
SNMPv1
SNMPv2c
SNMPv3QueuingStrict Priority, Weighted Round Robin (WRR)Jumbo Frames Support9000 BytesMAC Address Table Size16KMulticast Groups2000VLAN IDs4094SecuritySecurity FeaturesDoS Attack Prevention
RADIUS Authentication
Storm ControlAccess Control List1024IP Interfaces128Static Routes990SNMP Support1, 2c, 3StandardsRFCRFC 4330Supported IEEE Standards802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3an, 802.3az, 802.3u, 802.3x, 802.3zPerformanceForwarding Rate14.88 MppsSwitching Bandwidth20 Gb/sPriority Queues8Packet Buffer1.5 MBComputerFlash Memory256 MBProcessor800 MHz ARMMemory512 MBElectricalPower Draw12.56 W (Max)AC Input Power100 to 240 VAC, 50 / 60 HzPower Supply TypeExternalEnvironmentalOperating Temperature27 to 82°F / -5 to 50°COperating Humidity10 to 90%Storage Temperature-13 to 158°F / -25 to 70°CStorage Humidity10 to 90%GeneralCooling SystemPassiveMean Time Between Failures (MTBF)2,171,669 HoursIndicator LightsLink/Activity, Speed, SystemRack Form Factor1 RUDimensions10.6 x 7.3 x 1.7" / 268 x 185 x 44mmWeight3.06lb / 1.39kgPackaging InfoPackage Weight6.53 lbBox Dimensions (LxWxH)21.4 x 11.7 x 4.2"Fast ShippingWe get your order shipped out within 1-business day and delivered to your doorstep as quickly as possible.Competitive PricingWith our dynamic pricing model, our prices are always competitive. Rest assured that you're getting a good deal when purchasing with us.30-day Money Back GuaranteeWe are committed to making sure that you leave satisfied. If you're unhappy with the product, you may return it for your money-back or a replacement within 30 days.** If the item is damaged during shipping, the buyer will be required to have the package inspected, Photographed & verified by Shipper before returning for refund.Returns:We photograph each item individually, unless otherwise stated in the descriptions. (Descriptions) are built from the manufacture provided information and specifications! We describe each item truthfully using thesespecs and details NOTHING more or less. We will always try to work out any issue because westrive to have only satisfied customers! Our response rating supports that!International Buyers will pay full return shipping unless shipper has caused damage.. See Above**.
