The kit includes one expansion base board + one external adapter card + two 8654-8i data cables.Please install the radiator before powering on! Otherwise, the card may not be recognized or even burned out!Please install the radiator before powering on! Otherwise, the card may not be recognized or even burned out!The V100 GPU is a product released in 2017. It may have issues with certain current newer platforms, such as being unable to recognize dual cards, Windows 10/11 driver issues, and insufficient device resources. It is recommended that players search for relevant videos on Bilibili to have a comprehensive understanding of the V100 GPU application before placing an order.When using, please keep the connector cover properly and avoid losing it. The connector structure is delicate and prone to damage.The screw holes marked in red on the example picture are prohibited from being screwed into. This may damage the V100 graphics card.
Note: The 24-pin interface must be powered. The 2 x CPU 8-pin and 2 x GPU 8-pin connectors can be used for combined power supply or for full power connection.AT/MT DIP switch:MT - Manual mode: The power of the baseboard is controlled by the ON/OFF DIP switch. AT - Automatic mode: Follows the power-on of the mainboard; when the mainboard powers on, the baseboard starts; when the mainboard powers off, the baseboard shuts down. ON/OFF DIP switch: Effective in MT/manual mode, can control the start of the baseboard - ON; shutdown - OFF. In AT/automatic mode, the ON/OFF DIP switch is ineffective.Two 8-pin power supply interfaces for CPU and two 8-pin interfaces for GPU. At least two of these power supply interfaces should be connected. You can connect two or more of them or use all of them. The two types of power supply interfaces can be mixed and connected together.

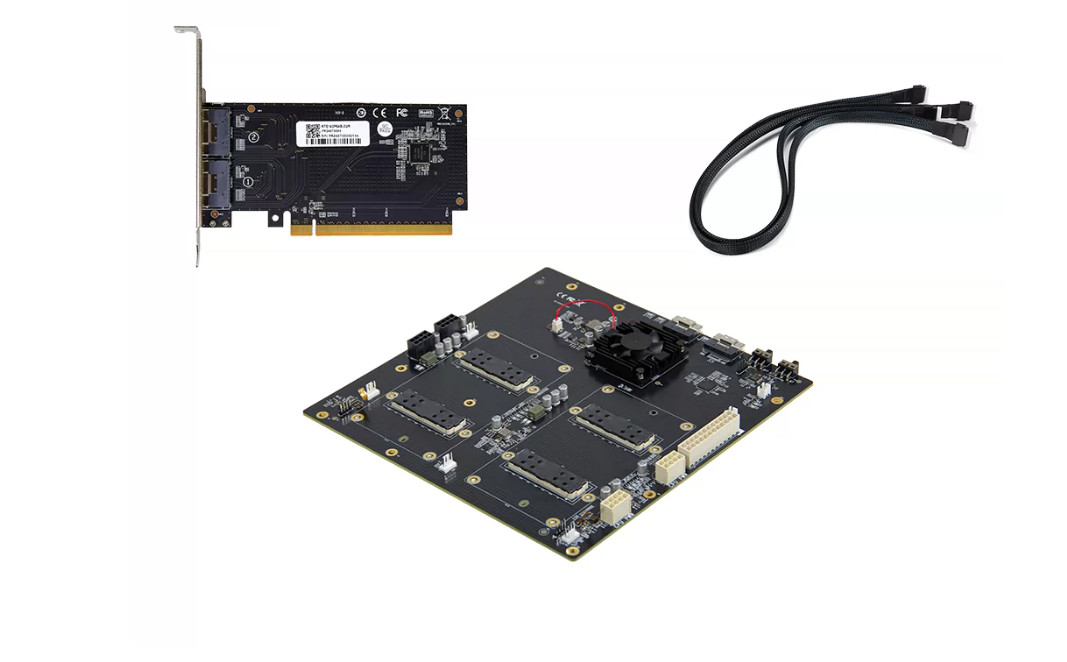

1PCS PEX8749 V100 2*SXM2 CARD
2PCS SFF-8654 TO SFF-8654 cable
1PCS Built-in PCI-E X16 TO SFF-8654
NVIDIA v100 sxm2 graphics card integrated with 300G nvlink interconnect
dual card sxm2 adapter board without splitting
PEX8749 expansion chip eliminates the hassle of splitting
Connect 1 X16 uplink to the motherboard and expand 2 downlink SXM2!
NVLink 300G！ 300G！300G！
Board size 170 * 236 (standard matx screw hole position)
Support host power on follow!!
Support fan temperature control management!!
Support GPU 8Pin and CPU 8Pin hybrid power supply!!
The base plate adopts standard M-ATX hole positions, which are easily compatible with ATX small chassis on the market!The power supply adopts ATX power supply mode, with ATX24Pin+2 CPUs 8Pin power supply, providing sufficient power for the motherboard!
Considering the player's computing power cabinet application, it supports pairing with our store's adapter card to enable the host to follow the power on, while retaining manual power on mode and button insertion!
The motherboard supports x16 and x8 modes, and even after the motherboard is disassembled, x8x8 can be used to move the motherboard
Both PCIe 3.0 and 4.0 motherboard platforms can be used
Option 1: The motherboard has 2 or more PCIe x16 signals
300G SXM motherboard+2 sets (adapter card+2 data cables), operating in x16+x16 mode;
Option 2: The motherboard only has one PCIe x16 signal (supports splitting)
300G SXM motherboard+1 set (adapter card+2 data cables), running in x8+x8mode;
Option 3: The motherboard has one PCIe x16 signal (does not support splitting)
300G SXM motherboard+1 PEX expansion card+4 data cables, operating in x16+x16 mode;Hello dear customer,
