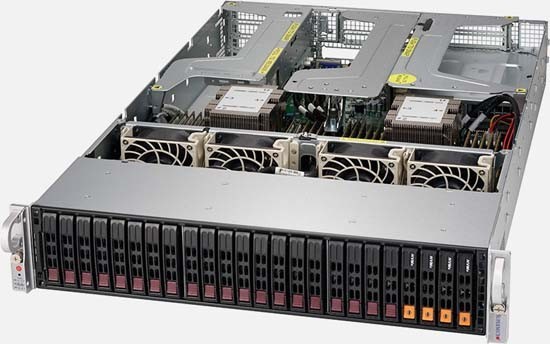

NEW Supermicro SuperServer SYS-2029U-E1CR4 24-Bay 4xNVME 2xScalable 2nd Gen CTOChassis P/N: CSE-219System Model:SYS-2029U-E1CR4
NEW
3 Year Warranty IncludedConfigure-to-Order CTO - No Processors, No Heatsinks, No Memory, No Hard Drives, No Power Supplies IncludedIncluded:

• 1 x NEW Supermicro SuperServer SYS-2029U-E1CR4 24-Bay 4x NVME 2x Scalable 2nd Gen CTO
• 2 x Redundant Power Supplies PSU Slots
• 4 x Fan Modules -FAN-0118L4
• 1 xBackplane - 24-port 2U Support Up To 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 Storage Devices-BPN-SAS3-216EL1-N4
• 24 x caddies
• Motherboard - SupermicroX11DPU
• 2U Ultra Riser Intel i350AM4 with 4x1GbE RJ45 ports 1xPCI-E x8 1xPCI-E x16 1xPCI-E x8 (in x16 slot) - AOC-2UR68-I4G-P
• Riser Card 1x PCIe X8 Slot -RSC-R1UW-E8R
• Riser Card 4x PCIe X8 Slots -RSC-R2UW-4E8
• 2 x Intel Xeon Scalable 2nd Gen Processors
• 2 x CPU Heatsinks -SNK-P0068PS
• 24 x DDR4 DIMM Slots
• Rail kit
• 2 x power style="box-sizing: border-box; line-height: 0; margin: 0px; display: block; content: "";">Super X11DPUProcessorCPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
  Cores
  • Up to 28 Cores
  Note‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)System MemoryMemory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
  Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
  • 2666 ECC DDR4 NVDIMM
  Note†2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
  ††Cascade Lake only. Contact your Supermicro sales rep for more info.On-Board DevicesChipset
  • Intel® C621 chipset
  SAS
  • SAS3 (12Gbps) via expander + Broadcom 3108/3008 AOC
  Network Connectivity
  • 4x 1GbE LAN ports via Intel® i350 (AOC-2UR68-i4G)
  IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  Graphics
  • ASPEED AST2500 BMC
  Input / OutputSAS
  • 24 SAS3 ports support via expander and storage Add-on Cards
  LAN
  • 4 RJ45 1GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
  USB
  • 3 USB 3.0 ports
    (2 rear, 1 Type A)
  Video
  • 1 VGA Connector
  Serial Header
  • 1 Serial header
  DOM
  • 2 SuperDOM(Disk on Module) ports
  System BIOSBIOS Type
  • AMI 32Mb SPI Flash ROM
  ManagementSoftware
  • Intel® Node Manager
  • Redfish API
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM,SPM,SUM
  • SuperDoctor® 5
  Power Configurations
  • ACPI Power Management
  PC Health MonitoringCPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
  FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
  Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  ChassisForm Factor
  • 2U Rackmount
  Model
  • 17.2" (437mm)
  Height
  • 3.5" (89mm)
  Depth
  • 27.76" (705.3mm)
  Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
  Available Colors
  • Black
  Front PanelButtons
  • Power On/Off button
  • System Reset button
  LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED
  Expansion SlotsPCI-Express
  • 1 PCI-E 3.0 x16 (FH, 10.5" L)
  • 5 PCI-E 3.0 x8 (FH, 10.5" L)
  • 1 PCI-E 3.0 x8 (LP)
  • 1 PCI-E 3.0 x8 (internal LP)


  (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)
  Drive Bays / StorageHot-swap
  • 24 Hot-swap 2.5" drive bays:
    24 SAS3 via opt. AOC
    (4 hybrid ports - opt. 4 NVMe)


  Note: Storage Add-on card is required
  M.2
  • 1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
  System CoolingFans
  • 4 heavy duty 8cm PWM fans
  Shroud
  • 1 Air Shroud
  Power Supply1000W Redundant Power Supplies with PMBusTotal Output Power
  • 800W: 100 – 127Vac
  • 1000W: 200 – 240Vac
  • 1000W: 200 – 240Vdc (for CCC only)
  Dimension
  (W x H x L)
  • 73.5 x 40 x 203 mm
  Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
  • 200-240Vdc / 7 - 5A (for CCC only)
  +12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
  • Max: 83A / Min: 0A (200-240Vdc)
  12Vsb
  • Max: 2.1A / Min: 0A
  Output Type
  • 25 Pairs Gold Finger Connector
  Operating EnvironmentRoHS
  • RoHS Compliant
  Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
  VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£1100 excluding VAT
  VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
