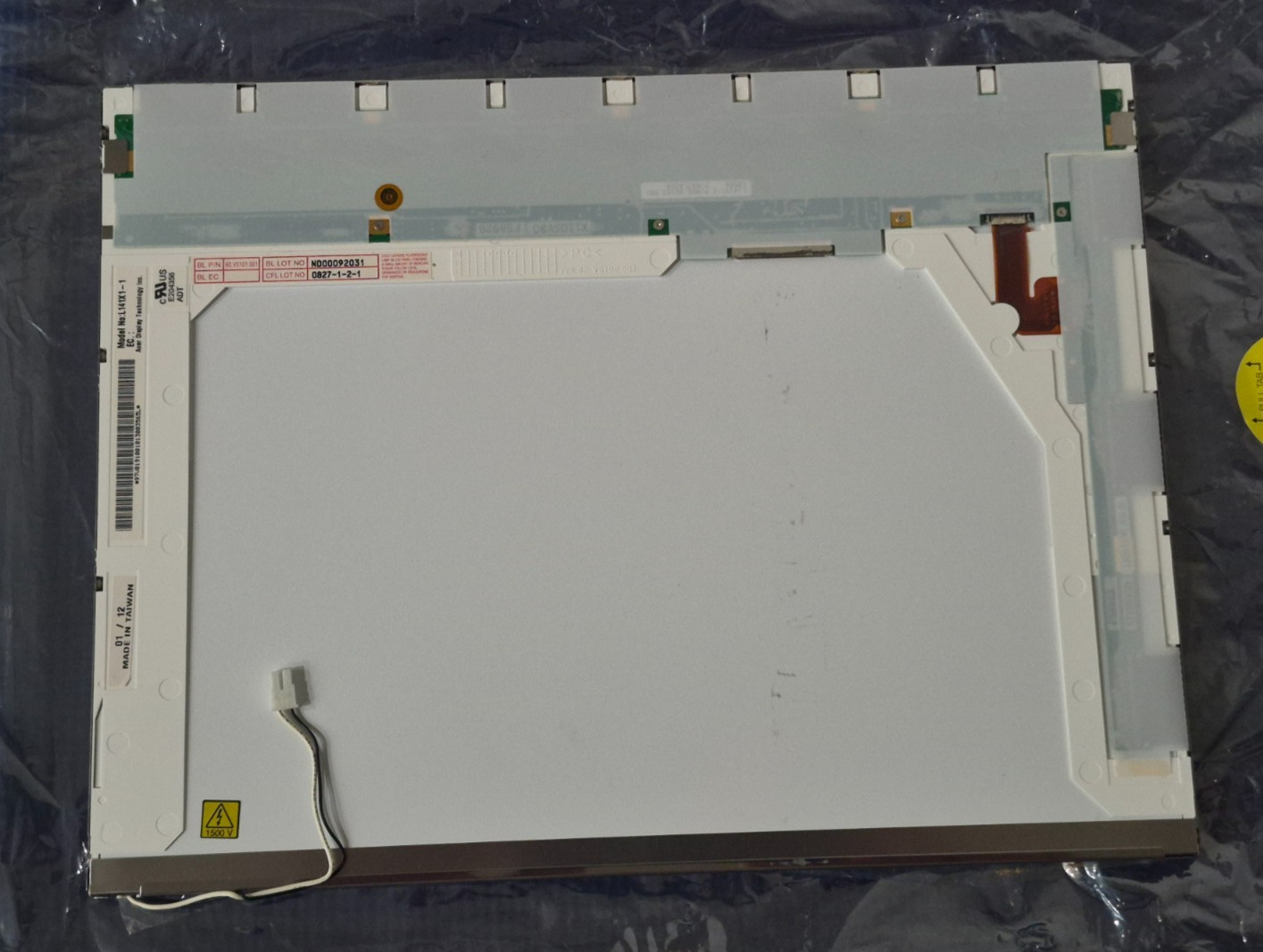

The L141x1-1 is an older 14.1-inch XGA (1024x768) CCFL backlit LCD panel manufactured by ACER.
Because it is an individual component rather than a retail laptop accessory, it doesn’t belong to just one laptop model. Instead, it was used across several brands of late-1990s and early-2000s laptops that utilized 14.1" 4:3 aspect ratio screens with LVDS video interfaces and CCFL inverters.
The L141X1-1 is a 14.1-inch a-Si TFT-LCD display panel manufactured by AUO (commonly used in Acer and other vintage laptops) featuring a 1024 × 768 XGA resolution.
Key Specifications
• Diagonal Size: 14.1 inches• Resolution: 1024 × 768 (XGA), RGB Vertical Stripe• Display Type: TN, Normally White, Transmissive• Brightness: 140 cd/m² (typ.)• Contrast Ratio: 250:1 (typ.)• Display Colors: 262K (47% NTSC)• Viewing Angle: 40/40/15/30 (typ., CR ≥ 10)• Response Time: 30/30 ms (typ., Tr/Td)• Outline Dimensions: 298.5 (W) × 226.5 (H) × 6.4 (D) mm• Active Area: 285.696 (H) × 214.272 (V) mm• Weight: 535g (typ.)• Refresh Rate: 60Hz• Backlight: 1-lamp CCFL (Without driver)• Interface: LVDS (1 channel, 6-bit) with a 20-pin connector• Input Voltage: 3.3V (typ.)• Operating Temperature: 0 ~ 50 °C
Known Compatible Laptops & Cross-References
While a complete master list of every vintage model is rare, documentation shows the following specifics:
The following laptops natively shipped with or directly document compatibility with the ADT L141X1-1 display:• Acer TravelMate 200 Series (specifically confirmed for the base Acer TravelMate 200)• Acer TravelMate 210• Acer TravelMate 220• Acer TravelMate 260
• Toshiba Satellite Pro Series: Satellite Pro 4280XDVD.• Compaq Presario / Armada Series: This panel is a direct cross-reference and interchangeable replacement for Compaq part numbers 179540-002, 179540-001-LP, and 142306-002, which were widely used in older 14.1" Compaq laptops.• NEC Versa Series: It was used internally in various legacy NEC Versa laptops featuring 14.1-inch XGA displays.
Directly Compatible Screen Equivalents
If you are looking to replace this screen or find a laptop that fits it, it is fully interchangeable with the following alternate panel models:
• NEC NL10276BC28-11E• NEC NL10276BC26-11E• NEC NL10276BC28-11B
The following vintage 14.1" XGA panels share the same 20-pin LVDS interface, form factor (Wedge/PCBA Bent), and CCFL layout, making them standard swap-in alternatives:
• LG Philips / LG Display: LP141X1• Sharp: LQ141X1LH63, LQ141X1LS01• Acer / AUO Variants: L141X1-1A-R
