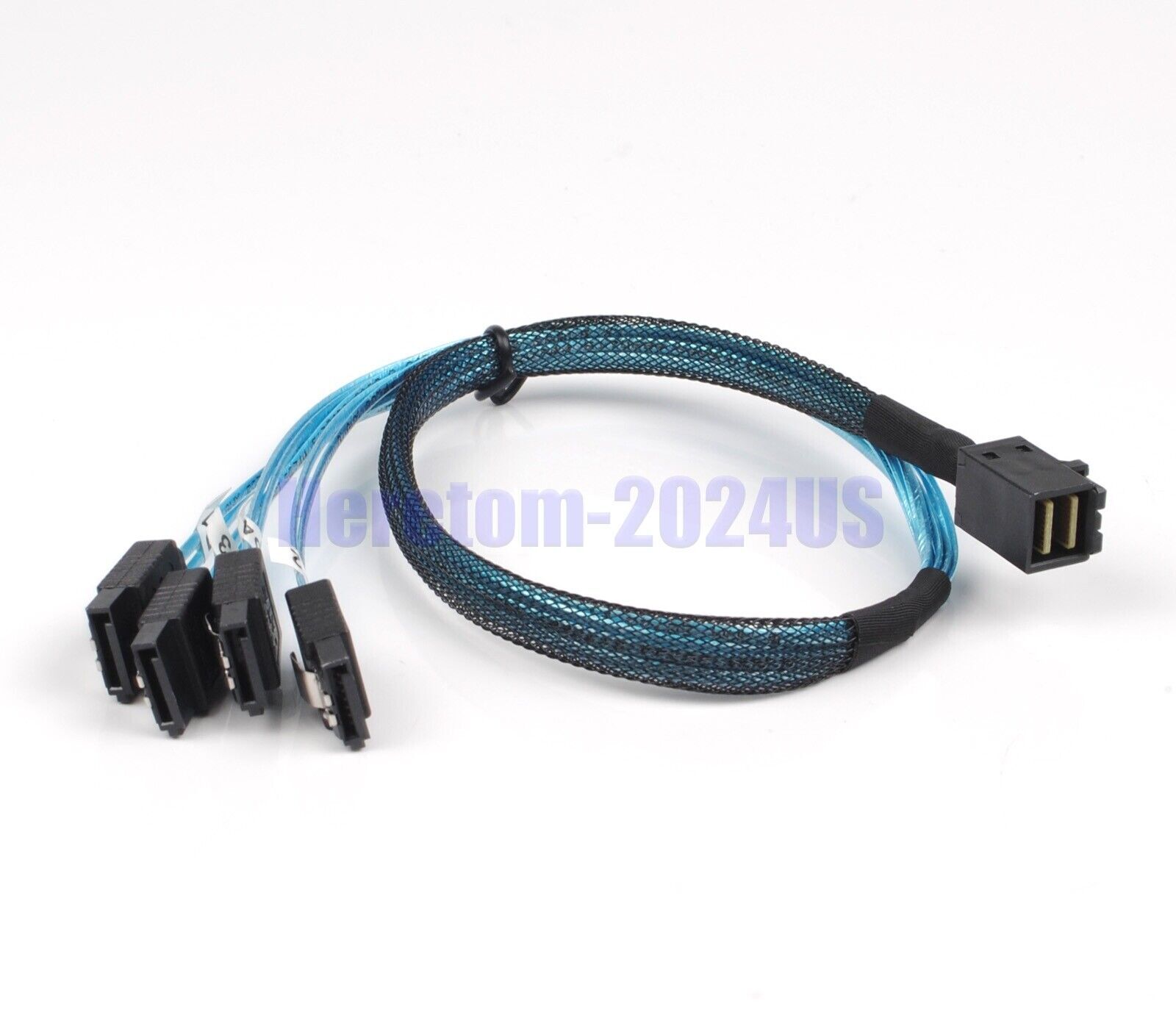

Mini SAS SFF-8643 To 4 SATA 7pin Hard Disk 6Gbps Data Server Raid Cable 0.5M/1M
Price: US $13.49
SAFE & SECURE SHOPPING 100% SATISFACTION GUARANTEED FAST SHIPPINGMini SAS SFF-8643 To 4 SATA 7pin Hard Disk 6Gbps Data Server Raid Cable 0.5M/1M

Product Description

Please note: This mini SAS (SFF-8643) TO 4x SATA cable, SFF-8643 is host, connect to the Motherboard or RAID controller with mini SAS ports. 4x7pin SATA is the target, connect to the hard drives with SATA port


Before you buy this cable, Please make sure the Mini SAS (SFF-8643) on your motherboard or RAID controller. If the Mini SAS(SFF-8643) on your backplane, this cable will not work with them


Sff-8643: the new connector uses less PCB real estate and allows higher port density for internal hosts and devices. Hybrid versions of these new cables will allow for a smooth transition from 6GB to 12GB


Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and Fast data access Cable length 0.5M or 1M


Applications

Data/Communications

1. RAID (Redundant Array of Independent Disks )

2. Workstations

3. Rack-mount server

4. Servers

5. Storage rack


Mechanical Performance

Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 100 N maximum for HD Mini SAS connector.

Unmating Force: 50 N maximum for HD Mini SAS connector..

Mating Force: 45 N maximum for SATA connector.

Unmating Force: 10 N maximum for SATA connector.


Electrical Performance

1.Contact Current Rating

0.5Amperes maximum per pin when mated.

2.Voltage Rating

30VAC per contact when mated or unmated.

3.Contact Resistance

30mohm max. initial, 15mohm maximum after stress test.

4.Dielectric Withstanding Voltage

500 VAC for 1 minute no breakdown.

5.Insulation Resistance

1000 Mohm minimum.


Signal Integrity

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25 to 40 ohms

5. Insertion loss: -6dB maximum up to 4.5Ghz;

6. Crosstalk: -26 dB up to 6Ghz;


Conditions: New

Package Quantity: 1x 0.5m or 1m cable as your selection
