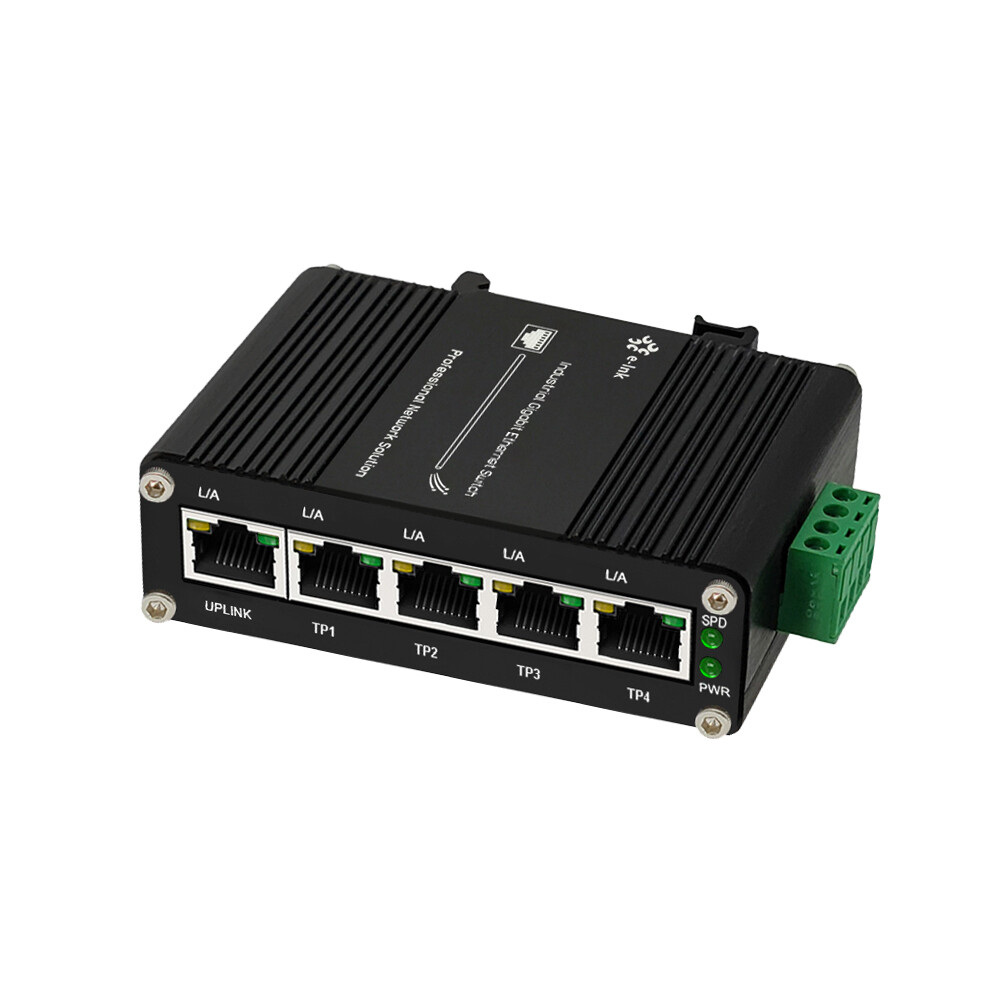

OverviewThis Mini Ethernet (PoE ) Switch supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports bothhalf-duplex and full-duplex mode.Features

• The Industrial 5 ports 10/100/1000M Switch have5 RJ45 ports 10/100/1000Mbps half/full duplex.

• The 5 ports poe switch Max Packet Length is9K Bytesand the Switch Capacity is10Gbps/non-blocking.

• Single port power is 30Wand 4 poe ports isMaximum 120W.

• It support12~48V DCInput and boost to48V output. It will solve the problem that you only have12V or 24Vcentralized power supply or solar power supply. And also supportRedundant power.lt's better to adapt unstableworking voltage.It uses lndustrial grade componentsandaluminum housing,which is durable and corrosion resistant.The Industrial switch size is95x70x29mm(3.74x2.76x1.15in),weight is0.25kg(0.551b).Its size is about half that of the mobile phone, which can save more space.

• Wide range temperature :-40°C to 75°C(-104°F to 167°F).

• 6KV lightning protectionandIP40 protection.High quality aluminum alloy hasstrong heat dissipation,Heat is dissipated through the surface.

• The 5 port ethernet Switch comes with35mm Din-rail Clip and Wall mount accessories.

• No fan, No noise.

Specifications

--Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control, IEEE802. 3af (PoE),IEEE802. 3at (PoE+)

--Single-port Power:30W(POE Type switch)
--Casing Material: Aluminum Case
--Input Power: 12~48V DC (Terminal Block)
--Max Packet Length: 9K Bytes
--Switch Capacity: 10Gbps/non-blocking
--Transmission Distance:100m
--Power Consumption: < 6W(non-poe)
--Mounting Options: DIN-Rail / Wall-mount
--Operating Temperature: -40°C to 75°C (-104°F to 167°F)
--Dimensions (WxDxH): 95 x 70x 29mm(3.74 x 2.76 x 1.15in),weight:250g(0.55lb)
--Protection grade: IP40

Application

Mini industrial 5 ports gigabit ethernet (PoE) switch can be used in the field of video surveillance and network solution

Package

• 5-Port Mini Industrial Ethernet Switch x1（Including 4-pin terminal block）

• Wall Mounting Kit x1

• Gigabit Ethernet Switch User Manualx1

Note

Since the power supply is not included, it needs to be purchased separately.Please use power supply above 12V/1A.
