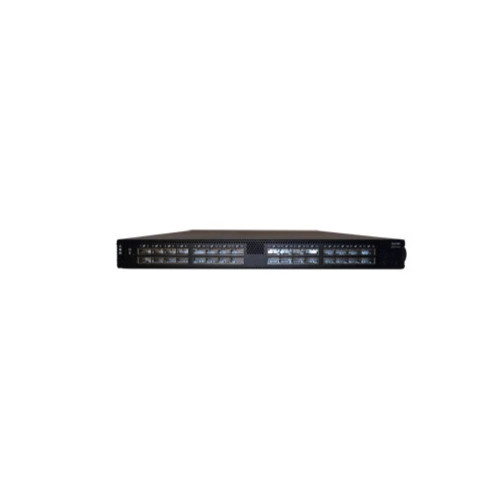

Mellanox Technologies - MSN3700-CS2F - Mellanox Spectrum-2 MSN3700-CS2F Ethernet
Price: US $18120.00
Core Specifications

  • Model: MSN3700-CS2F

  • Form Factor: 1U rack-mountable

  • Ports:

    • 32 x 100GbE QSFP28 ports

    • Can be split to 64 x 50GbE or 128 x 25GbE using splitter cables

  • Switching Capacity: 6.4 Tbps

  • Forwarding Rate: 4.76 billion packets per second (Bpps)

  • Latency: 400 ns

  • Jumbo Frame Support: Up to 9216 bytes

  • MAC Address Table Size: 512K entries

  • System Memory: 8 GB

  • SSD Storage: 32 GB

  • Packet Buffer: 42 MB

  • CPU: Dual-core x86

Electrical and Thermal Specifications

  • Power Consumption: Approximately 165 W

  • Power Supplies: 2 x AC (1+1 redundant)

  • Input Voltage: AC 100–264 V (50/60 Hz)

  • Operating Temperature: 0°C to 40°C

  • Non-operating Temperature: -40°C to 70°C

  • Humidity:

    • Operating: 5% to 85% relative humidity

    • Non-operating: 5% to 90% relative humidity

  • Dimensions: 44 mm (H) x 428 mm (W) x 559 mm (D)

  • Weight: 11.1 kg

Software and Management Features

  • Operating System: Mellanox Onyx

  • Management Protocols:

    • CLI

    • HTTP/HTTPS

    • SNMP v1/v2/v3

    • Telnet

  • Management Ports:

    • 1 x RJ45 Serial Console

    • 1 x USB

  • Airflow: Back-to-Front (P2C)

  • Fan Modules: 4 x Hot-swappable

  • Rack Mounting: Rail kit included

Layer 2 and Layer 3 Features

  • Layer 2 Features:

    • IEEE 802.1Q (VLAN)

    • IEEE 802.3ad (LACP)

    • IEEE 802.1w (Rapid Spanning Tree Protocol)

    • IEEE 802.1x (Port-based Network Access Control)

    • IEEE 802.1ab (LLDP)

    • IEEE 802.1Qbb (Priority-based Flow Control)

    • IEEE 802.1Qaz (Enhanced Transmission Selection)

    • IGMP Snooping

    • Port Mirroring

    • sFlow

    • Access Control Lists (ACLs)

    • RADIUS and TACACS+ Authentication

    • DHCP Relay

  • Layer 3 Features:

    • Static IPv4 Routing

    • OSPFv2

    • BGP

    • VRRP

    • IPv6 Support

Ideal Applications

The MSN3700-CS2F is suitable for high-performance networking environments, including:

  • Data Center Spine and Top-of-Rack (ToR) deployments

  • High-Performance Computing (HPC) clusters

  • Software-Defined Networking (SDN) infrastructures

  • Cloud and Virtualized Data Centers

  • Storage Area Networks (SANs)

  • Enterprise Core and Aggregation Layers
