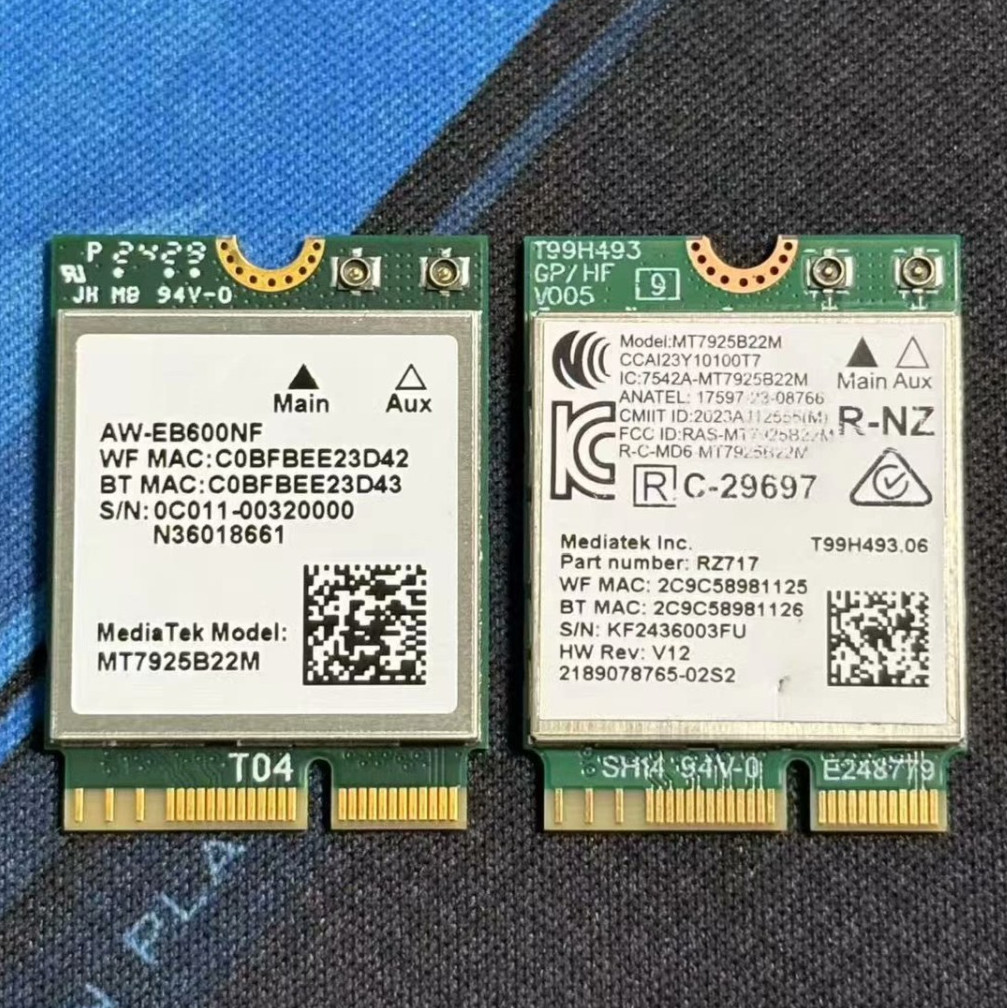

Please note: one of the two OEM module versions will be selected and shipped at random. Both use the same MediaTek MT7925B22M chipset and offer essentially the same performance.
MediaTek MT7925B22M Wi-Fi 7 and Bluetooth 5.4 M.2 Wireless Module
Upgrade compatible laptops, mini PCs and embedded computing systems with next-generation wireless connectivity using the MediaTek MT7925B22M. This compact M.2 wireless module combines tri-band Wi-Fi 7 with Bluetooth 5.4 and Bluetooth Low Energy, providing high-speed networking, improved connection reliability and efficient support for modern wireless peripherals.
The MT7925B22M supports the 2.4 GHz, 5 GHz and 6 GHz frequency bands, allowing a compatible system to select the most appropriate band according to range, network congestion and performance requirements. With a 2×2 transmit-and-receive architecture, channel bandwidths of up to 160 MHz and a maximum theoretical wireless transfer rate of approximately 2,882 Mbps, the module is suitable for demanding applications such as high-resolution streaming, cloud gaming, video conferencing, large-file transfers and low-latency network access.
Advanced Wi-Fi 7 Technology
The MT7925B22M supports the latest IEEE 802.11be Wi-Fi 7 standard, while maintaining backward compatibility with earlier IEEE 802.11a/b/g/n/ac/ax wireless networks. This enables the module to connect to both current Wi-Fi 7 infrastructure and existing Wi-Fi 6E, Wi-Fi 6, Wi-Fi 5 and legacy access points.
Its Wi-Fi 7 capabilities include:
- 2×2 MIMO wireless architecture
- Up to 160 MHz channel bandwidth
- 4096-QAM modulation
- Multi-Link Operation, including eMLSR
- Multi-RU operation
- OFDMA and partial resource-unit operation
- Preamble puncturing support
- Tri-band 2.4 GHz, 5 GHz and 6 GHz connectivity
These technologies are designed to improve spectrum utilisation, throughput and connection stability, particularly in busy wireless environments containing multiple networks and connected devices. Multi-Link Operation can allow compatible equipment to use or transition between available wireless links more efficiently, while Multi-RU and preamble puncturing help maintain performance when part of a channel is affected by interference.
Bluetooth 5.4 and Bluetooth Low Energy
Integrated Bluetooth 5.4 connectivity enables the MT7925B22M to connect with wireless headphones, speakers, keyboards, mice, game controllers and other Bluetooth-enabled equipment. Bluetooth Low Energy support is suitable for peripherals requiring efficient power consumption, while compatible operating systems and devices may also support features such as Bluetooth LE Audio.
MediaTek’s Wi-Fi and Bluetooth coexistence technology is designed to help both wireless functions operate reliably when sharing the 2.4 GHz spectrum, reducing interference between simultaneous Wi-Fi and Bluetooth connections.
Compact M.2 Design
The MT7925B22M is designed as a compact M.2 2230 wireless module for systems equipped with a compatible M.2 wireless-card slot. Its small form factor makes it suitable for:
- Notebook and gaming computers
- Mini PCs and compact desktops
- Industrial computers
- Embedded computing platforms
- Compatible workstation and OEM systems
The module uses a two-antenna configuration to provide 2×2 wireless operation. Both antennas must support the required operating bands to obtain full tri-band functionality, particularly when using the 6 GHz band.
Technical Specifications
Manufacturer: MediaTek
Model: MT7925B22M
Product type: Wi-Fi and Bluetooth combination module
Wireless generation: Wi-Fi 7
IEEE standards: 802.11a/b/g/n/ac/ax/be
Frequency bands: 2.4 GHz, 5 GHz and 6 GHz
Spatial configuration: 2×2 transmit/receive
Maximum channel bandwidth: 160 MHz
Maximum theoretical Wi-Fi transfer rate: Up to approximately 2,882 Mbps
Wi-Fi 7 modulation: Up to 4096-QAM
Advanced wireless features: MLO/eMLSR, MRU, OFDMA, partial RU and preamble puncturing
Bluetooth: Bluetooth 5.4 and Bluetooth Low Energy
Bluetooth audio: LE Audio support subject to operating-system and device compatibility
Form factor: M.2 2230 wireless module
Antenna configuration: Two antennas required
Host connectivity: PCI Express and USB-based connectivity, depending on system implementation
Intended applications: Laptops, mini PCs, desktops and embedded systems
Compatibility Notice
Before purchasing, check that the target device has:
- A compatible M.2 wireless-card slot rather than an M.2 storage-only slot.
- Support for standard PCIe/USB wireless modules rather than a proprietary interface.
- Two compatible antenna cables.
- Operating-system drivers for the MediaTek MT7925 series.
- BIOS or firmware support for replacement wireless modules.
- A Wi-Fi 7 or Wi-Fi 6E router when 6 GHz operation is required.
Availability of the 6 GHz band depends on the operating system, driver version, router capabilities and local wireless regulations. Bluetooth features may also vary according to the operating system and connected peripheral. Dell, for example, notes that Bluetooth functionality can vary by operating system.
Performance Notice
The stated 2,882 Mbps figure is a theoretical maximum wireless link rate. Actual network throughput will be lower and will depend on the router, channel width, signal strength, antenna design, interference, operating system, driver version and network conditions.
For full Wi-Fi 7 performance, the module must be used with a compatible Wi-Fi 7 access point, appropriate drivers and supported operating-system features. Connection to older routers remains possible, but performance will be limited to the capabilities of the connected network
