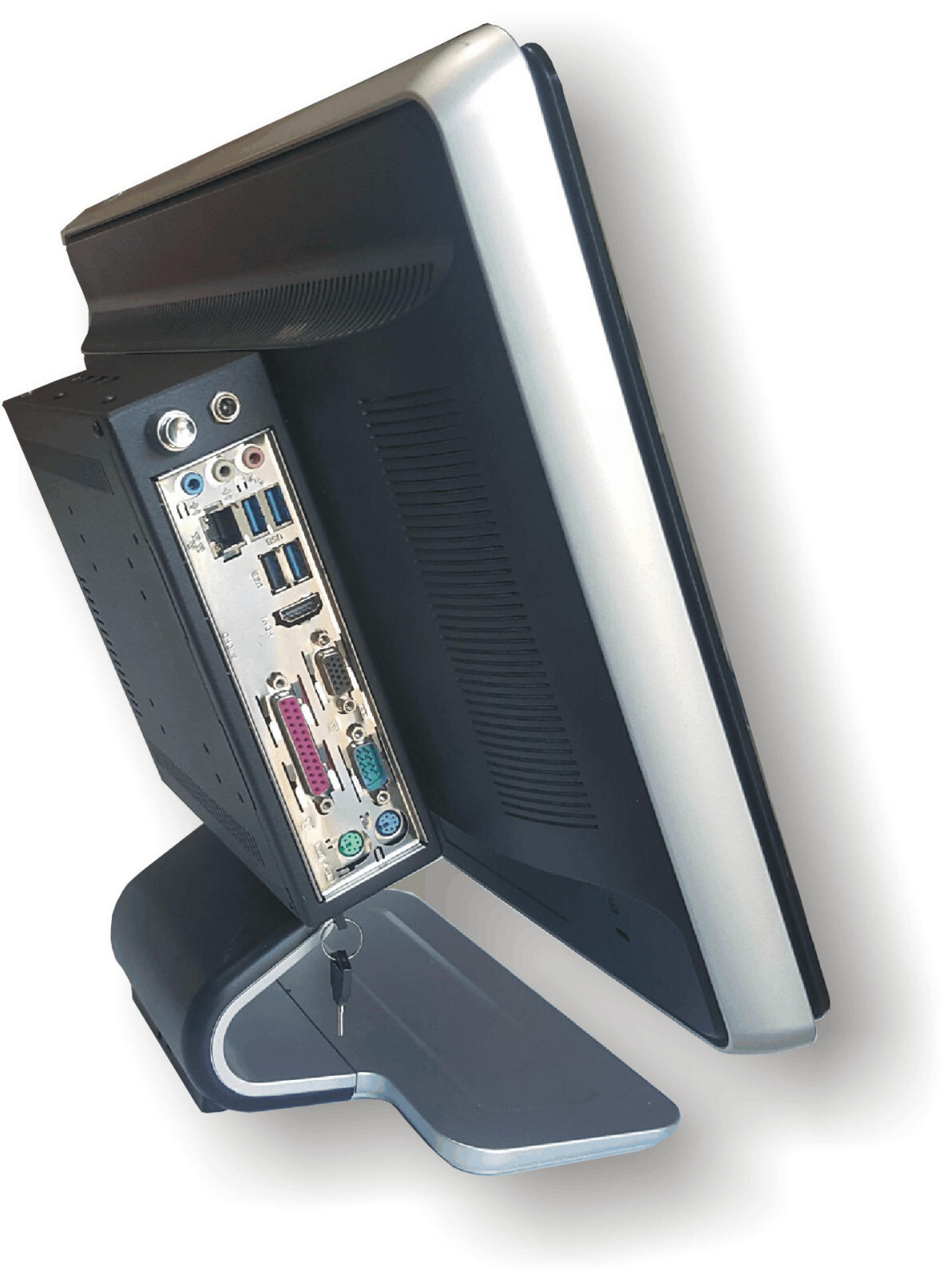

Fully functional Mini Computer with Intel mini-ITX motherboard, 15" TFT LCD Monitor, slim wired USB Keyboard (5" x 15") and mini wireless mouse. CPU built with new and reconditioned parts. Monitor reconditioned. CPU box mounted at back of Monitor in piggyback for small footprint as a quite small All-in-One machine. Machine secured with Keylock to prevent unauthorized use in organizational environments. All modular equipment for expeditious maintenance by component substitution. A good player for low-end applications such as internet browsing, office apps, casual computing, etc. Particularly suitable for desktops where space is at a premium. A low-end that will strainlessly do the job.
You will receive:
(1) Computer CPU box – w. permanently functional Windows 10 Pro for your use, but no activation. Activation optional.
(2)Pristine Monitor – 15" Flat Panel LCD Monitor – Reconditioned pre-owned.
(3) Wired Keyboard and Wireless optical Mouse – Reconditioned Pre-Owned
Quality control: All tested perfectly working.
OPTIONAL EXPANSIONExpandable to (1) additional pluggable external COM (RS-232) port ($10)Expandable to (4) additional pluggable USB 2.0 ports w. 4-port built-in Hub ($20)
Windows license key ($12) or your own.
FEATURES DETAILS
CPU
- Intel® Atom Processor D425KT (1.8 GHz)
Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots – Includes total of 4GB
- Supports DDR3/DDR3L 1866/1600/1333 non-ECC, unbuffered memory
- Max. capacity of system memory: 4GB
- Includes 15" Monitor - Pre-owned Reconditioned
- Integrated Intel® HD Graphics 500: 12 EU's inside (Up to750MHz)
- DirectX 12, Pixel Shader 5.0
- Dual graphics output: VGA D-Sub
- Supports VGA D-Sub with max. resolution up to 1920x1200 @60Hz
Ports & others
- 4 USB 2.0 ports
- 1 x COM serial port on back chassis
- 1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin) and (1) Placeholder on chassis for Chassis fan
- 1 x 24 pin ATX Power Connector with built-in micro ATX power supply
- 1 x Front Panel Audio Connector
- Includes a 256 GB HDD Sata Hard Drive
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and HotPlug
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps
To configure 7.1 CH HD Audio, must use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode) on motherboard, only for internal use, no outside insertion.
BIOS - UEFI
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 compliant wake up events
- Supports jumper-free
- SMBIOS 3.0 support
Power Supply
- (1) Power Supply cube rated for 12V and 2.5A – For CPU Box
Hardware Monitoring
- CPU, Chassis temperature sensing
- CPU, Chassis Fan Tachometer
- CPU, Chassis Quiet Fan (Auto adjust chassis fan speed byCPU temperature)
- CPU, Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design
- Placeholder for one miniature Chassis cooling fan (with3-conductor connector)
WARRANTY
90-day manufacturer warranty. Will either repair or replace defective parts or components. Warranty covers and applies only to returned received equipments with prior notification.
RETURN POLICY
Returns under standard return policy terms. Up to 30 days after receiving the merchandise to enter a return request. Item must be received back within 10 days of return authorization. To avoid a blemish fee, all items must be returned in same original receiving conditions, with all packaging and accessories.
