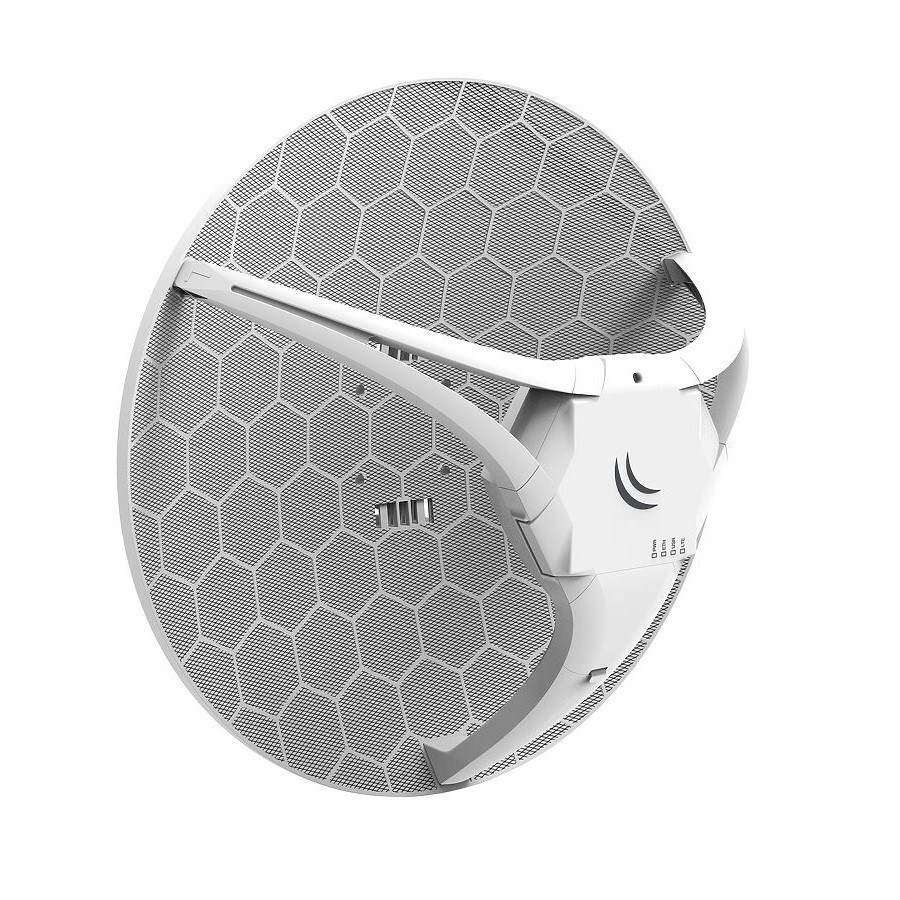

PRODUCT INFORMATIONMikroTik RouterBOARD RBLHGR&R11e-4GLHG 4G kit 21dBi, 64MB RAM, QCA9531 650 MHz CPU, RouterOS L3
LHG 4G kit (RBLHGR&R11e-4G) includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
SPECIFICATIONSSpecifications RBLHGR&R11e-4GCPUQCA9531 650 MHzSize of RAM64 MBStorage 16 MBFlash10/100 Ethernet ports1LTE antenna gain21 dBiAntenna beam width25°LTE category4 (150Mbps Downlink, 50Mbps Uplink)SIM slot1 (Mini SIM)PoE inYesSupported input voltage12 - 57 V (Passive PoE, 802.3af/at)Dimensions391 x 391 x 227 mmOperating temperature-40°C .. +60°C testedLicense level3Operating SystemRouterOSMax Power consumption6 WSupported bandsRBLHGR&R11e-4GLTE (FDD) bands3/7/20/31 (1800/2600/800/450)LTE (TDD) bands41n/42/43 (2500/3500/3700)
