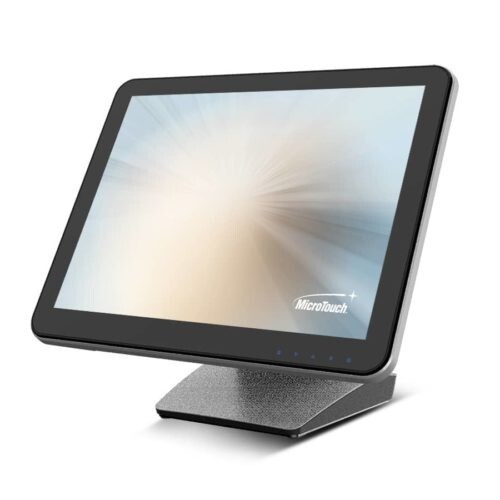

MICROTOUCH, 15'' PCAP DESKTOP MONITOR, 1024 X 768, 400NITS,10 TOUCH POINTS, 1 X VGA, 1 X DP, 1 X HDMI, STAND INCLUDED, 3 YEAR WARRANTY
DT-150P-A1DESCRIPTION

The ultra-modern, unique aesthetic and modular design of the DT-150P-A1 makes it a one-stop-shop solution with optional peripherals for added functionality. This 10-point touch, projected capacitive, solution is great for retail point-of-sale or point-of-service with add-on features like multi-language LCM screen and MSR reader coupled with a durable, diecast aluminum housing construction. The seamless bezel, advanced PCAP technology and rounded aesthetic bridges the gap between daily consumer devices and commercial devices, a step towards commonality and memorable end-user experience.

FEATURED SPECIFICATIONS

• Size: 15" TFT LCD
• Maximum Resolution: 1024 x 768
• Contrast Ratio: 800:1
• Aspect Ratio: 4:3
• Brightness: 400 nits (No Touch), 350 nits (P-CAP)
• View Angle: H:160˚, V:140˚
• Video Port: 1 x VGA, 1 x DP, 1 x HDMI
• Warranty: 3 year

SPECIFICATIONSTOUCH LCD DISPLAY

Touch Screen:ProjectedCapacitive
Touch Points:10
Touch Screen Interface:USB-HID (Type B)

I/O PORTS

Serial Port:–
USB Port:1 x USB 2.0 (Type B) for Touch Interface (USB-HID)
Video Port:1 x VGA (DB15), 1 x DP, 1 x HDMI
Audio Port:1x Audio Line-in
Power Input:1 x 2.1 mm 12V DC Jack

PHYSICAL PROPERTIES

Power Supply:50W (12V, 4.16A) External Power Adaptor
Speaker:2 x 1.5W
HousingColor: Silver
Construction:Aluminum Die-casting, Plastic (ABS), Glass, SECC Metal
Compliance:IP65 Compliant, Rear IPX1
Dimensions (W x H x D) mm:356.1 x 321.9 x 201.4 mm
Net Weight (kg):4.2 kg
Gross Weight (kg):6.8 kg
Carton (W x H x D) mm:470 x 395 x 293 mm
VESA:100 x 100 mm
Ball Drop:–

SAFETY

Certifications:CE(Class A)/FCC(Class A)/LVD(62368)

ENVIRONMENT

Operating Temperature:0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
Storage Temperature:-20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing

OPTIONAL PERIPHERAL NOT INCLUDED

MSR:MSR-150-A1
VFD with Camera:VFDC-150-A1
VFD:VFD-150-A1

LCM:LCM-150-A1
