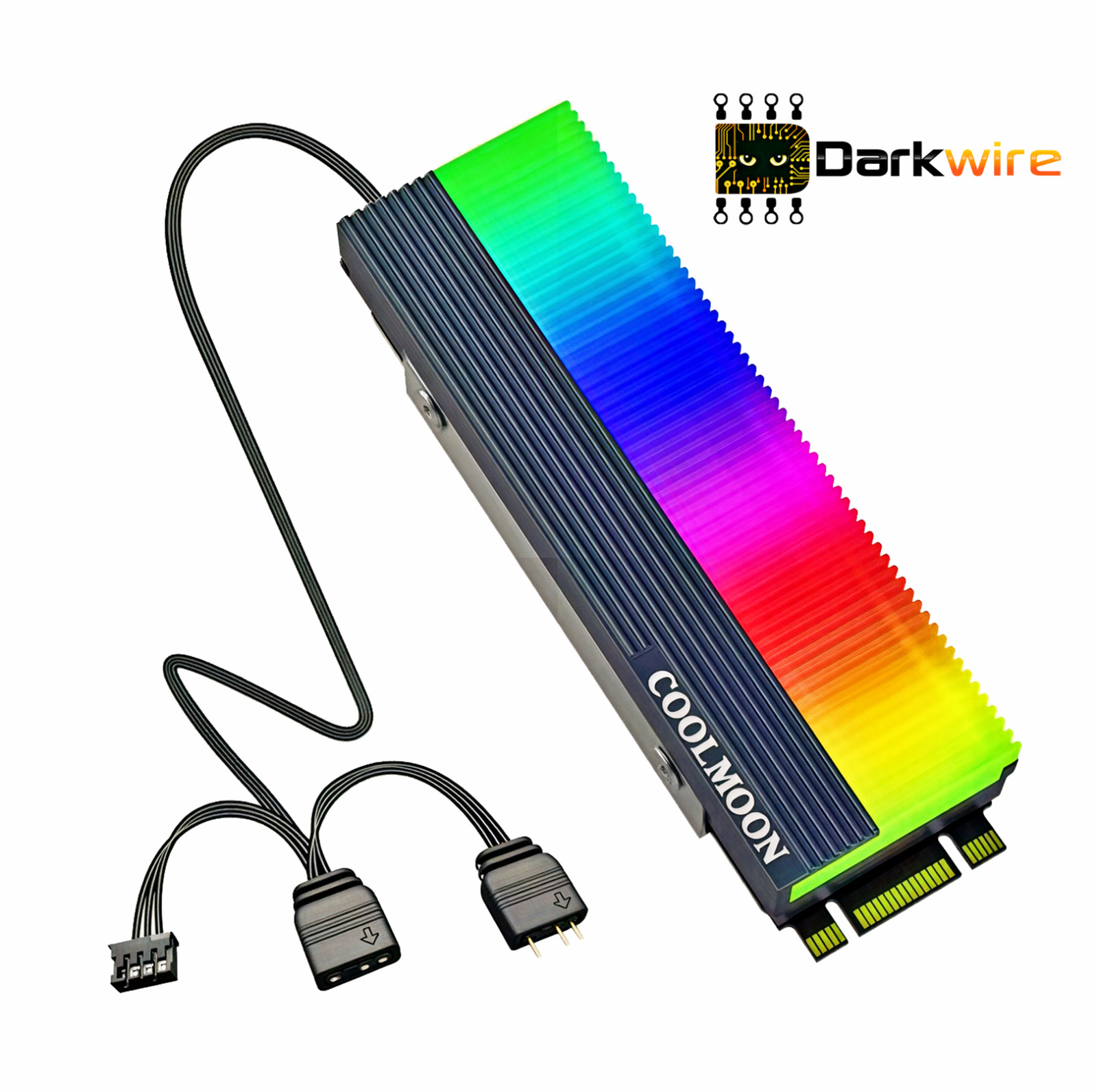

COOLMOON M.2 2280 SSD Heatsink Cooler Solid State Disk Radiator with Thermal Pad - 5V 3PIN ARGBFeatures:1.Efficient Passive Heat Dissipation: Made with aluminum alloy, stainless steel, and silicone pads, this M.2 2280 SSD heatsink cooler effectively solves the problem of M.2 SSD slowing down due to high temperatures, thereby extending its lifespan.2.Dazzling ARGB Lighting: With 5V ARGB motherboard synchronization, this M.2 aluminum heatsink emits colorful lights and allows for programmable custom lighting.3.Standard Thermal Pad: Hard disk heat sink equipped with double-sided thermal silicone pads, installation is easy and it quickly dissipates heat through cold air, reducing the temperature of your SSD and improving its performance.4.Dual Interface Design: M.2 SSD cooling sink feature a 5V 3-pin motherboard synchronization interface and a compact 4-pin controller interface, this heatsink offers strong expandability. The motherboard interface is compatible with 5V ARGB synchronization, and the male-to-female interface can be connected in series, enhancing the scalability of the M.2 heatsink.5.Compatibility: Solid state disk radiator is specifically designed for M.2 2280 SSDs. Please note: Make sure your M.2 SSD has dimensions of 22mm x 80mm, as this heatsink is not compatible with other sizes.
Specification:Type: M.2 SSD CoolerMaterial: AluminumRGB Support: A-RGBPower Interface: 4PIN, 5v-3pin ARGBProduct color: BlackProduct material: ABS + aluminum alloy + stainless steelProduct interface: 5V 3PIN + small 4PINWire length: approximately 420mmScope of application: M.2 2280 SSD solid-state driveProduct size: 73.00x24.00x15.00mmProduct gross weight: 150g
Note:This product does not include SSD; the images are only for display purposes.
Heat dissipation principle:The thermal conductive silicone pad transfers the heat of the M.2 solid-state drive to the top aluminum alloy heat dissipation module and bottom aluminum alloy heat dissipation fins, and then quickly removes the heat through cold air, reducing the temperature of the M.2 solid-state drive and improving operational performance.
Product interfaces:1) 5V ARGB Shenguang synchronization interface: can be connected to the motherboard 5V 3PIN ARGB interface, and multiple male and female interfaces can be connected in series. Supports AURA sync, ASRock Polychrome Sync, RGB 2.0, MSI Light Sync, Bigstar Sync and others.
2) Small 4PIN plug (the tiny plug seen in the photo): This interface is a dedicated interface for COOLMOON brand controllers and does not support direct insertion into motherboards and other devices. Does not impact the use of ARGB at all.If however your motherboard does not have a 5V 3-pin ARGB interface, this heatsink must be used in conjunction with a dedicated COOLMOON controller.Note that testing on this product was done using a CoolMoon Mini ARGB controller.
