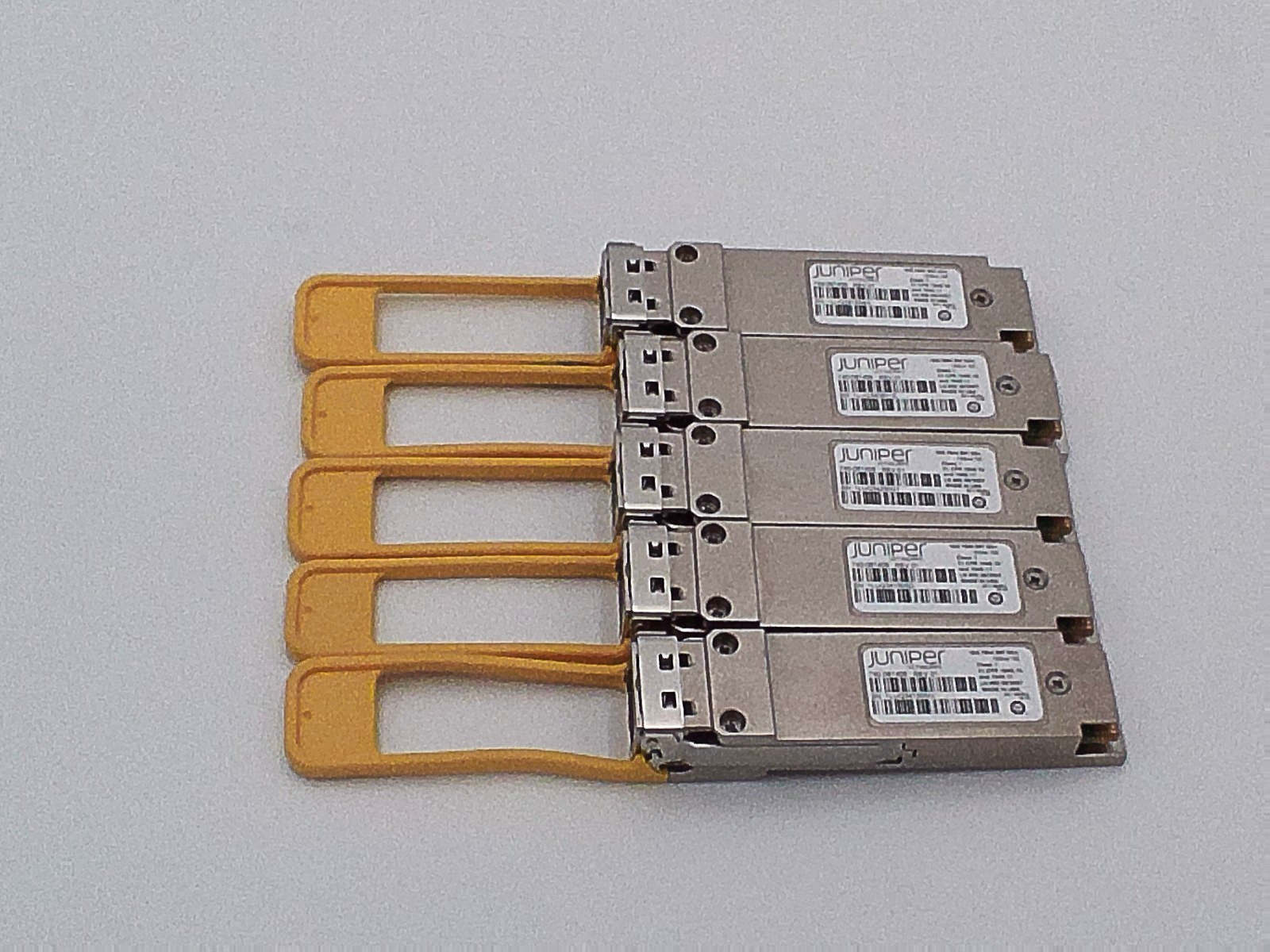

Lot of 5 Juniper Networks QSFP28 100G Base PSM4 SMF optics (740-061406)
Price: US $140.00
The JuniperJNP-QSFP-100G-PSM4transceiver module is a high-performance optical transceiver designed for100 Gigabit Ethernetapplications.This transceiver module is commonly used inData Center Core Networks, ISP, and Mobile Operator applications. It is compliant with QSFP28 Multi Source Agreement (MSA) SFF-8665, 100G PSM4 MSA, and IEEE 802.3bm standards. TECHNICAL SPECIFICATION
Type:QSFP28 form factor
Speed:100 Gigabit Ethernet (can also support 4 x 25 Gigabit Ethernet)
Wavelength:1310nm or 1325nm
Fiber Type:Single-Mode Fiber (SMF)
Distance:Up to 500 meters
Connector:MPO-12 (female MPO/APC)
Digital Optical Monitoring (DOM):Yes, for real-time monitoring of transceiver parameters
Breakout Capable:Yes, using specific MTP-LC breakout cables
Operating Temperature Range:0° C to 70° C
Storage Temperature Range:-40° C to 85° C
Maximum Power Consumption:3.5 W
Receiver Sensitivity (Each Lane):-8.6 dB
Extinction Ratio (Minimum):3.5 dB
Rx Wavelength Bandwidth:95 nm (1260-1355 nm)
Transmitter Wavelength Range:1295 nm through 1325 nm
Transmitter Output Power (Each Lane):-9.4 dBm (minimum) to 2.0 dBm (maximum)
Receiver Input Power (Each Lane):-12.66 dBm (minimum) to 2.0 dBm (maximum)
****PRICE IS FOR 5 UNITS/SFP AS ONE LOT - ANYTHING NOT MENTION/SHOWN IN PHOTOS IS NOT INCLUDED*****
