Logitech ScanMan Plus 200074-00 ISA Controller Board 1989 Vintage Hand Scanner

Logitech ScanMan Plus 200074-00 ISA Controller Board 1989 Vintage Hand Scanner

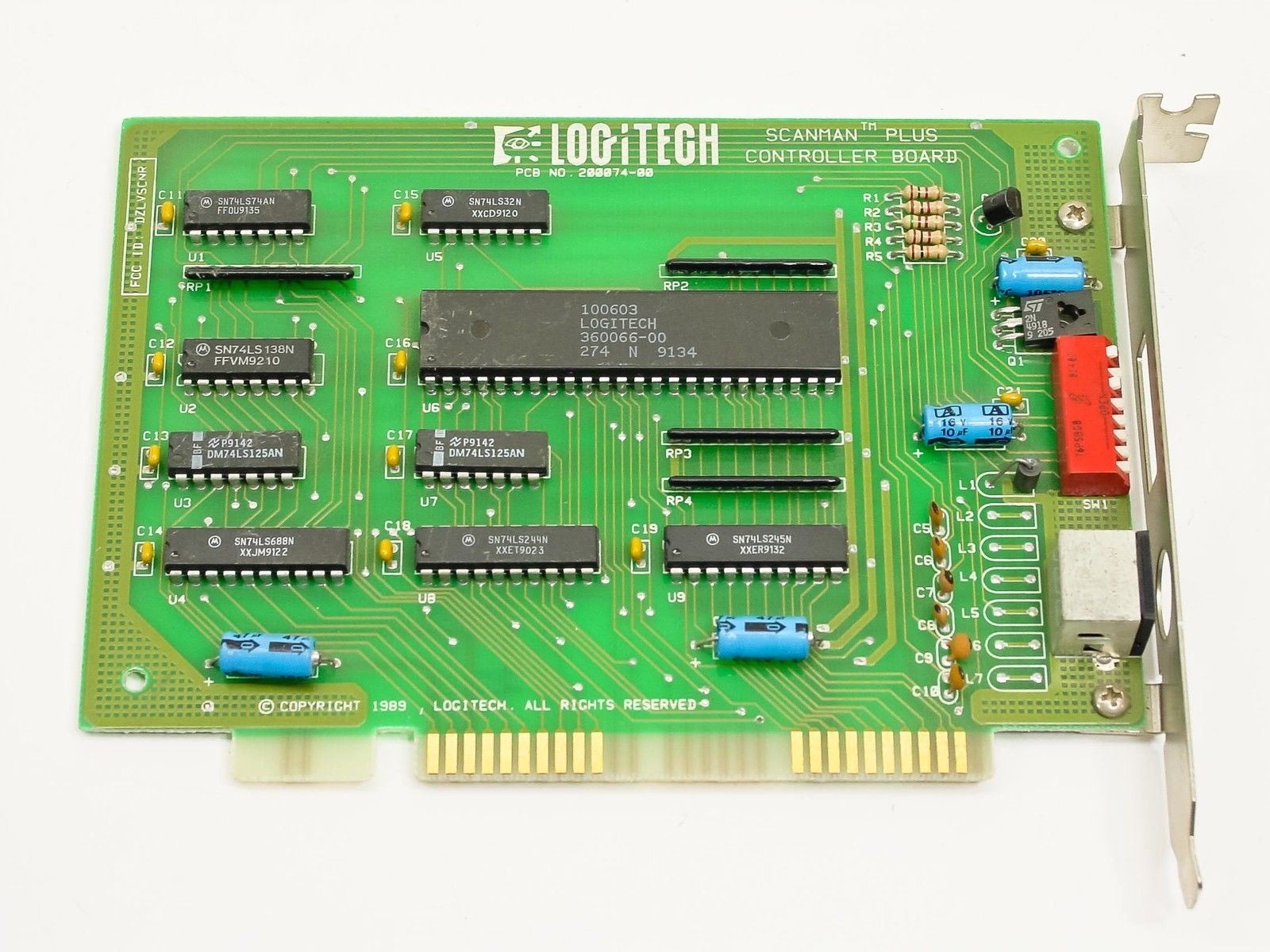

The Logitech ScanMan Plus Controller Board (PCB No. 200074-00) is the ISA expansion card that interfaces the Logitech ScanMan Plus hand-held scanner with a PC. Installed into a free 8-bit or 16-bit ISA slot, it provides the dedicated hardware interface — including the scanner's data path and DIP-switch-configurable I/O settings — needed to drive the ScanMan Plus unit. The board carries the Logitech copyright date of 1989, placing it squarely in the early era of consumer hand scanning for personal computers.

Specifications & What's Included

• Manufacturer: Logitech
• Product: ScanMan Plus Controller Board
• PCB Part Number: 200074-00
• Secondary IC / Assembly Number: 360066-00 (100603)
• Bus Interface: ISA (Industry Standard Architecture) — full-length card
• Bracket Connector: 8-pin DIN port for ScanMan Plus scanner cable
• Configuration: 8-position red DIP switch block on bracket for I/O address selection
• PCB Copyright: 1989, Logitech
• Board only — no scanner head, cable, software, or documentation Logitech ScanMan Plus was one of the earliest and most widely adopted consumer hand-held scanners for IBM PC-compatible computers, introduced in the late 1980s. The scanner system consisted of the hand-held scanning unit and this dedicated ISA controller card, which was installed in the host PC to manage the data transfer between the scanner and the computer. Users would pass the scanner head slowly over a document or image, and the controller card handled the timing and data capture. The ScanMan Plus was commonly used for digitizing documents, signatures, and simple black-and-white graphics in an era before flatbed scanners became affordable and ubiquitous. This card is sought today by collectors and enthusiasts restoring period-correct IBM PC/XT/AT-class systems, as well as by anyone maintaining a working ScanMan Plus setup. It requires an ISA slot, making it compatible with PC/XT, PC/AT, and ISA-bus 286/386/486-era systems running DOS.
  Condition: Used
  This Logitech ScanMan Plus ISA Controller Board (P/N 200074-00) has been inspected and is in good condition. The PCB is clean with no visible damage, cracked traces, or burnt components. The ISA edge connector fingers are in good shape. The bracket-mounted 8-pin DIN scanner port and the red DIP switch block are intact and undamaged. Normal light handling marks are present, consistent with a board that was previously installed and used. No scanner, software, or accessories are included — board only. Please view our photo set and contact us if you have any questions. Visit Our Store
