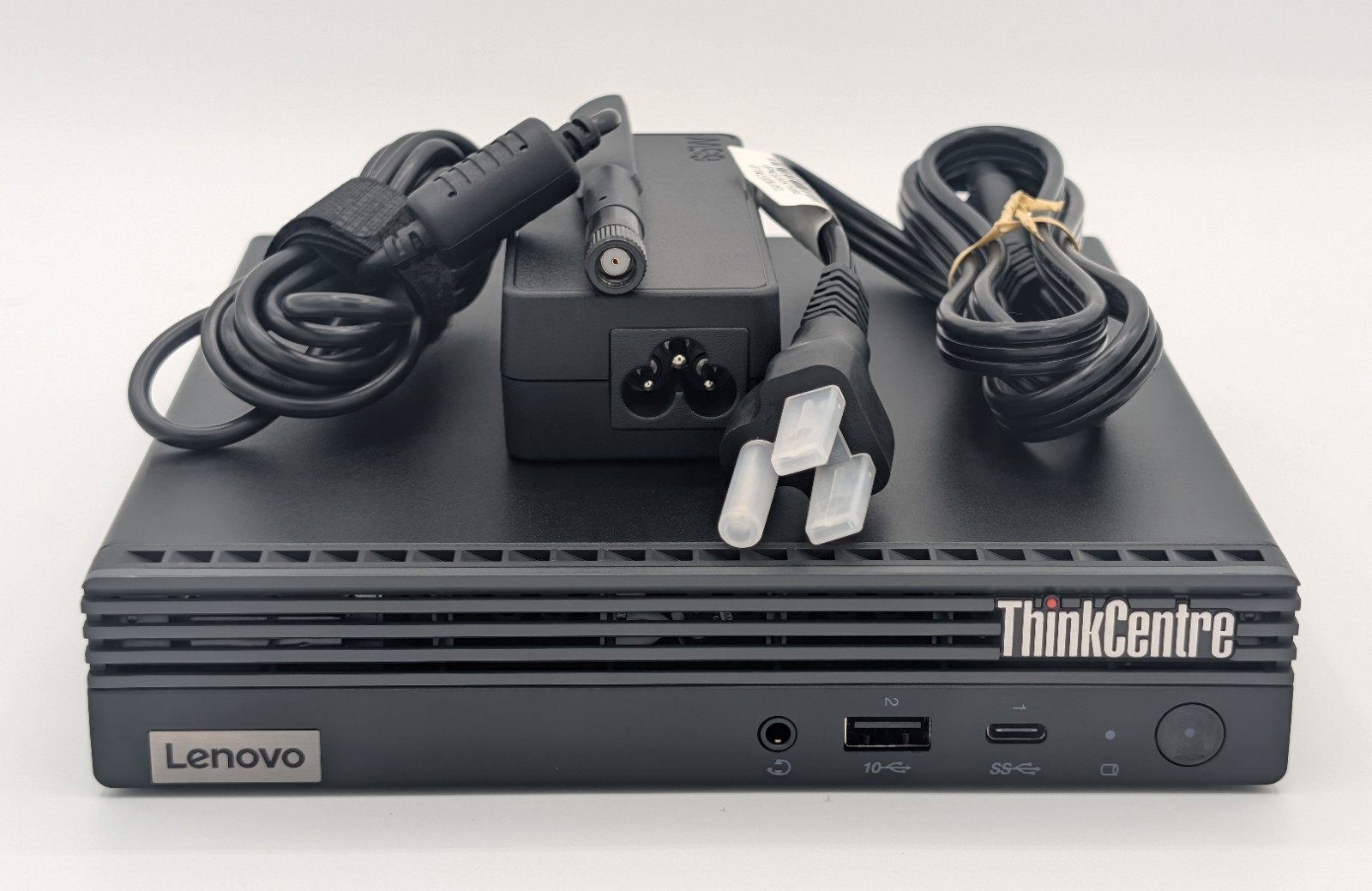

Lenovo ThinkCentre M60e Tiny Desktop PC i5-1035G1 8GB RAM 256GB NVMe SSD Win11 Pro Wi-Fi 6
This compact Lenovo ThinkCentre M60e Tiny delivers solid business performance with a 10th Gen Intel i5 CPU, fast NVMe storage, and modern connectivity including Wi-Fi 6—ideal for office, home, or enterprise environments.
Key Specifications

• Model: ThinkCentre M60e Tiny (Type 11LV)
• Machine Type Model (MTM): 11LV004TUS
• Manufacturer: Lenovo
• Form Factor: Tiny (1L)
• Color: Black
• Dimensions: 179 x 182.9 x 36.5 mm (7.05 x 7.20 x 1.4 in)
• Weight: Approx. 1.25 kg (2.76 lbs)
• Announce Date : 2021/ 03

Processor (CPU)

• CPU: Intel Core i5-1035G1 (10th Gen) Soldered CPU / Not Removable
• Manufacturer: Intel Corporation
• Cores / Threads: 4 Cores / 8 Threads
• Base Speed: 1.00 GHz
• Max Turbo Speed: Up to 3.60 GHz
• Current Speed: 1.190 GHz
• Cache:
  • L1: 4 x 48KB Data + 4 x 32KB Instruction
  • L2: 4 x 512KB
  • L3: 6MB
• Features: MMX, EM64T, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES, AVX, AVX2, AVX-512F/DQ/CD/BW/VL, SHA, RDPID, CLMUL, FMA, PSE, PSE-36, Turbo Boost, HTT, XD, VMX

Graphics

• Integrated GPU: Intel UHD Graphics 630
• Shared Memory
• Max Resolution:
  • HDMI: 4096x2304 @24Hz
  • DisplayPort: 4096x2304 @60Hz
• DirectX 12 Support
• Multi-display: Supports up to 2 independent displays

Memory (RAM)

• Installed: 8GB DDR4-2133
• Configuration: 1 x 8GB
• Speed: 2133 MT/s
• Slots: 2x SO-DIMM (dual-channel capable)
• Max Supported: Up to 32GBDDR4-2666 MT/s
• Channel Mode: Single Channel

Storage

• Installed Drive: 256GB PCIe NVMe SSD
• Model: WDC PC SN730 SDBQNTY-256G-1001
• Manufacturer: SanDisk (Western Digital)
• Usable Capacity: 238GB
• Interface: PCIe NVMe
• Physical / Logical Block Size: 512 bytes
• Temperature: 37°C
• Expansion Support:
  • 1x 2.5" SATA HDD (up to 2TB)
  • 1x M.2 SSD (2242/2280, up to 512GB)

Operating System

• Windows 11 Pro 64-bit (English)

Networking & Connectivity

• Ethernet: Gigabit LAN (RJ-45)
• Wi-Fi: Intel Wi-Fi 6 AX201 (802.11ax, 2x2)delivering speeds up to 2.4 Gbps on 5 GHz and 574 Mbps on 2.4 GHz
• Bluetooth: 5.1 supports 160MHz channels, and uses the CNVio2 interface

Ports & Interfaces

Front Ports:

• 1x USB-C 3.2 Gen 1
• 1x USB 3.2 Gen 2
• 1x Headphone/Microphone Combo Jack

Rear Ports:

• 2x USB 2.0
• 2x USB 3.2 Gen 1
• 1x HDMI
• 1x DisplayPort
• 1x RJ-45 Ethernet
• 1x DC-In

Audio & Multimedia

• Audio Chip: High Definition (HD) Audio
• Speaker: Single internal speaker

Power Supply

• 65W External Adapter Included
• Efficiency: 89%
• 1x M.2 Slot (SSD)
• 1x M.2 Slot (WLAN)
• Tool-less chassis for easy upgrades

Security Features

• TPM 2.0 Firmware (integrated)
• Kensington Security Slot (3 x 7 mm)
• BIOS Security:
  • Admin Password
  • Power-on Password
  • HDD Password
  • Boot Control
  • USB Port Disablement

BIOS Information

• BIOS Version: M3SKT28A
• BIOS Date: 04/08/2026
• BIOS Manufacturer: Lenovo
• EC Version: 1.17
• Intel ME Version: 13.0.37.1556

Motherboard & System

• Chipset: Intel SoC Platform
• USB Controllers: 2
• PCI Devices: 25 total
• RTC (Real-Time Clock): Yes

PCI / PCIe Devices

• Intel Host Bridge (0x8086 / 0x8A12)
• Intel UHD Graphics Controller (0x8086 / 0x8A56)
• Intel Signal Processing Controller (0x8086 / 0x8A03)
• USB Controllers (multiple, Intel 0x8086 IDs)
• RAM Memory Controller (0x8086 / 0x34EF)
• Network Controller (Intel + Realtek 0x8168 Ethernet)
• SATA Controller (0x8086 / 0x34D3)
• NVMe Controller (0x15B7 / 0x5006)
• Audio Device (0x8086 / 0x34C8)
• SMBus Controller and multiple serial bus controllers
• PCIe Ethernet Controller (Realtek, offboard)

Environment & Certifications

• Operating Temp: 5°C to 35°C
• Storage Temp: -40°C to 60°C
• Humidity: 20%–80% operating
• Altitude: Up to 10,000 ft operating
• Certifications:
  • RoHS Compliant
  • MIL-STD-810G data-start="4343" data-end="4373">
  • Non-vPro System Management
  Included Accessories & Notes

  • Power Supply (Genuine Lenovo 65W )

  • External Wfi Antenna

  • Internal Second drive Caddy

  • The unit has been thoroughly inspected, and full functionality has been verified by our CompTIA A+ certified technician. It has been cleaned inside and out, dusted with an anti-static vacuum, and the CPU thermal paste has been re-applied. See the attached images for the unit’s pre-boot diagnostics.

  • No BIOS Password (Guaranteed NOT Locked)
