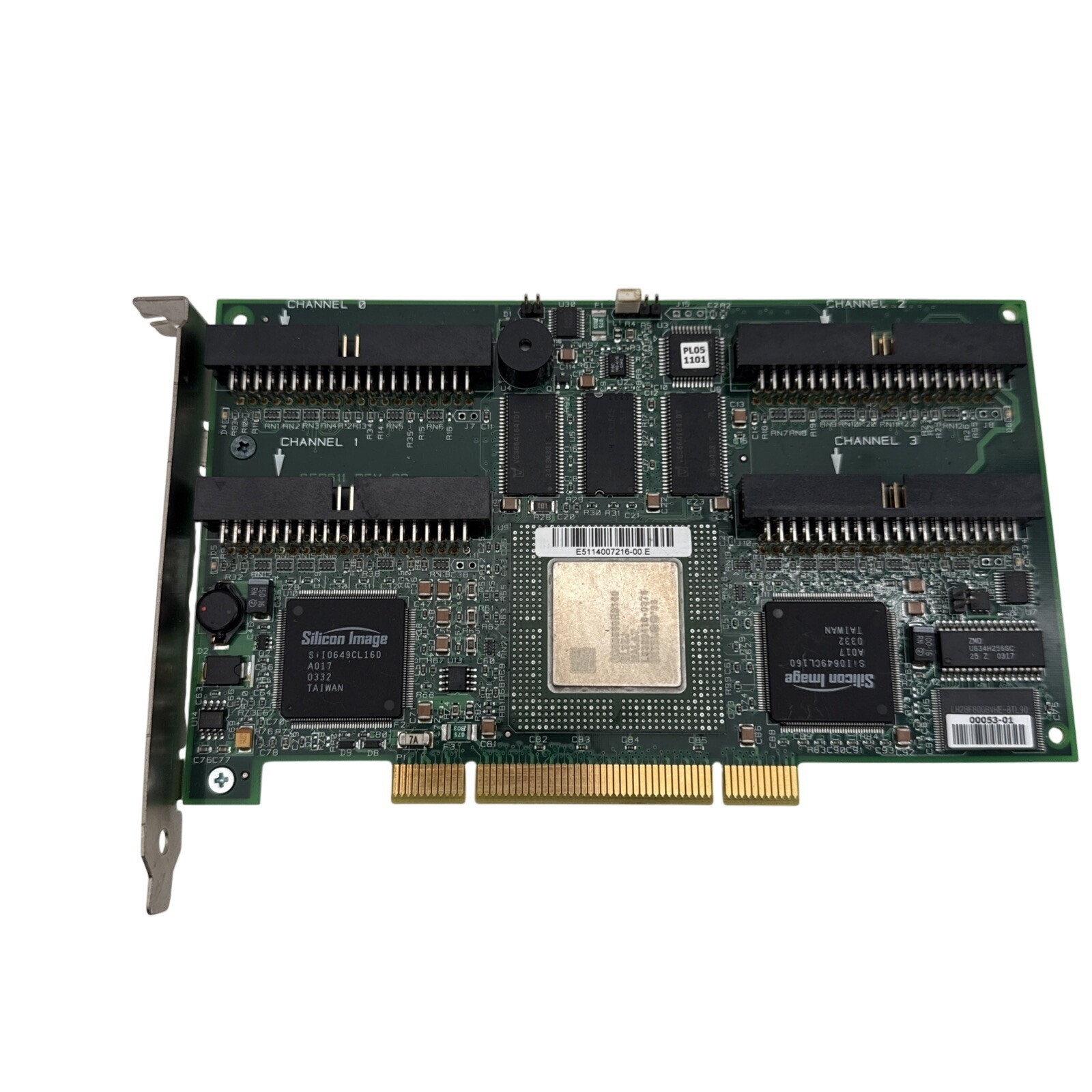

LSI Logic MegaRAID i4 - Series 511 Rev C2
4-Channel IDE / ATA100 Hardware RAID Controller, PCI
CONDITION: UNTESTED. Function unknown. Sold as-is for parts or repair.
WHAT YOU GET: The card only, exactly as pictured. No cables, drivers, or software.
SPECS (from board markings):
- Intel i960RS I/O processor (GC80960RS100)
- 2x Silicon Image SiI0649 ATA controllers
- 4x 40-pin IDE channels (Channel 0-3)
- Onboard SDRAM cache and alarm buzzer
- 32-bit PCI, full-height bracket (no external ports)
- PBA# P5110703, label Rev. A02
- (c) 2001 LSI Logic, assembled in Thailand
Per documentation for this controller family: up to 8 IDE drives (master/slave), RAID 0, 1, 5, 10.
Good for vintage server / retro PC builds, or as a replacement for an identical failed card.
Please review all photos closely - they are part of the description.
