LSI MegaRAID SAS 9280-4i4e 6Gb/s 8-Port RAID Controller w/ iBBU08 Battery For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

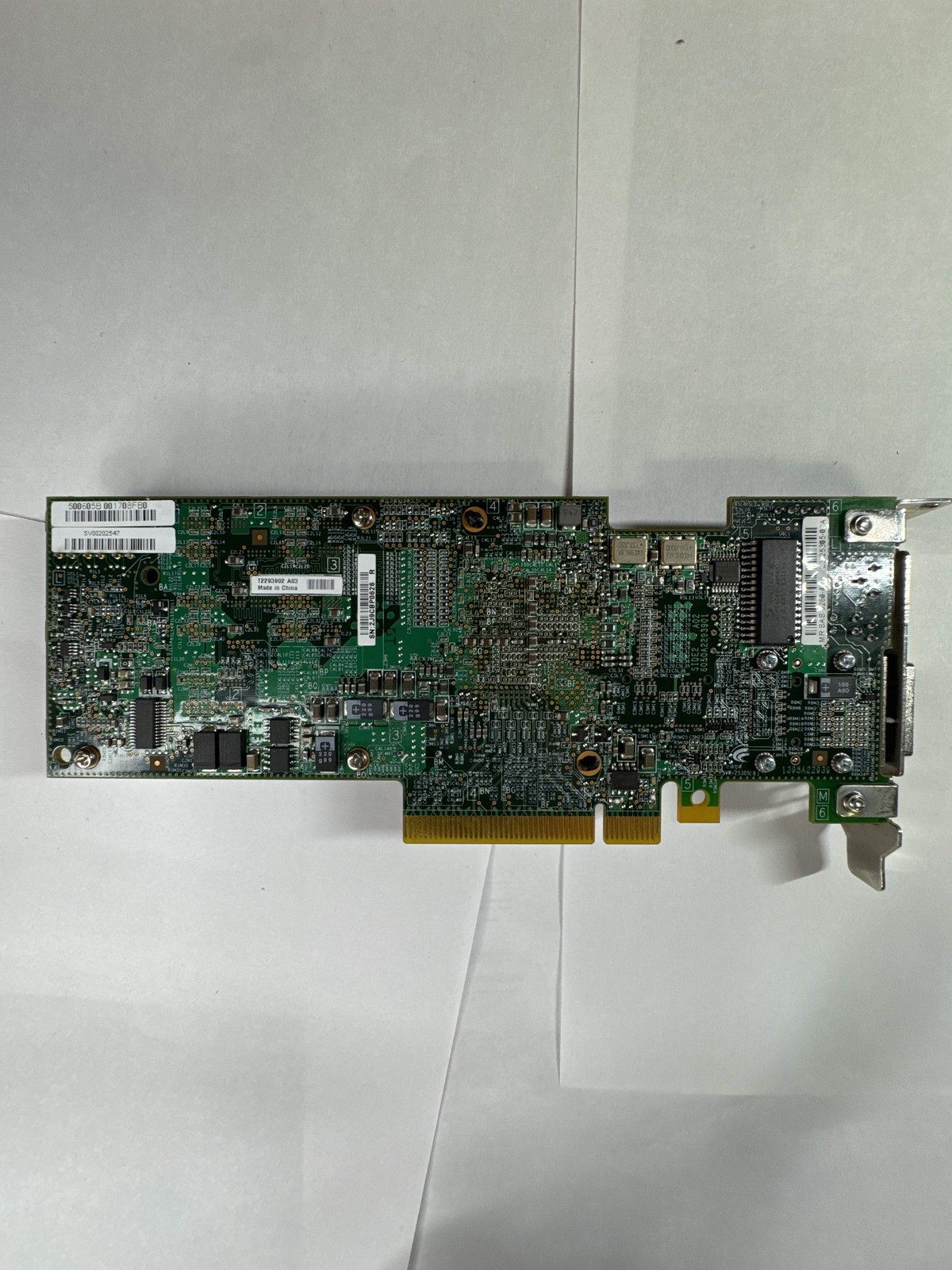

LSI MegaRAID SAS 9280-4i4e 6Gb/s 8-Port RAID Controller w/ iBBU08 Battery

Price: US $25.33

LSI MegaRAID SAS 9280-4i4e 8-Port 6Gb/s PCIe RAID Controller with iBBU08 Battery Backup Product Overview

The LSI MegaRAID SAS 9280-4i4e is a high-performance 6Gb/s SAS and SATA RAID controller designed for enterprise-level data protection and performance. This specific "4i4e" model is highly versatile, featuring one internal port for local drive arrays and one external port for connecting to JBOD or tape expansion enclosures.

This unit includes the LSI iBBU08 Intelligent Battery Backup Unit, which protects the 512MB onboard cache data in the event of a sudden power loss, ensuring data integrity for critical server applications.

Technical Specifications

Brand: LSI (Broadcom) / IBM OEM
Model: MegaRAID SAS 9280-4i4e
Interface: PCI Express 2.0 x8
Data Transfer Rates: Up to 6Gb/s per port (SAS 2.0 / SATA III)
Port Configuration: 8 Ports Total
- 1 x SFF-8087 Internal Mini-SAS (4i)
- 1 x SFF-8088 External Mini-SAS (4e)
Cache Memory: 512MB 800MHz DDR2 SDRAM
RAID Levels: 0, 1, 5, 6, 10, 50, 60
RAID Processor: LSI SAS 2108 RAID-on-Chip (ROC)
Battery Backup: iBBU08 Li-Polymer Module (Included)

Compatibility

Compatible with a wide range of enterprise servers and workstations from Dell, HP, IBM, and Supermicro. The included battery (IBM FRU 81Y4451) is standard for IBM ServeRAID M5000 series setups but the card maintains universal compatibility with systems featuring an available PCIe x8 slot.

Condition & Items Included
