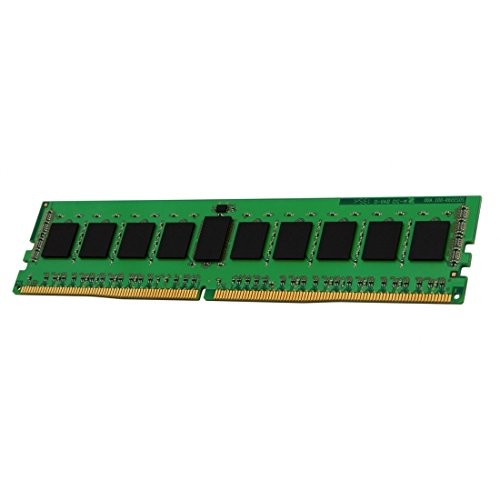

Kingston ValueRAM 16GB DDR4 SDRAM Memory Module (KVR32N22S8/16) Kingston ValueRAM 16GB DDR4 SDRAM Memory Module (KVR32N22S8/16)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Product Description
This item is brand-new, factory sealed.
DESCRIPTION
This document describes ValueRAM's KVR32N22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
FEATURES
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
RoHS Compliant and Halogen-FreeCL(IDD)
22 cyclesRow Cycle Time (tRCmin)
45.75ns(min.)Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)Row Active Time (tRASmin)
32ns(min.)UL Rating
94 V - 0Operating Temperature
0oC to +85oCStorage Temperature
-55oC to +100oCItem Dimension (L inchxW inchxH inch)
7 x 3 x 1Weight
1.00LBWarranty Information
Lifetime Warranty SpecificationPhysical CharacteristicsForm FactorDIMMLength5.2"Number of WarrantyLifetimeGeneral InformationBrand NameKingstonMarketing Information This document describes ValueRAM's KVR32N22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. Product TypeRAM ModuleProduct Name16GB 1Rx8 2G x 64-Bit PC4-3200 CL22 288-Pin DIMMManufacturerKingston Technology CompanyManufacturer Part NumberKVR32N22S8/16Product LineValueRAMPackaged Quantity1 EachTitleProduct TitleKingston 16GB 1Rx8 2G x 64-Bit PC4-3200 CL22 288-Pin DIMM (KVR32N22S8/16)Technical InformationMemory TechnologyDDR4 SDRAMMemory Size16 GBCAS LatencyCL22Memory RankSingle-rankMemory Speed3200 MHzMemory Voltage1.20 VMemory StandardDDR4-3200/PC4-25600 Shipping
