Connect up to five wired network devices with a compact Gigabit Ethernet PoE+ switch featuring four PoE+ ports and additional Gigabit port. The four powered ports provide data and up to 30 watts per port, with a total PoE power budget of 40 watts for network cameras, wireless access points, VoIP phones and other IEEE 802.3af/at powered devices. All five RJ45 ports support 10/100/1000 Mbps auto-sensing for automatic speed detection. A 10 Gbps switching capacity, -and-forward architecture, 125 KB buffer memory and support for jumbo frames up to 9 kBytes help manage network traffic. Auto-sensing PoE awareness sends power only to powered devices, while non-PoE devices receive data. The unmanaged, plug-and-play design requires no software or configuration. Use Cat5e, Cat6 or Cat6a UTP/STP network cables, and connect devices through existing Ethernet cabling for combined power and data. Short-circuit, overload and high-voltage protection, along with ESD protection up to 8 kV air and 6 kV , support installation in network environments. A fanless metal housing provides quiet operation, and mounting holes allow wall installation. The switch measures 5.51 x 3.03 x 1.1 inches, weighs 12.1 ounces and operates from 32 to 104°F. Package includes the five-port switch, power cable and instructions.
Power up to four PoE devices with data and electrical power through switch, using four PoE+ ports with a shared 40 W budget and output up to 30 W per port for cameras, access points, bridges, or VoIP phones.
Install without software or configuration using plug-and-play operation. Five RJ45 ports support IEEE 802.3at/af powered devices, while standard Cat5e, Cat6, or Cat6a cables carry network data and power.
Connect computers and other wired equipment through five 10/100/1000 Mbps ports with auto-sensing speed detection and Auto MDI-X. The 10 Gbps switching capacity supports -and-forward traffic handling.
Automatically identify powered devices before sending PoE power, while non-PoE equipment receives data only. Short-circuit, overload, and high-voltage protection help safeguard connected network hardware.
Handle network traffic with a 2,000-entry auto-learning and auto-aging MAC table, 125 KB buffer memory, jumbo frames up to 9 kBytes, and IEEE 802.3x flow control for full-duplex and backpressure for half-duplex operation.

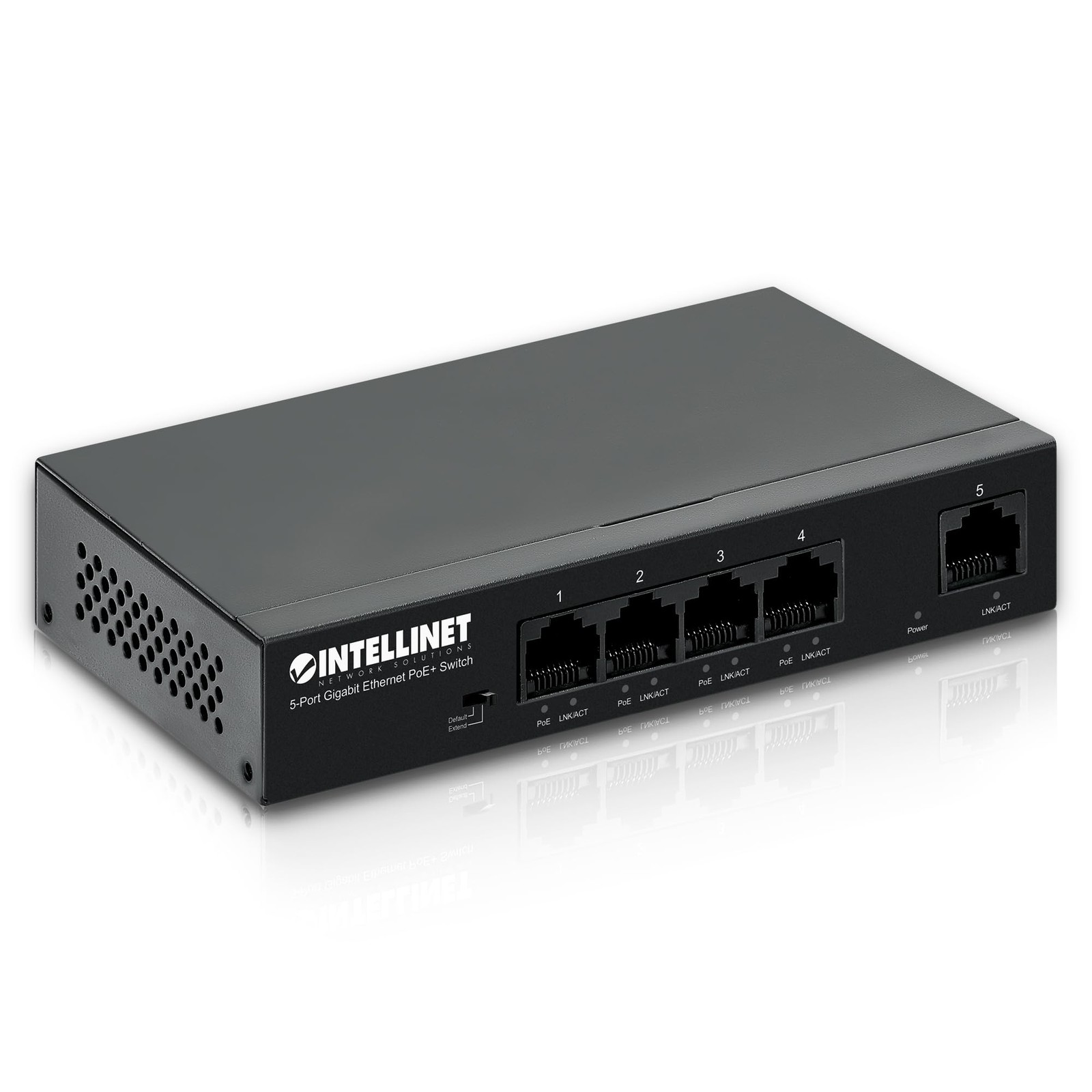

Place the black metal switch on a desktop or attach it to a wall using the mounting holes. Its fanless design supports quiet operation, with a compact 5.51 x 3.03 x 1.1 inch form factor.
Use the included switch, power cable, and instructions for a five-port network setup. The unit weighs 12.1 ounces, operates from 32 to 104°F, and supports 10 to 90% non-condensing operating humidity.
