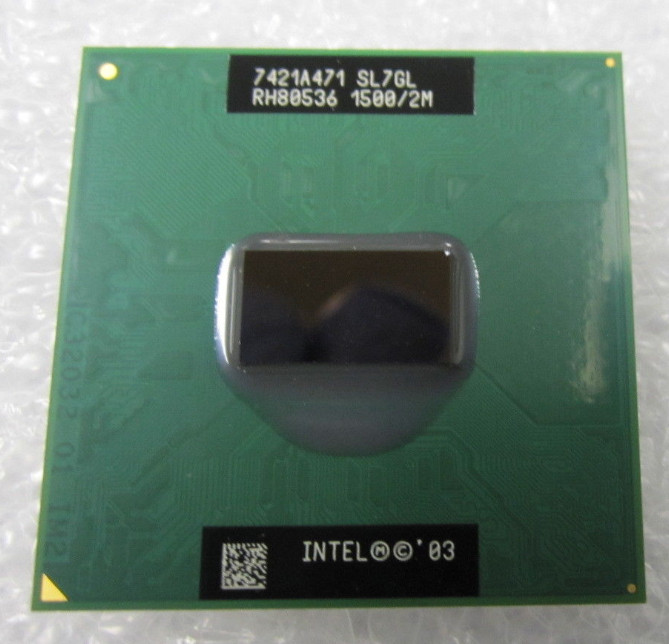

General informationTypeCPU / MicroprocessorMarket segmentMobileFamilyIntel Pentium M DothanModel number?715CPU part numberRH80536GC0212M (Q52T,Q63Q,QAPJ,SL7GL)Box part numberBXM80536GC1500FFrequency (MHz)?1500Bus speed (MHz)?400Clock multiplier?15Package478-pin micro FC-PGA1.38" x 1.38" (3.5 cm x 3.5 cm)SocketsSocket 479 (mPGA479M)
Socket mPGA478CIntroduction dateJun 23, 2004Price at introduction$209Architecture / MicroarchitectureProcessor core?DothanCore stepping?B1 (SL7GL)Manufacturing process0.09 micron140 million transistorsData width32 bitFloating Point UnitIntegratedLevel 1 cache size?32 KB instruction cache32 KB write-back data cacheLevel 2 cache size?2 power features
- AutoHALT mode?
- Stop Grant mode?
- Sleep mode?
- Deep Sleep mode?
- Deeper Sleep mode?
- Dynamic FSB power down
- Enhanced SpeedStep technology?
Electrical/Thermal parametersV core (V)?1.276 - 1.34Minimum/Maximum operating temperature (°C)?0 - 100Minimum/Maximum power dissipation (W)?1.87 (Deeper Sleep mode) / 30.22Thermal Design Power (W)?21Notes on Intel RH80536GC0212M
- Bus frequency is 100 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 400 MHz
- In the lowest frequency mode (core voltage = 0.988V) the processor runs at 600 Mhz and has TDP 7.5 Watt
General informationTypeCPU / MicroprocessorMarket segmentMobileFamilyIntel Pentium M DothanModel number?715ACPU part numberRH80536GC0212MT (SL89U)Frequency (MHz)?1500Bus speed (MHz)?400Clock multiplier?15Package478-pin micro FC-PGA1.38" x 1.38" (3.5 cm x 3.5 cm)Architecture / MicroarchitectureProcessor core?DothanManufacturing process0.09 micron140 million transistorsData width32 bitFloating Point UnitIntegratedLevel 1 cache size?32 KB instruction cache32 KB write-back data cacheLevel 2 cache size?2 power features
- AutoHALT mode?
- Stop Grant mode?
- Sleep mode?
- Deep Sleep mode?
- Deeper Sleep mode?
- Dynamic FSB power down
- Enhanced SpeedStep technology?
Electrical/Thermal parametersMinimum/Maximum operating temperature (°C)?0 - 100Notes on Intel RH80536GC0212MT
- Bus frequency is 100 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 400 MHz
