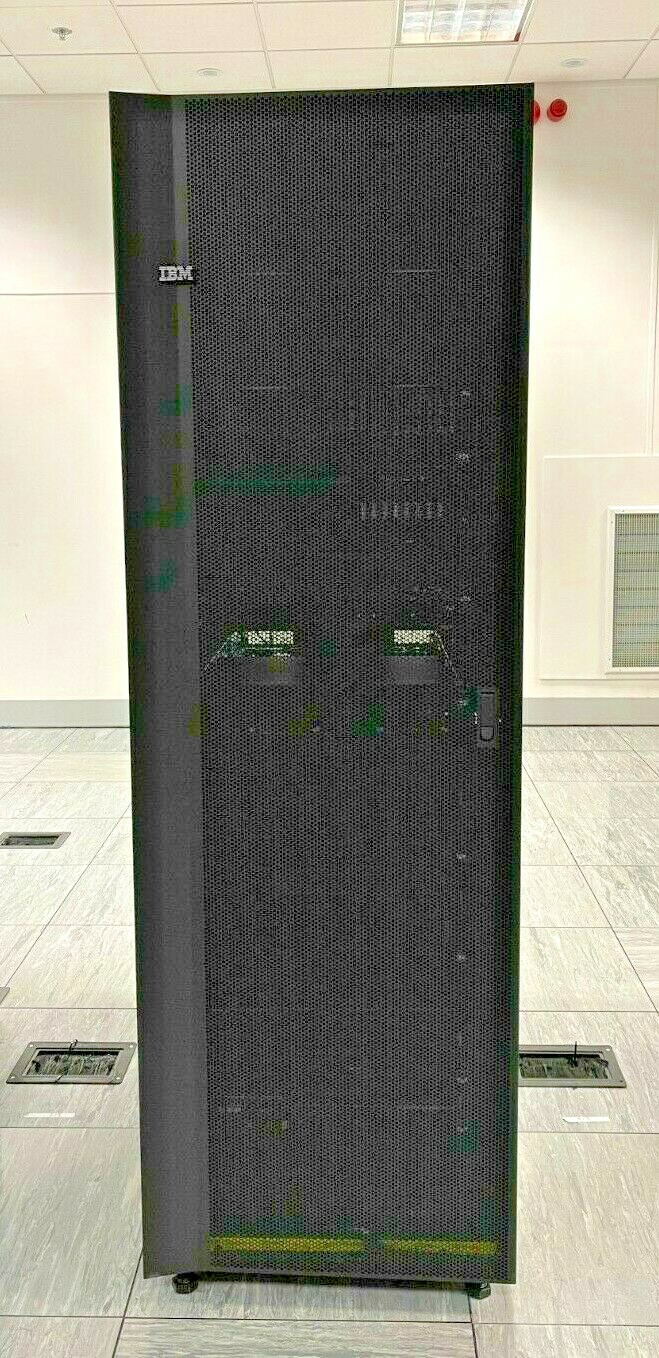

IBM Power 8 9119-MME E870 3.3TB Storage Cloud Enterprise Complete Node System

In Good Condition, Full Working Order

HARDWARE ONLY NO LICENSES OR SOFTWARE

REMOVED FROM A LARGE RETAILERS DATA CENTRE, WAS BEING USED UNTIL THE POINT THEY CLOSED

1 x IBM FC 5887 TotalStorage EXP24S SFF 24 hot-swap SFF SAS 2.5" Disk Drive Expansion -With Following Installed :-

• 24 x IBM 00E6171 139GB 15K SAS 2.5" 74Y6479
• 2 x IBM 74Y9480 Enclosure Services Manager ESM

1 x IBM Power 720 8202-E4D 1 x PowerVM Express -With Following Installed :-

• 6 x IBM 78P1915 16GB 2RX4 PC3L-10600R DDR3-1333Mhz
• 1 x IBM 74Y3290 74Y3343 Cache Battery Card w/ Battery Pack CCIN 2BCF
• 2 x IBM 00E2872 1Gb 4-Port PCIe2 Ethernet-TX Adapter
• 1 x IBM 00E0807 5774 4Gbps 2-Port PCI Express (PCIe) Fibre Channel Adapter
• 2 x IBM 74Y6512 74Y7466 SAS 3GB 2-Port PCIe x8 380MB DDR RAID Adapter 574E
• 2 x IBM 00FW422 CCIN 2BED 1925W AC Power Supply

1 x IBM 80P3750 7316-TF3 17″ KMM Server Rackmount LCD Monitor

1 x IBM 7042-CR5 HMC Hardware Management Console for Power Servers -With Following Installed :-

• 1 x IBM 43W7673 SYSTEM X 300GB 10K SATA 2.5" Hard Drive
• 1 x Intel Xeon Processor E5530 8M Cache, 2.40 GHz, 5.86 GT/s QPI
• 4 x IBM 44T1490 1GB 1Rx8 PC3-10600 DDR3 Memory Module 43X5044
• 1 x SATA CD/RW - DVD-RAM
• 2 x IBM 39Y7200 Power Supply 39Y7200 7001484-J002 675W

1 x IBM 7042-CR4 System X3550 HMC Hardware Management Console -With Following Installed :-

• 1 x Intel Xeon Processor E5420 12M Cache, 2.50 GHz, 1333 MHz FSB
• 2 x IBM 39M5781 512mb 667mhz Pc2-5300 240-pin Dimm Cl5 Ecc Fully Buffered Ddr2 Sdram
• 2 x IBM 39Y7189 670W Power Supply 7001134-Y002

1 x IBM Rackmount Screen

1 x IBM 7063-CR1 Hardware Install POWER 8 HMC ServerWith Following Installed :-

• 1 x IBM Power7 CPU Processor Module 01HL709
• 2 x Seagate 2TB Exos 7E8 3.5" SATA Enterprise HDD/Hard Drive ST2000NM0125
• 4 x Micron 8GB 1Rx8 PC4-2666V-RD1
• 2 x Supermicro 1000W 1U Redundant Power Supply PWS-1K02A-1R

2 x IBM EMX0 PCIe Gen3 I/O Expansion Slot Drawer 00FY278 FC 78CD-001 - With the following Installed:-

• 5 x IBM 74Y3467 LPe12004-M8 QUAD Port 8Gb 8GBps Fibre Channel PCI-E Host Bus Adapter -With :-
• 4 x Avago AFBR-57D9AMZ-ELX 8GB SFP+ 850nm SW Optical Transceiver Module
• 4 x IBM 00E2872 1Gb 4-Port PCIe2 (x4) Ethernet-TX Adapter

4 x IBM 1U Rackmount PDU

1 x IBM Power 8 Node System E870 FC EBA0 00RR128 Server -With the following Installed:-

• 32 x IBM 00LP726 32Gb Memory DDR3 Cdimm Dram 1600MHz
• 4 x IBM Power System E880 PCIE Optical Cable Adapter 00LY090
• 2 x IBM 00E25 GFSP interface card
• 2 x Power Supplies

1 x IBM 9119 MME 00RR129 78CC-001 -With the following Installed:-

• 1 x DVD Drive
• 2 x IBM 00E2380 00VK422 Service processor card
• 2 x IBM 00E2365 00MH415 Clock card

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£20,000 excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
