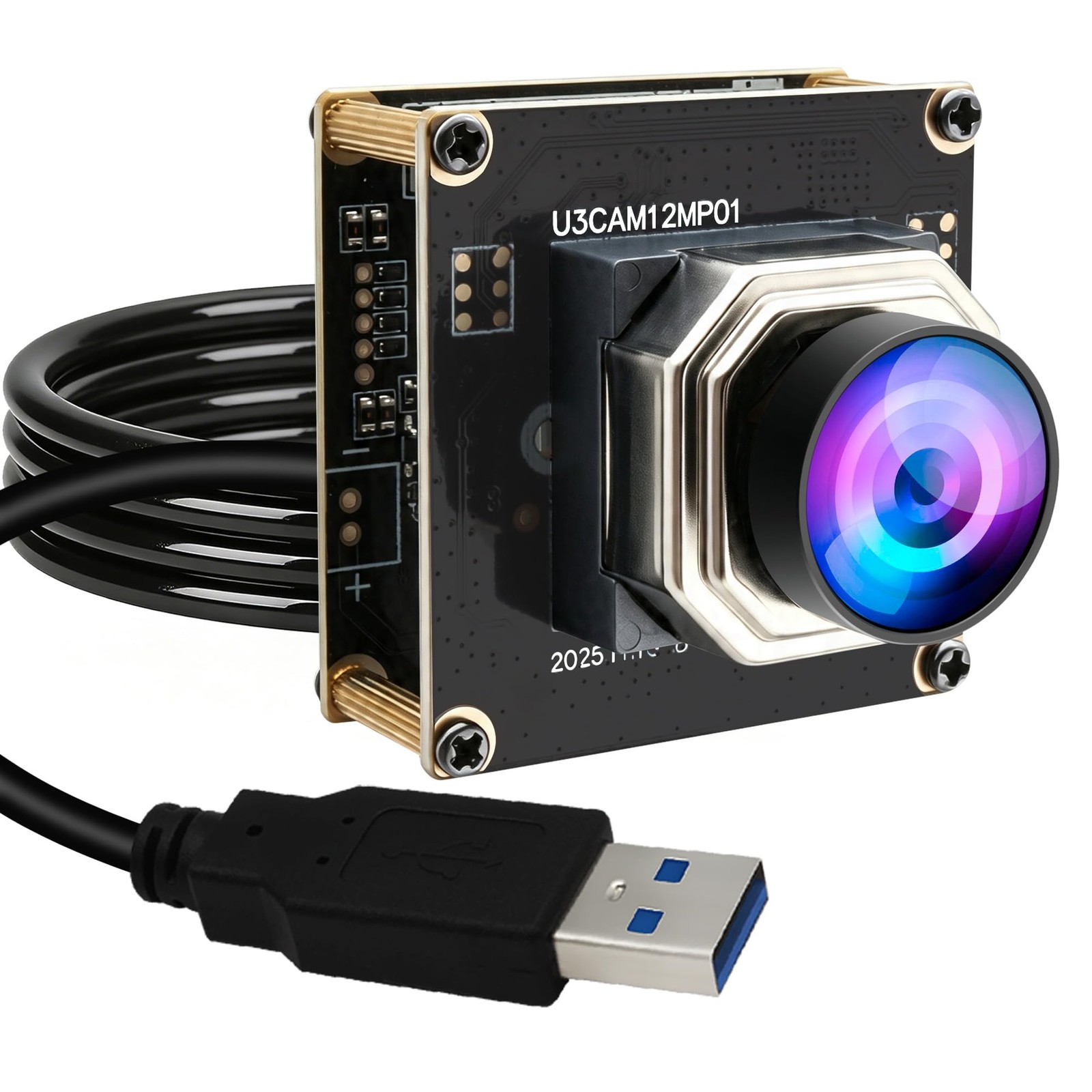

Model NO.: -U3CAM12MP01-AFTL170
Image Sensor: IMX577 (1/2.3” )
Max/Default Resolution: 4000(H) *3000 (V)
Sensor Size/ Image Size: 10.7mm x 8.5mm /5.95mm x 4.71mm
Pixel Size: 1.55µm x 1.55µm
Compression Format: MJPEG / YUY2 (YUYV)
Resolution & Frame Rate: (USB 3.0 Interface & Speed)
Under USB 3.0 Interface & Speed:
4000x3000@ 30fps MJPEG/YUY2 10fps
3840x2160@ 60fps MJPEG/YUY2 20fps
3264x2448@ 30fps MJPEG/YUY2 20fps
2560x1440@ 60fps MJPEG/YUY2 30fps
1920x1080@ 230fps MJPEG/YUY2 60fps
1280x720@ 230fps MJPEG/YUY2 120fps
640x360@ 230fps MJPEG/YUY2 230fps
Resolution & Frame Rate: (USB 2.0 Speed)
Under USB 2.0 Speed:
4000x3000@ 30fps MJPEG
3840x2160@ 30fps MJPEG
3264x2448@ 30fps MJPEG
2560x1440@ 60fps MJPEG
1920x1080@ 120fps MJPEG
1280x720@ 230fps MJPEG/YUY2 10ps
640x360@ 230fps MJPEG/YUY2 30fps
Center Definition: 1000LW/PH (Center)
S/N Ratio: 49dB
Sensitivity: 0.65V/lux-sec@550nm
Minimum illumination: 0.1lux
Shutter Type: Electronic rolling shutter / Frame exposure
Connecting Port type: USB 3.0 Interface
AEC/ AWB/ AGC Support
Adjustable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight
Compensation, Exposure
Lens Parameter:
f=3.24mm, No distortion, HFOV is approximately 88°.
Optional Lenses:
Power Supply& Connector
USB Type-C Power Supply, Type-C
Power Voltage: DC 5V
Power Current: 180-260mA
Board Size: 38x38x48.8mm
Storage Temperature: -20°C to 85°C
Working Temperature: -10°C to 65°C
USB Cable: 1.2m cable with USB3.0 Type-C port
Operating System Support:
Win10/Win11 etc;
Linux with UVC;
MAC-OSX10.4.8 or later;
Android5.x or above
【Ultra HD 12megapixel】Recording max 4000(H)x3000(V) video and still picture.
【High Frame Rates】Up to 1080P@230fps,4K@60fps, 3000P@30fps. Support YUY2 and MJPEG format. Designed to perform reliably in both Indoor and outdoor environments.
【Wide Angle Lens】170degree fisheye lens, HFOV is approximately 164°, with industry-standard M12 lens thread for optical customization, perfect for conference rooms, retail spaces, or drone navigation, etc.
【Autofocus 】Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
USB3.0 high speed USB camera for high speed system, USB3.0/2.0 compatible, high performance ISP.
USB3.0 20pin connector, equipped 1.2meters USB cable, Support OTG optional
【Superior Color CMOS Sensor】Adapt with 1/2.3” Imx577 image sensor for better picture performance, mini usb camera module with 1.2meter/3.96ft USB cable for pc laptop. Mini Illumination: 0.1lux.
【Mini size, light weight】Small outline and thin profile for embedded machine just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
【Wide Applications】This mini 38mmx38mm camera board can be installed in most hidden and narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, Robotics, Precision Agriculture, Motion Analysis, Sports Tracking, Industrial Automation, Traffic Monitoring and Surveillance, etc.
