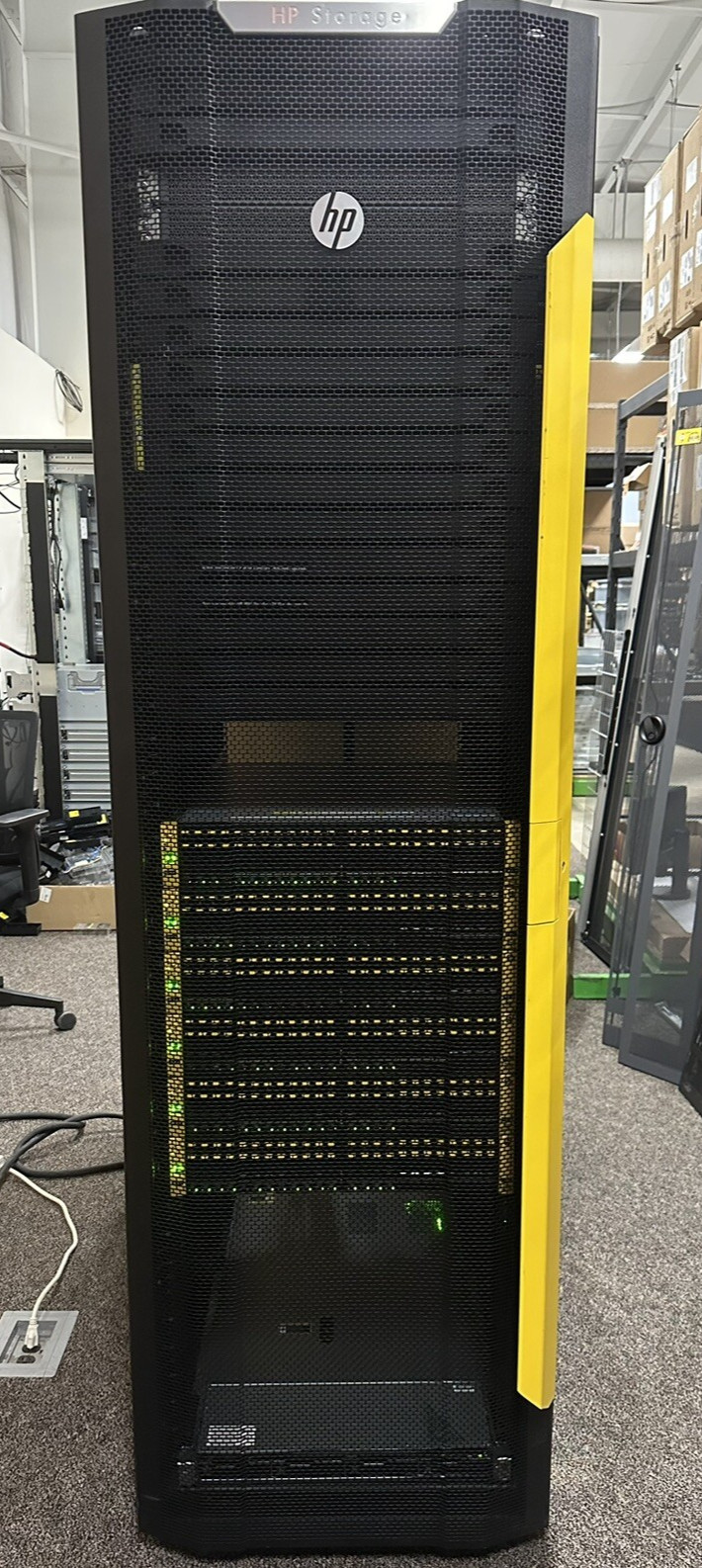

HPE 3PAR StoreServ 7400 2-Node 96 Drive 57.6TB SAN System 42U Rack PDU 5x M6710This listing is for one (1) HPE 3PAR StoreServ 7400 Tier 1 Enterprise Storage SystemOverview3PAR StoreServ 7400 2-node Storage Base with 5x M6710 drive enclosures96 physical drive system with 57.6TB raw capacityIntegrated in td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}BW904A HP 642 42U Intelligent Series Rack in Storage-Centric ConfigurationRack is complete with all sides and doorsIncludes physical Service ProcessorIncludes 2x StorageWorks 8/8 fibre channel switchesController NodesHP 3PAR StoreServ 7400 2-node Storage Base2U 24-bay SFF enclosure with 2 controller nodesExpandable to 4 node system with additional upgrade node pair (not included)32GB total cache (16GB per node)2x Built-in 8Gb/s Fibre Channel ports per node with 8Gb/s FC SFP+ transceivers installed1x PCIe full-height adapter slot per node is available for adding FC/iSCSI host bus adapter cardsController enclosure has 16x 600GB 10K SAS HDDs installedExpansion Enclosures5x QR490A M6710 2U 24-bay 2.5" SAS Drive Enclosures are installed and cabled to the controller node pairEach expansion enclosure has 16x C8R72A 600GB 10K SAS HDDs installedStoreServ 7400 supports up to 18 total SFF and LFF expansion enclosures (requires licensing for additional drives)SAS interconnects are installed and includedActive License Features96 Disks3PAR OS SuiteAdaptive Flash CacheManagement Plug-In for VMware vCenterPeer PersistencePriority OptimizationRecovery Manager for VMware vSphereRemote CopySystem ReporterSystem TunerThin ConversionThin Copy ReclamationThin DeduplicationThin PersistenceThin ProvisioningVirtual CopyVSS Provider for Microsoft WindowsService ProcessorProLiant DL320e ServerIntel i3-3240 CPU4GB RAMRHEL 6-based Service Processor OS image is installedNetworking2x HP StorageWorks 8/8 24-port 8Gbps Fibre Channel SAN Switches are installedSwitches have been reset to factory default configuration48x 8Gb Fibre Channel SFP+ transceivers are installed in the switchesService Processor and controller nodes connect via 1GbE RJ45 Ethernet portsPlease ensure you have at least 3x Ethernet switch ports available for connecting SP and nodesWe can add an Ethernet switch to the rack if requiredPower2x 719884-005 HP PDUs are installed in the rack with AG730A HP EVA PDU Pivot KitPDUs have NEMA L6-30p input plug - requires 200V+ 30A circuitsPlease contact us if you require a different PDU configuration for your environmentConfigurationOOTB Procedure will be performed on controller nodes prior to shipmentPlease contact us at time of purchase to discuss IP configuration for service processor and controller nodesSystem will be delivered with default passwords where possible, passwords will be provided if non-defaultShippingFree shipping is via Freight to a location within the Continental USA, receiving location must have a loading dock or a forkliftAdditional locations please contact us for a shipping quoteLiftgate charge is $375 if neededResidential delivery (if you are crazy enough to have this shipped to a residence) + $1,250Local pickup is available in 12205Local delivery is also available $4/mileInternational shipping is available, please contact us for a quotePlease contact us with any questionsThank youThis listing is for one HPE 3PAR StoreServ 7400 Tier 1 Enterprise Storage System
Overview3PAR StoreServ 7400 2-node Storage Base with 5x M6710 drive enclosures96 physical drive system with 57.6TB raw capacity
Integrated in BW904A HP 642 42U Intelligent Series Rack in Storage-Centric Configuration
Rack is complete with all sides and doorsIncludes physical Service Processor
Includes 2x StorageWorks 8/8 fibre channel switchesController NodesHP 3PAR StoreServ 7400 2-node Storage Base
2U 24-bay SFF enclosure with 2 controller nodesExpandable to 4 node system with additional upgrade node pair (not included)
32GB total cache (16GB per node)2x Built-in 8Gb/s Fibre Channel ports per node with 8Gb/s FC SFP+ transceivers installed1x PCIe full-height adapter slot per node is available for adding FC/iSCSI host bus adapter cards
Controller enclosure has 16x 600GB 10K SAS HDDs installedExpansion Enclosures5x QR490A M6710 2U 24-bay 2.5" SAS Drive Enclosures are installed and cabled to the controller node pairEach expansion enclosure has 16x C8R72A 600GB 10K SAS HDDs installedStoreServ 7400 supports up to 18 total SFF and LFF expansion enclosures (requires licensing for additional drives)
SAS interconnects are installed and included
Active License Features96 Disks3PAR OS SuiteAdaptive Flash CacheManagement Plug-In for VMware vCenterPeer PersistencePriority OptimizationRecovery Manager for VMware vSphereRemote CopySystem ReporterSystem TunerThin ConversionThin Copy ReclamationThin DeduplicationThin PersistenceThin ProvisioningVirtual CopyVSS Provider for Microsoft WindowsService ProcessorProLiant DL320e Server
Intel i3-3240 CPU
4GB RAM
RHEL 6-based Service Processor OS image is installedNetworking
2x HP StorageWorks 8/8 24-port 8Gbps Fibre Channel SAN Switches are installed
Switches have been reset to factory default configuration
48x 8Gb Fibre Channel SFP+ transceivers are installed in the switchesService Processor and controller nodes connect via 1GbE RJ45 Ethernet ports
Please ensure you have at least 3x Ethernet switch ports available for connecting SP and nodesPower
2x 719884-005 HP PDUs are installed in the rack with AG730A HP EVA PDU Pivot Kit
PDUs have NEMA L6-30p input plug - requires 200V+ 30A circuits
Please contact us if you require a different PDU configuration for your environmentShipping
Free shipping is via Freight to a location within the Continental USA, receiving location must have a loading dock or a forklift
Additional locations please contact us for a shipping quoteLiftgate charge is $575 if neededResidential delivery (if you are crazy enough to have this shipped to a residence) + $1,250Local pickup is available in 12205Local delivery is also available $3/mileInternational shipping is available, please contact us for a quotePlease contact us with any questions
Thank you
