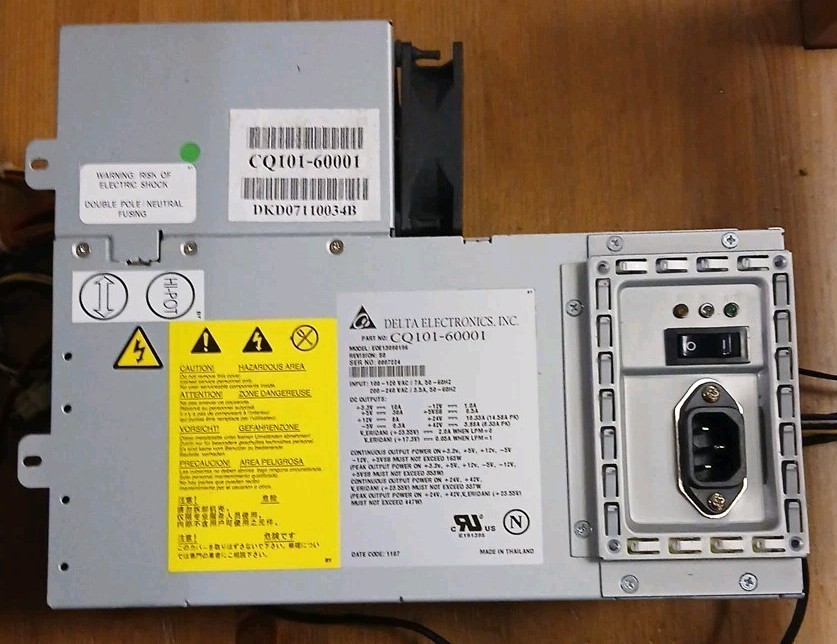

HP DesignJet Power Supply CQ101-60001 Delta EDE13090196 Z2100 Z3100 Z3200

Price: US $80.00

OEM HP DesignJet Power Supply – Delta Electronics

This listing is for a genuine OEM HP power supply, manufactured by Delta Electronics, removed from a working HP large-format plotter.

HP Part Number: CQ101-60001

Delta Model: EDE13090196

Revision: B0

Input: 100–120V / 200–240V AC, 50–60Hz

Manufactured in: Thailand

This is a high-power, multi-rail switching power supply designed specifically for HP DesignJet plotters. It provides the required logic, motor, and carriage voltages including +24V and +42V rails, which are critical for plotter operation.

🔌 DC Output Rails

+3.3V @ 10A

+5V @ 30A

+12V @ 8A

−5V @ 0.5A

−12V @ 1.0A

+5VSB @ 0.5A

+24V @ 10.55A (14.58A peak)

+42V @ 3.85A (6.35A peak)

HP motor rail (LERIDANI +28.55V)

Total peak output: up to 447W

🖨️ Compatible Plotters
