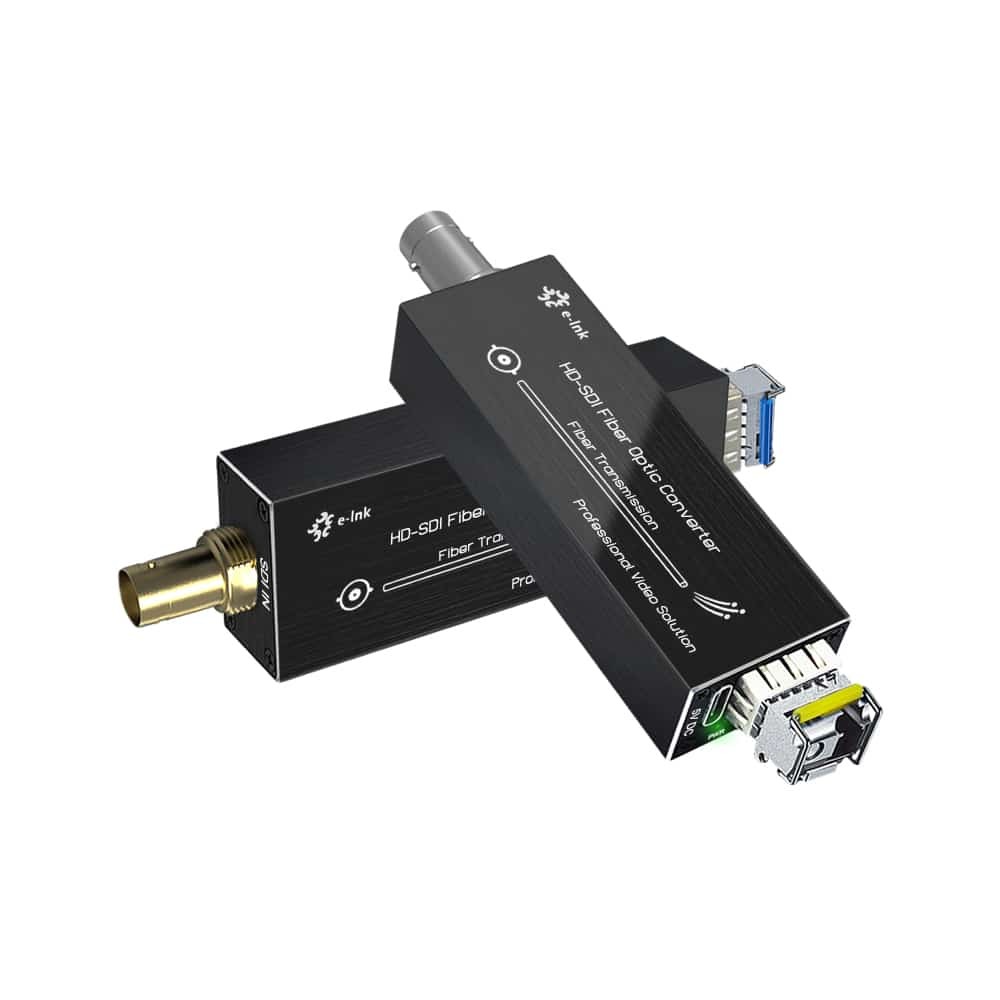

HD-SDI Fiber Converter 1080P with 80km Transmission 8-Channel Audio EmbeddedE-link 1080P HD-SDI Fiber Converter
LNK-MHD Series Mini HD-SDI Fiber Extendersupports 1-channelHD-SDI Video(audio embedded)signal transmitted via fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI signal.With compact size, it can easily integratein other devices. It’swidely used in surveillance and broadcasting area.
HD-SDI Fiber Converter
Overview
The LNK-MHD Series represents a professional-grademini HD-SDI fiber convertersolution engineered for modern video transmission applications. This advancedcompact SDI fiber converterdelivers reliableHD-SDI video transmissionwith embedded audio over single-mode fiber infrastructure, supporting high-quality video distribution across extended distances. Designed as a space-efficientminiature SDI fiber converter, the system enables seamless integration of HD-SDI camera systems into fiber optic networks while maintaining broadcast-grade signal quality.
This high-performanceprofessional SDI fiber converteroperates as a matched transmitter and receiver pair, ensuring end-to-end signal integrity for critical video applications. The sophisticatedHD-SDI fiber convertermaintains pristine video quality through advanced signal processing technology that eliminates compression artifacts and signal degradation. The compact form factor of thisspace-saving SDI fiber converterallows for flexible installation in equipment racks, broadcast flypacks, and embedded systems where space optimization is crucial.
The ruggedindustrial SDI fiber converteris specifically engineered for demanding environments, featuring robust construction that ensures reliable operation in both fixed installations and mobile applications. Thisversatile SDI fiber convertersupports various deployment scenarios including broadcast studios, live event production, and security surveillance systems. The device’s plug-and-play operation makes thisuser-friendly SDI fiber convertersuitable for rapid deployment in time-sensitive situations without requiring complex configuration.
Engineered for maximum compatibility, thisprofessional-grade SDI fiber converterseamlessly integrates with existing HD-SDI camera systems and production equipment. The advancedfiber-based SDI convertertechnology provides exceptional immunity to electromagnetic interference, making it ideal for installations in electrically noisy environments. Thisreliable SDI fiber convertersolution provides broadcast engineers and system integrators with a robust video transmission system that maintains signal integrity across diverse operating conditions while supporting the evolving needs of modern video production and surveillance infrastructure.
Multi-Channel Audio Embedding
Each video channel carries 8 embedded audio tracks, enabling synchronized audio-video transmission without separate cabling.
Automatic Signal Equalization
Built-in cable compensation technology maintains signal integrity over extended copper cable runs.
Application
Broadcast & Live Production
Deployed inoutside broadcast vansandlive event production, thisHD-SDI fiber convertertransmits1080P video with embedded audiooversingle-mode fiberwith80km reachforremote camera linksandstudio connections.
Security & Surveillance Systems
Ideal forcity surveillance networksandtraffic monitoring systems, the converter provideslong-distance transmissionofuncompressed HD videotocontrol centerswithindustrial temperature toleranceforoutdoor installations.
Distance Learning & Corporate AV
Used inlecture hallsandconference rooms, thisfiber converterenablescrystal-clear video transmissionbetweenmultiple campusesandremote locationswithplug-and-play operation.
Industrial Monitoring & Control
Applied infactory automationandproduction monitoring, the device deliversreliable video feedsfromHD-SDI camerasinharsh environmentswithWDM compatibilityformulti-camera systems.
Why Choose Us
Intelligent Rate Detection & Reclocking
Self-adjusting signal processing automatically locks to data rates from 270Mbps to 1.48Gbps, ensuring stable operation.
Seamless Camera System Integration
Direct compatibility with professional HD-SDI camera systems enables plug-and-play installation without signal conversion.
Extended Fiber Transmission Range
Robust optical transmission capability supporting distances up to 80km over single-mode fiber infrastructure.
Robust Power & Operation Design
Terminal block power connectivity combined with hot-swappable functionality enables maintenance-free operation.
Broadcast-Grade Signal Processing
Uncompressed digital transmission maintains original signal quality meeting professional broadcast specifications.
Technical Indexes
Fiber Optical interface
Fiber interface
Simplex LC
Transmission distance
550m-20Km
Wavelength
1310nm/1550nm
Video
Video interface
BNC
Videoinput/output impedance
75Ω
Video input/output voltage
Typical:1Vpp,Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate
Max 1.48Gb/s
Differential gain (10%～90% APL)
<1%
SDI format support
625/25 PAL
525/29.97 NTSC, 525/23.98 NTSC
720p50, 720p59.94
1080i 23/24/30/50/59.94
Video SDI standard
270Mbps (SD-SDI)
1.485Gbps (HD-SDI)
Electrical
Power adaptor
5VDC, Type-C Interface
Power consumption
<3W
LED Indicator
SDI
SDI video
P/T
Power Supply
Mechanical
Dimensions (LxWxH)
79x 27x 18mm
Weight
0.5KG/pair
Casing
Aluminum Case
Mounting Options
Desktop
Environmental
Working Temperature
-20℃～+70℃
Storage Temperature
-40℃～+80℃
Operating humidity
5%~90%non-condensing
Storagehumidity
5% ~ 90% non-condensing
MTBF
≥100000 usPaymentWe accept
