High Quality,Full HD 1080P, Uncompressed digital signal transmission,Lossless.
Don't settle for low cost,generic,not quality item which have poor image output, not stable signaltransmission. choose optimal,choose us!

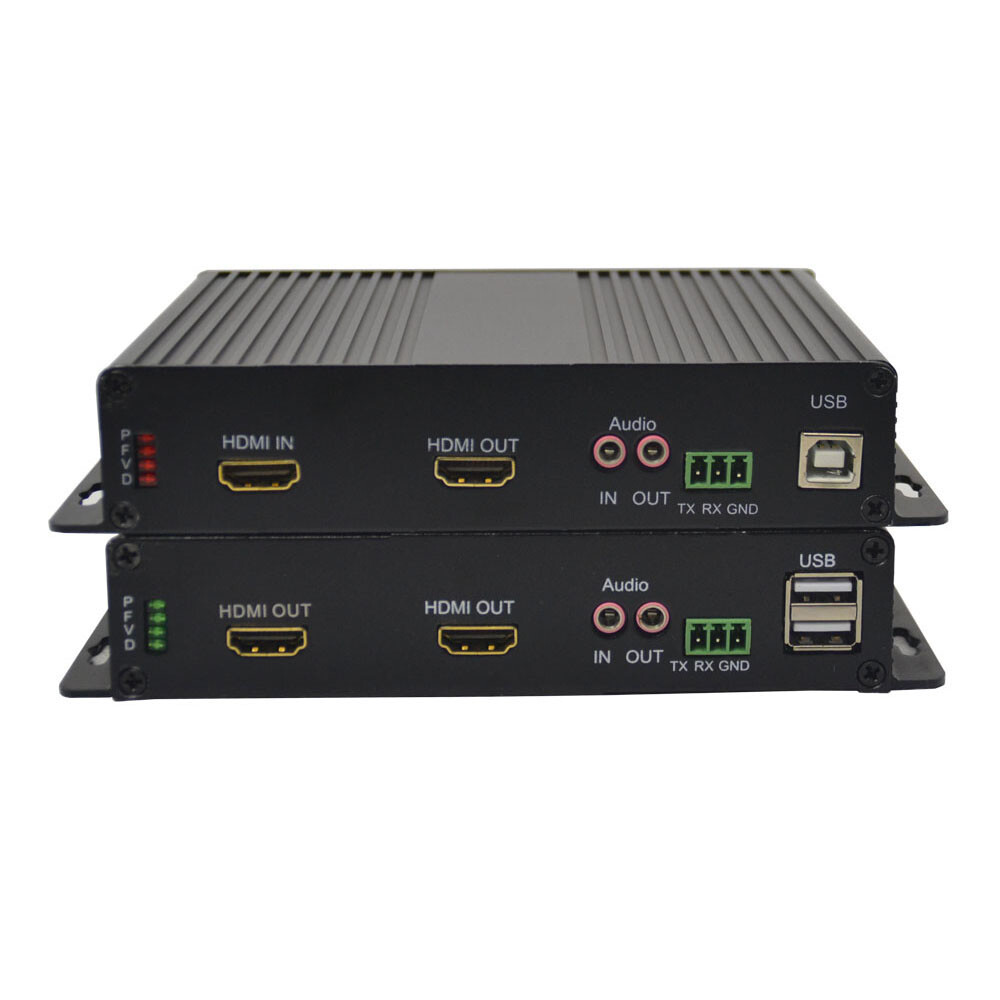

Production function:
1 x HDMI in and loop out
1 x bi-directional stereo 3.5mm audio in/out.
1x KVM USB keyboard and mouse (optional)
1x RS-232 data (optional)
FC optical interface, S/M:0~20Km, M/M:0~500M
Features:
- Adopts uncompressed digital HD video and high-speed digital optical fiber transmission advanced technology, with strong anti-interferance performance, ensure the signal lossless and super-stable.
- Long-distance transmission of HDMI video and audio signals through one optical fiber, Single-mode fiber up to 20km(12.4mi),compatible for multimode fiber up to 500m(0.31mi). S/M:40Km/60Km/80Km/100Km is available, contact us if need.
- The resolution can reach up to 1080P@60Hz, compatible for backward.
- Comply with HDMI1.3 standard protocol.
- Can automatically identify and configure various display modes, Built-in automatic equalization system, the picture is smooth, clear and stable;
- Built-in ESD electrostatic protection circuit, comprehensive protection system safety;
- Support KVM USB keyboard and mouse transmission;
- Support offerirectional audio standard 3.5mm mini jack in/out.
- Support RS232 data.
- Simple to install, no need drive, Plug and Play. Mean Time between failures: More than 30,000 hours.
Specification:
Parameter
Description
Video
Standards
HDMI 1.3; HDCP 1.2
Maximum pixel clock
165MHz
Maximum data rate
10.2Gbps
Resolution range
Up to 1920X1080P@60Hz
Connector
Female HDMI
Impedance
100Ω
Optical fiber
Interface
FCconnector (LC/SC/ST optional)
Fiber type
Universal Single Mode and Multimode
Wavelength
1310nm, 1510nm (S/M)
Transmit power
≥-9.5dBm
USB
USB female,Standard
Support USB1.0, KVM keyboard and mouse only.
Other
Power supply
The power adapter: DC 5V/2A (US/EU/UK/AU standard available)
Power dissipation
MAX 5W
Temperature
Operating: -5~ +70°c
Humidity
Operating: 5% ~ 90%
Dimension
175*120*32mm (LxWxH)
The warranty
2 years free warranty
Package contents:1x HDMI transmitter1x HDMI receiver1x FC/FC 3m singlemode fiber patch cord2 x power DC5V/2A (default ship UK, EU/US/AU is available)1 x User manual
