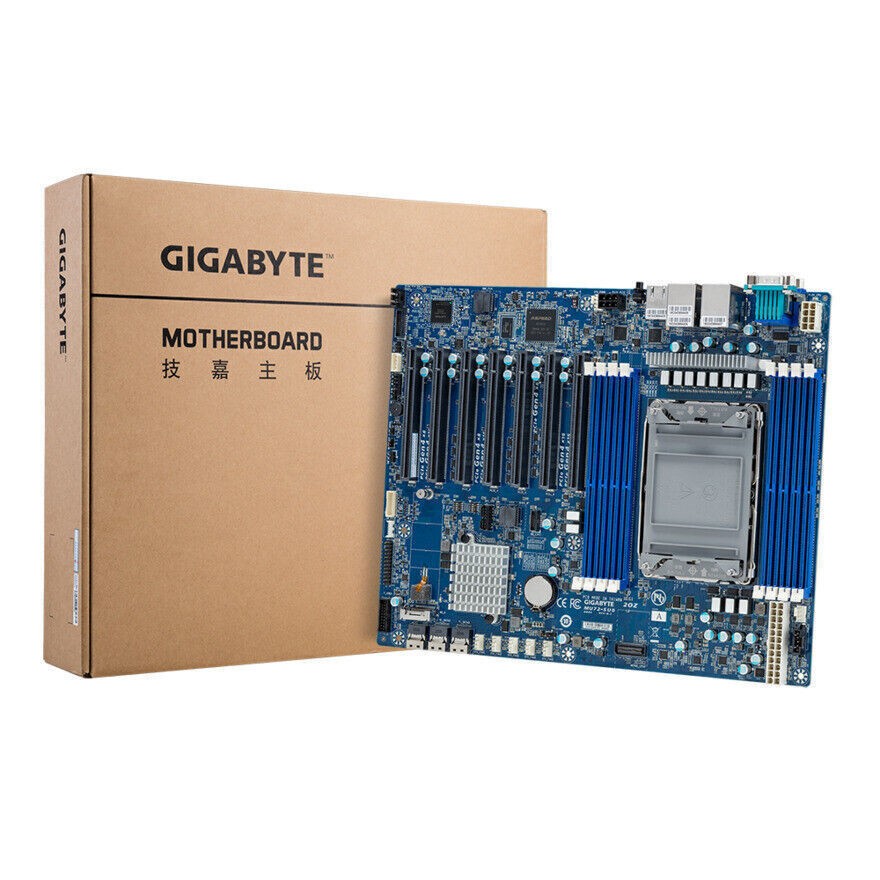

Gigabyte MU72-SU0 SERVER Motherboard ATX Mainboard Intel C621A DDR4 LGA 4189
Board Size ATX 304.8W x 244D (mm)
Processor Supported
3rd Generation Intel®Xeon®Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
10nm technology, CPU TDP up to 270W
Intel®Xeon®W-3300 Processor Family ，CPU TDP up to 270W
Socket
1 x LGA 4189，Socket P+
Chipset Description
Intel®C621A Chipset
Memory Type
8 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
Integrated Network
2 x 1Gb/s LAN ports (Intel®I210-AT)
1 x 10/100/1000 management LAN
Integrated Video Controller
Integrated in Aspeed®AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Integrated Audio Controller
N/A
Integrated SAS Controller
N/A
Integrated SATA Controller
3 x SlimSAS for 12 x SATA III 6Gb/s ports
Support RAID Function
Intel®SATA RAID 0/1/10/5
Expansion Slot
Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_6: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_5
Slot_5: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_3
Slot_3: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
Slot_2: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_1
Slot_1: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280 cards
On-Board Connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector (for PCIe slot)
3 x SlimSAS connectors
1 x M.2 slot
1 x CPU fan header
6 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Buzzer
Rear I/O Connectors
4 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010
OS Driver Supported
Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
PSU Connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin PCIe power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% US
