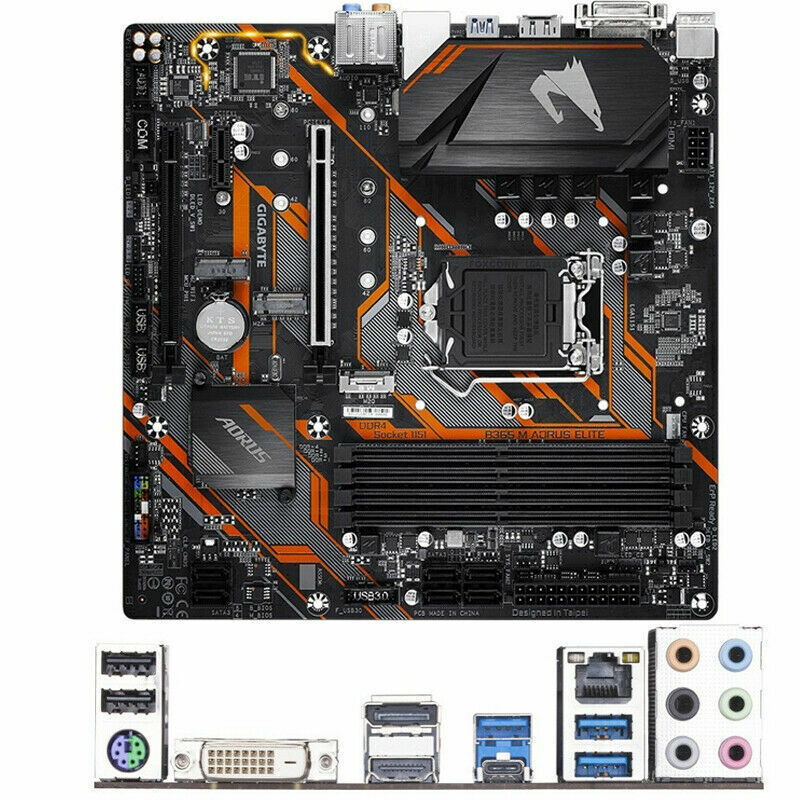

Gigabyte B365M AORUS ELITE Motherboard Intel B365 Micro ATX LGA 1151 DDR4 DIMM

CPU

Support LGA1151 socket - 9th and 8th generation processors:

Intel® Core™ i9 processor/Intel® Core™ i7 processor/Intel® Core™ i5 processor/

Intel® Core™ i3 processor/Intel® Pentium® processor/Intel® Celeron® processor

L3 cache depends on CPU

Chipset

Intel® B365

RAM

4 DDR4 DIMM slots up to 64 GB

Supports dual-channel memory technology

Support DDR4 2666/2400/2133 MHz

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

* 9th/8th Generation Intel® Core™ i9/i7/i5 processors are required to support 2666 MHz or XMP memory

Display function

Graphics-based processor with Intel® HD Graphics support:

1 DVI-D interface, can support up to 1920x1200@60 Hz resolution

* This DVI-D interface does not support the function of converting to VGA

1 DP interface, can support up to 4096x2304@60 Hz resolution

* Support DP 1.2 version, HDCP 2.2 and HDR

1 HDMI port, can support up to 4096x2160@30 Hz resolution

* Support HDMI 1.4 and HDCP 2.2

* Up to three monitors can be output at the same time

Supports maximum shared display memory*1 GB

Sound effect

Integrated Realtek® ALC892 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

Support S/PDIF output

The internet

Integrated Intel® GbE network chip (10/100/1000 Mbit)

Expansion slot

1 PCI-E x16 slot, supporting x16 operating specification (PCIEX16)

* To maximize the performance of the graphics card, be sure to install a *PCIEX16 slot when installing a graphics card

1 PCI-E x16 slot, supports x4 running specification (PCIEX4)

1 PCI-E x1 slot

(All PCI-E slots support PCI Express 3.0)

1 M.2 Socket 1 slot for wireless communication module (M2_WIFI)

Multiple Display Technology

Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage device interface

Chipset based:

1 M.2 slot (support Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD) (M2Q)

1x M.2 slot (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)

6 SATA 3.0 ports

Supports RAID 0, RAID 1, RAID 5 and RAID 10 functions

USB

Chipset based:

1x USB Type-C™ port on rear window IO, supports USB 3.1 Gen 1

5 USB 3.1 Gen 1 sockets (3 in the rear window IO, 2 need to be connected from the USB socket in the motherboard via a cable)

6 USB 2.0 ports (2 in the rear window IO, 4 need to be connected from the USB socket in the motherboard through the cable)

Internal socket

1 24PIN motherboard power socket

1 8PIN CPU power socket

1 CPU fan header

3 system fan sockets

2 programmable LED lights with power sockets

2 programmable LED strips with voltage adjustment sockets

2 RGB LED lights with power sockets

6 SATA 3.0 ports

2 M.2 SSD slots

1 motherboard jumper socket

1 front audio jack

1 S/PDIF output socket

1 USB 3.1 Gen 1 socket

2 USB 2.0/1.1 ports

1 security encryption module (TPM) socket (2x6 pin, only used with GC-TPM2.0_S)

1 onboard COM socket

1 clear CMOS data jumper

Rear panel unit connection socket

1 PS/2 keyboard/mouse interface

1 DVI-D interface

1 DP interface

1 HDMI interface

1x USB Type-C™ port, supports USB 3.1 Gen 1

3 USB 3.1 Gen 1 ports

2 USB 2.0/1.1 ports

1 RJ-45 network cable interface

6 audio interfaces

I/O Controller

Integrated iTE® I/O controller chip

BIOS

2 x 128 Mbit flash

Use an authorized AMI UEFI BIOS

DualBIOS™ support

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS

Support Windows 10 64-bit

Form Factor

Micro ATX; 24.4cmx 24.4cm
