Specifications
Gain: 7dBi
VSWR: <2.0;
Polarization: Linear Vertical;
Impedance: 50 ohm;
Direction: Omni-directional;
Feature: Fixed Wall Mount; Thru Hole Mount;
Antenna Mounting Screws Diameter: M12 (Hole Diameter: 11.76mm-11.95mm);
Connector: SMA Male Connector (with SMA Female to RP-SMA Male Adapter);
Cable Length: 3m/10 feet;
Waterproof: Rainning Proof;
Operating Temperature: -20°С ~ +80°С
Storage Temperature: -30°С ~ +85°С
Extend Signal Coverage: It provides significant gain and greatly extends the usable distance between the gate opener and the remote control, do not need to get out of car to walk closer to the gate opener for it to work.

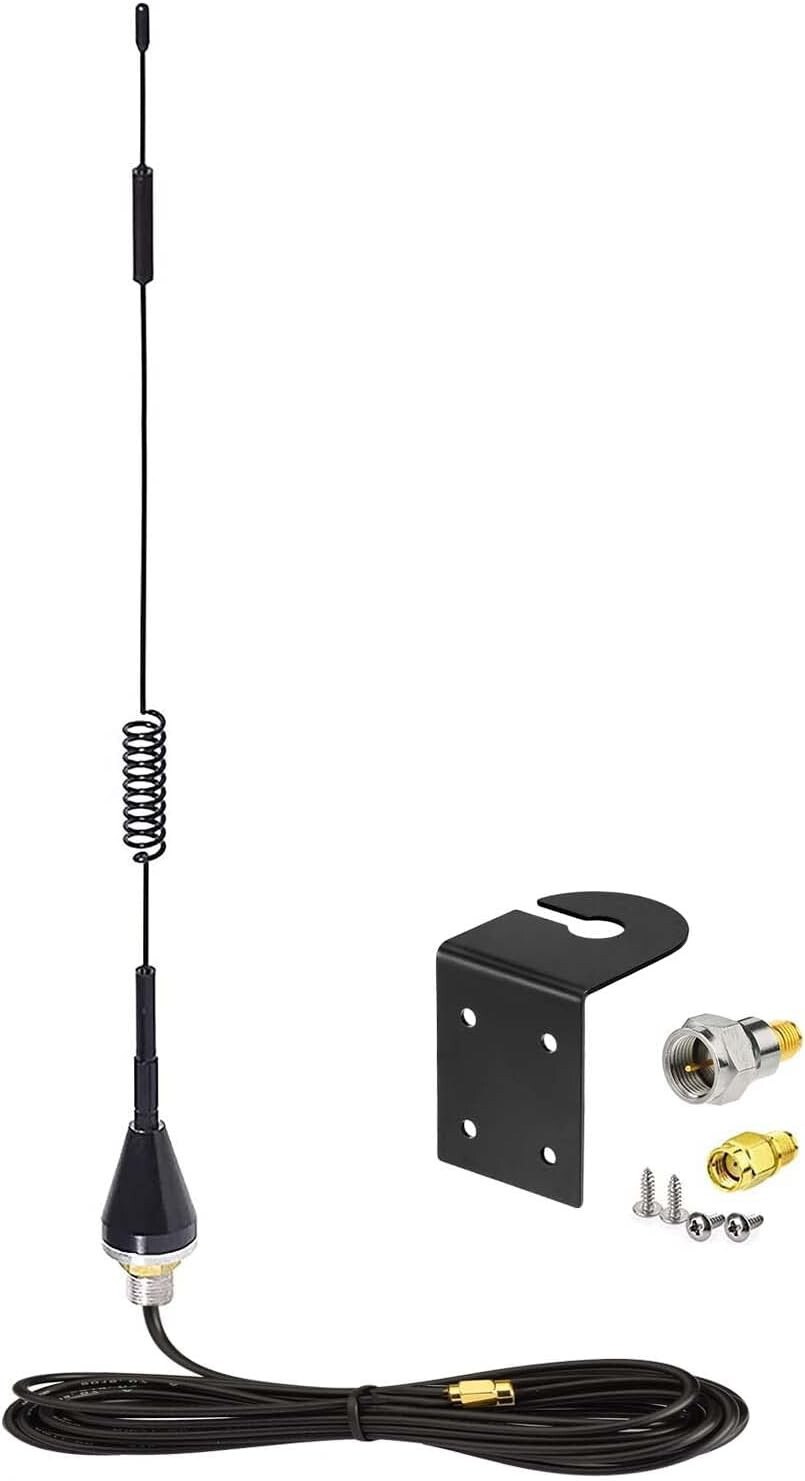

Package List:
1 x Gate Opener Antenna
1 x Wall Mount Fixed Bracket
1 x SMA Female to RP-SMA Male Adapter
1 x SMA Female to F Male Adapter
4 x Self-tapping Screws (As the Picture Shown)
Compatible with
Compatible with: LiftMaster LA400 Driveway Automatic Gate Opener / Ghost Controls TSS1XP DTP1XP DTP1 DEP2 TDS2 Electric Gate Openers / Multicode Gate Opener; [Connection: F Type Adapter Connector Plug and Play]
Compatible with: All Series ALEKO / CO-Z / TOPENS and Other 433MHz Wireless Gate Opener! [Connection: Soldering is Required to Install the Antenna, desoldered the old tiny wire and soldered the coax cable]
