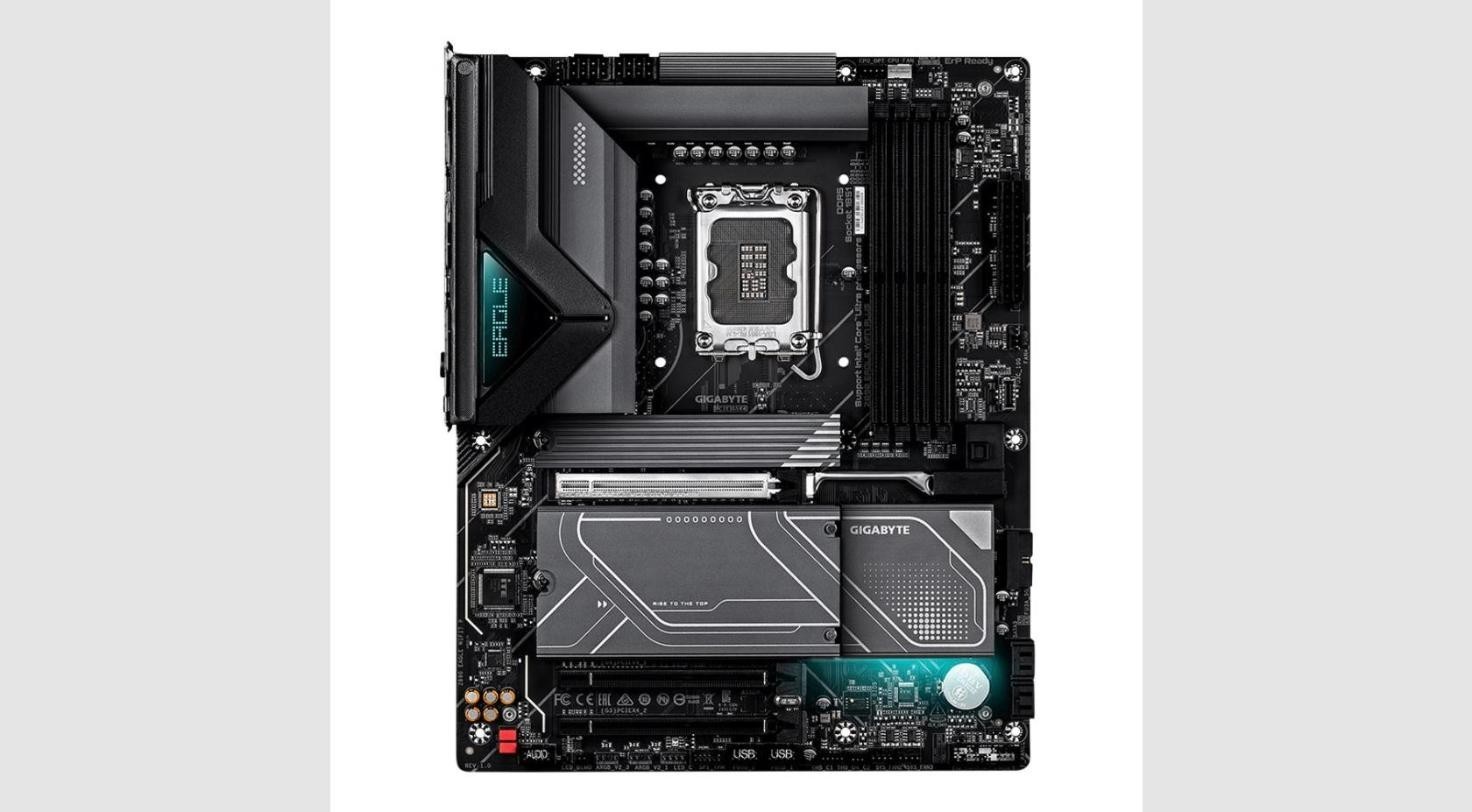

GIGABYTE • INTEL Z890 PLATFORMGIGABYTE Z890 EAGLE WIFI7 PLUSIntel LGA 1851 • ATX Motherboard • DDR5 • PCIe 5.0 • Wi-Fi 7$119.00FREE Shipping — FedEx Ground EconomyKey Features⚡ Intel Core Ultra Ready
LGA 1851 socket on the Intel Z890 Express chipset — full support for Intel Core Ultra (Series 2) processors with overclocking.🚀 PCIe 5.0 Graphics & Storage
PCIe 5.0 x16 slot for next-gen GPUs plus a PCIe 5.0 x4 M.2 slot for blazing-fast NVMe SSDs.💾 DDR5 up to 9466+ MT/s (OC)
4 x DIMM slots, dual channel, up to 256GB. Supports XMP and the latest CUDIMM modules.📶 Wi-Fi 7 + 2.5GbE LAN
Intel Wi-Fi 7 (BE202) with Bluetooth 5.4 and Realtek 2.5 Gigabit Ethernet for fast wired and wireless networking.🔌 USB4 Type-C
Rear USB4 Type-C port with DisplayPort 2.1 video output, plus USB 3.2 Gen 2 ports and a front Type-C header.🗃 4 x M.2 + 4 x SATA
Four M.2 slots (1 x PCIe 5.0, 3 x PCIe 4.0) and four SATA 6Gb/s ports with RAID 0/1/5/10 support.SpecificationsModelGIGABYTE Z890 EAGLE WIFI7 PLUSSocketIntel LGA 1851 (Intel Core Ultra processors)ChipsetIntel Z890 ExpressForm FactorATX (30.5cm x 24.4cm)Memory4 x DDR5 DIMM, dual channel, up to 256GB, up to 9466+ MT/s (OC), XMP & CUDIMM supportExpansion Slots1 x PCIe 5.0 x16 (CPU) • 2 x PCIe 4.0 x16 (running at x4)M.2 Storage1 x PCIe 5.0 x4 (up to 25110) • 2 x PCIe 4.0 x4 • 1 x PCIe 4.0 x4 / SATASATA4 x SATA 6Gb/s • RAID 0/1/5/10 (NVMe & SATA)Rear USB1 x USB4 Type-C • 2 x USB 3.2 Gen 2 Type-A • 3 x USB 3.2 Gen 1 • 4 x USB 2.0NetworkingRealtek 2.5GbE LAN • Intel Wi-Fi 7 (BE202) • Bluetooth 5.4AudioRealtek ALC1220 codec • 7.1-channel HD audio • S/PDIF OutVideo Outputs1 x USB4 Type-C (DP 2.1) • 1 x DisplayPort 2.1 — up to 4K @ 144HzExtrasQ-Flash Plus • rear power/reset/Clear CMOS buttons • addressable RGB Gen2 headers • Thunderbolt 5 AIC connectorsShipping & Handling📦FREE Shipping
