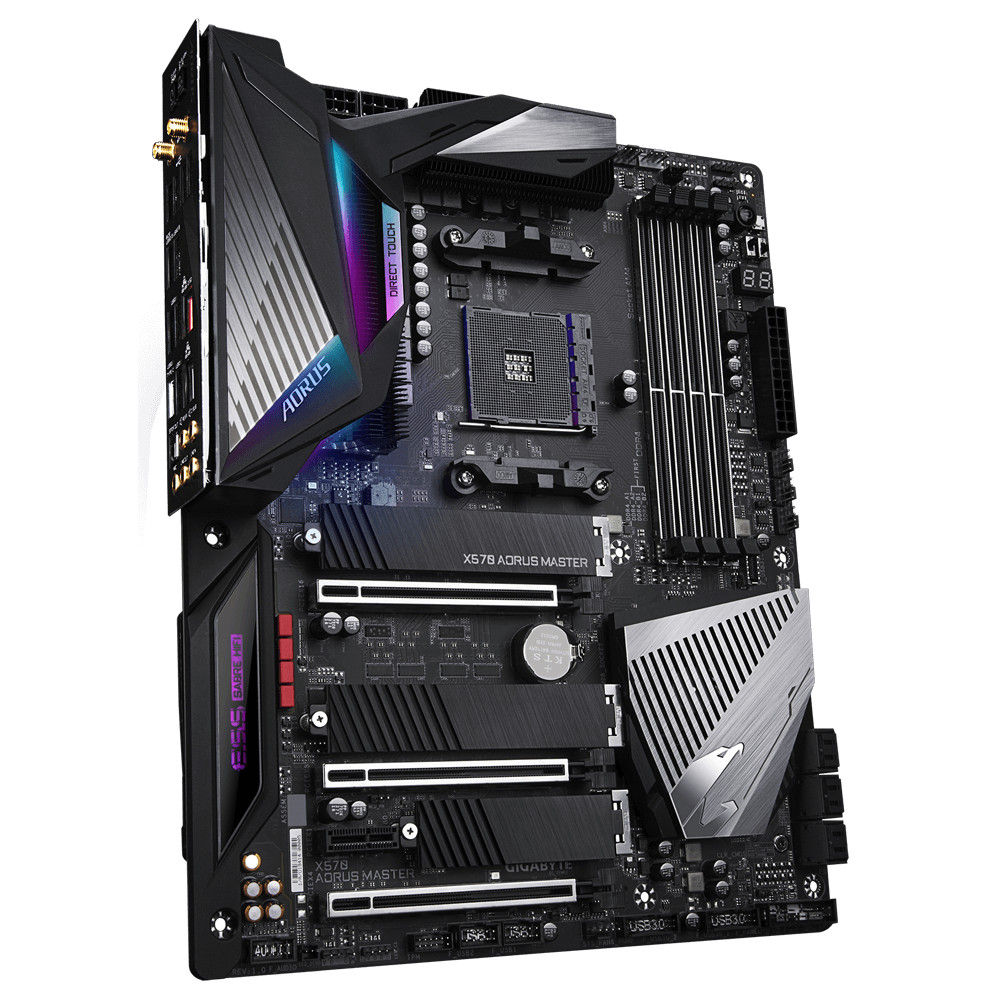

Product Description GIGABYTE X570 AORUS MASTER motheboard X570 AM4 4*DDR4 128G ATX Tested ok GIGABYTE X570 AORUS MASTER (Rev1.0 /1.1/1.2) Specifications
Form Factor: ATX, 30.5cm × 24.4cm Chipset: AMD X570 (Chipset with built-in cooling fan)
CPU
- Socket: AM4
- Supported CPUs: AMD Ryzen™ 1/2/3/4000G/5000 /5000G Series (BIOS update required for Ryzen 5000)
- VRM: Direct 14-phase Infineon Digital VRM with PowIRstage; 2×8Pin CPU power connectors; Fins-Array stacked heatsink + direct-touch heatpipe + full metal backplate
Memory
- 4×DDR4 DIMM, Dual Channel; Supports ECC/Non-ECC unbuffered memory & XMP
- Max Capacity: 128GB (32GB per DIMM)
- Memory Speed: DDR4 3200 for 3rd Gen Ryzen; DDR4 2933 max for 1st/2nd Gen Ryzen, supports manual OC
PCIe & M.2
- PCIe Slots
- PCIe ×16 (CPU lane, metal shield): PCIe 4.0 x16 with 3rd Gen Ryzen; runs x16+x8 for dual GPU
- PCIe ×16 (Chipset lane): PCIe 4.0 x8
- PCIe ×4 (Chipset lane): PCIe 4.0 x4
- 3× M.2 slots (all equipped with M.2 thermal guard)
- M.2_1: PCIe4.0 x4 NVMe (CPU lane, 2242/2260/2280/22110)
- M.2_2 / M.2_3: PCIe4.0 x4 / SATA dual-mode (Chipset lane)
- SATA: 6×SATA 6Gb/s (Note: SATA channels may be shared when certain M.2 devices are installed)
Network
- Realtek 2.5GbE LAN + Intel 1GbE LAN, cFosSpeed traffic shaper
- Intel WiFi 6 AX200, 2T2R, Bluetooth 5.0
Audio (AMP-UP)
- Realtek ALC1220-VB + ESS SABRE9118 DAC, WIMA audio capacitors, 125dB SNR, isolated audio PCB, op-amp replaceable design
USB Rear I/O Panel
- USB3.2 Gen2 Type-C ×1
- USB3.2 Gen2 Type-A (Red) ×2
- USB3.2 Gen1 Type-A ×4
- USB2.0 ×2
Front Headers
- USB3.2 Gen2 Type-C front header ×1
- USB3.2 Gen1 headers ×2 (expand to 4 Type-A ports)
- USB2.0 headers ×2
BIOS & Features
- DualBIOS (Dual 128M Flash), Q-Flash Plus, supports BIOS flash without CPU/RAM/GPU
- Smart Fan5: Multi-point temperature sensing, hybrid fan headers, FAN STOP, noise detection
- RGB FUSION 2.0: 3×RGB, 2×ARGB digital LED headers, multi-zone onboard lighting
- Integrated I/O shield + full metal backplate
- 24Pin main power connector
Rear I/O Interfaces
HDMI, DP video outputs (only available for Ryzen CPUs with iGPU), 2.5G LAN port, Gigabit LAN port, WiFi antenna connectors, 5×3.5mm audio jacks + S/PDIF optical, USB ports, PS/2 keyboard/mouse port
Important Distinction: X570 AORUS MASTER ≠ X570S AORUS MASTER (X570S has no chipset fan, 4 M.2 slots and upgraded VRM)
