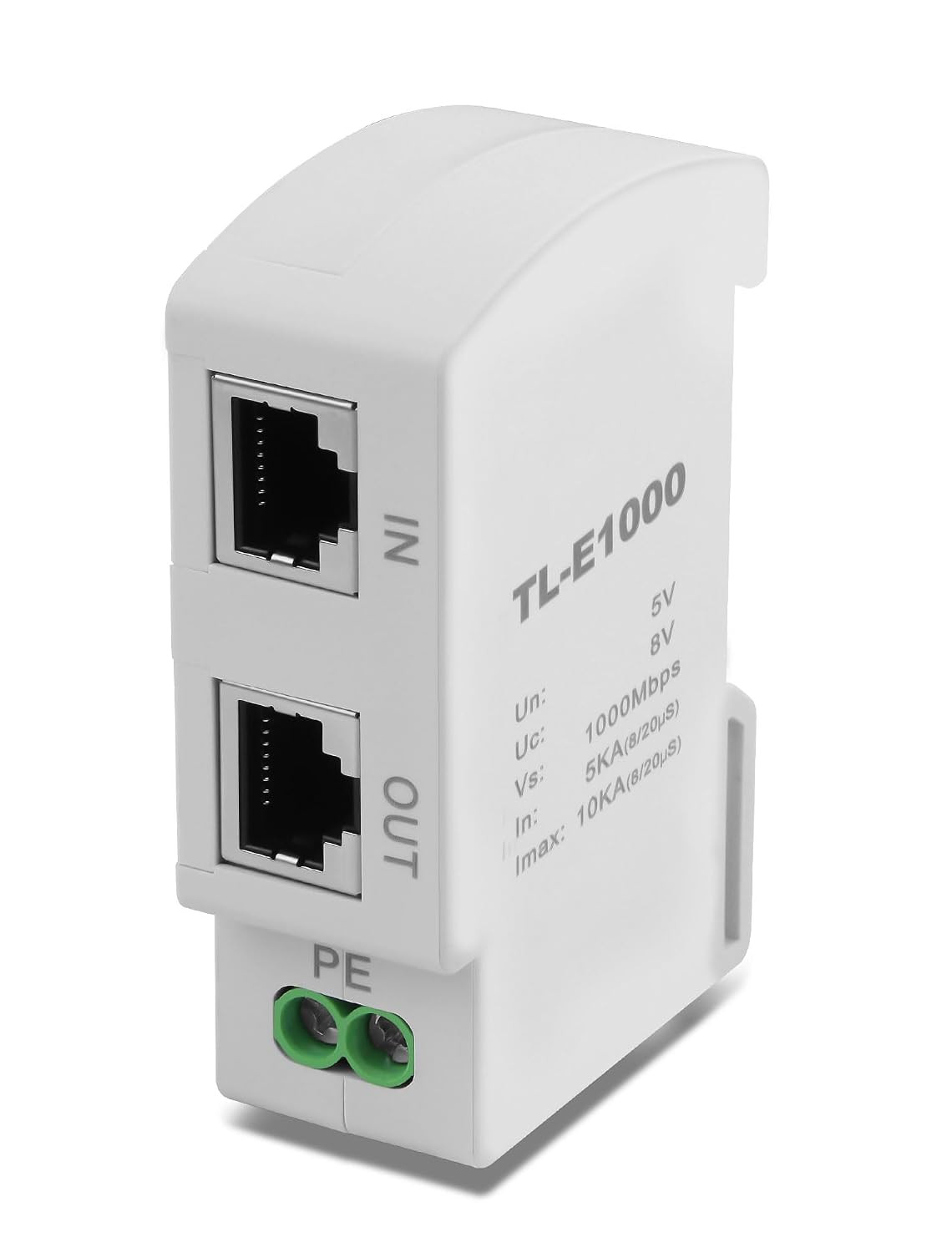

Ethernet Surge Protector 1000Mbps DIN Rail Network Surge Protector LAN Network
This ethernet surge protectors an essential device for protecting your high-speed network communication systems and network equipment from lightning strikes and voltage surges. Its advanced design and high-quality components ensure reliable performance and long-term durability, making it a must-have for any network infrastructure.
Product Details:
1. Product Name:** Network Surge Protector
2. Model:** 100M, 1000M, 1000MPOE
3. Continuous Working Voltage (Un): 5V (100M, 1000M),
4. Nominal Discharge Current (In, 8/20μs):5KA
5. Maximum Discharge Current (Imax, 8/20μs):10KA
6. Limited Voltage (Up): 8V (100M), 15V (1000M)
7. Data Transmission Rate (Vs): 100M bps (100M, 1000M)
8. Insertion Loss (Ae): ≤0.2dB
9. Response Time (Ta): 10ns
10. Interface Type: RJ45
11. Interface Quantity: Single-route
12. Protected Pins: Pin1, 2, 3, 6 (100M, 1000M)
13. Installation Method: Series connection(Standard 36mm DIN-rail mounting)
14. Working Environment:** Temperature -25℃ to +65℃, Humidity ≤95% (25-30℃)
Package:
1 x Ethernet surge protectors
- Multi-Level Protection Design: Ethernet surge protector features a multi-stage protection circuit design, ensuring comprehensive protection against lightning-induced voltage, power grid fluctuations, electrostatic discharge, and surge voltages caused by large load startups. It effectively safeguards your high-speed network communication lines and network devices from potential damage.
- High - Quality Components for Reliable Performance: Equipped with core components from manufactured with advanced production processes, DIN rail surge protector features high surge capacity (10KA maximum discharge current), low residual voltage (8V or 15V depending on the model), fast response time (10ns), stable performance, and low insertion loss (≤0.2dB). This ensures your network devices operate smoothly and reliably.
- Easy Installation and Space - Saving Design: Din rail mount ethernet switch mounted designs, as well as 16 - or 24 - circuit 19 - inch integrated rack - mounted options, this surge protector offers flexible installation methods. Whether you need to protect a single device or multiple devices in a centralized location, it provides convenient and space - saving solutions.
- Durable and Low - Maintenance Design: Shielded RJ45 lightning suppressor LAN network is designed to operate in a wide temperature range (-25℃ to +65℃) and humidity conditions (≤95% at 25-30℃), The grounding terminal ensures a secure connection, ensuring long-term reliability and durability.
- Suitable for a Wide Range of Network Equipment: This RJ45 surge protector is compatible with various network devices, including computer network communication transmission systems, network switches, large - scale routers, and more. It supports data transmission rates of 100Mbps or 1000Mbps, ensuring your network operates at its optimal speed while providing reliable protection.
Item Specification
- Connector Type RJ45 Cable Type Ethernet Compatible Devices function(f) {var { function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); various network devices, including computer network communication transmission systems, network switches, large - scale routers, and more See more Other Special Features of the Product Durable and Low - Maintenance Design, Easy Installation and Space - Saving Design, Multi-Level Protection Design Compatible Phone Models No Compatible Phone Models Ethernet Cable Category Cat 6 Connector Gender Female-to-Female Data Transfer Rate 1000 megabits_per_second Number of Pins 8 Frequency 1000 MHz Maximum Current 10 Kiloamps Maximum Voltage 15 volts Color gray Model Gigabit Ethernet Surge Protector Manufacturer Lemeng Part Number cer-202503010925 Recommended Uses For Product Network Communication Indoor Outdoor Usage Indoor Unit Count 1 Count Item Weight 58 g Number of Items 1 Special Feature function(f) {var { function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); Durable and Low - Maintenance Design, Easy Installation and Space - Saving Design, Multi-Level Protection Design See more
Dimensions Shipping Returns Additional Info
- Product Dimensions: . Weight: 58.0 grams
