NEW IN ORIGINAL BOX

See photos for actual item!

Price is for 1 item.

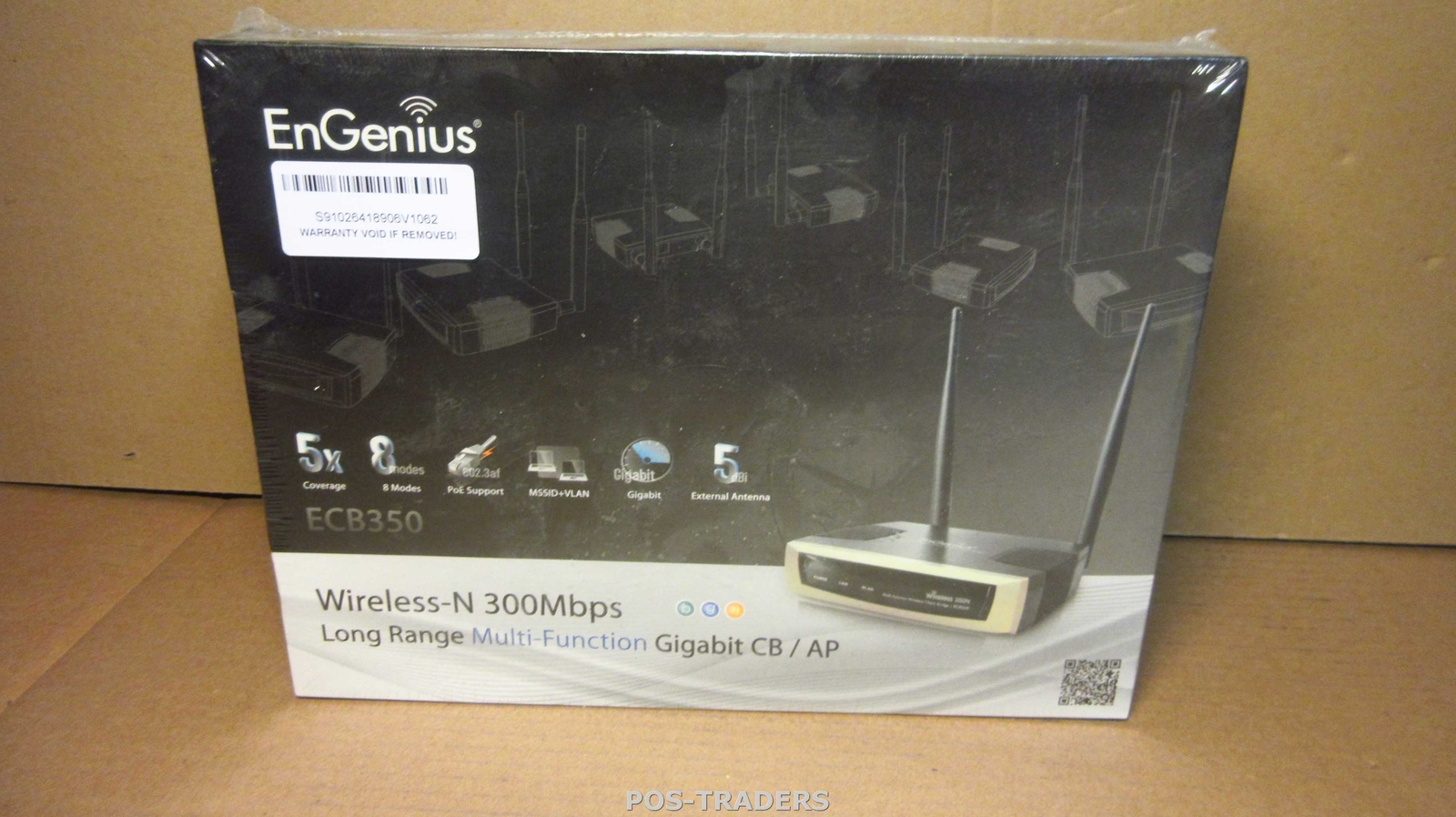

EnGenius ECB350 Wireless Indoor AP/CB/WDS/Repeater

TheEnGenius ECB350is a 2.4GHz Wireless-N Indoor Access Point with 29 dBm transmit power for long range coverage, wireless speeds up to 300Mbps and a Gigabit port for connecting to a switch or router. It’s ideal for expanding a network to support additional users. Includes Zone Controller AP Management Software.

EnGenius ECB350 Key Features

• 300Mbps 11n
• Supports PoE
• 5dBi Antenna with Reverse SMA connector
• High Power, Long range Wi-Fi
• Wireless-N with multiple operation modes
• Gigabit Ethernet port

TheECB350is a 300Mbps wireless-n multi-function gigabit Access Point / Client Bridge which offers unlimited coverage, strong penetration, secure network management and 802.3af PoE connection.

TheECB350is designed with 8 operation modes, users can set different modes in different environments.

EnGenius ECB350 - Technical Specifications

Hardware Specifications

• MCU/RF: AR7242 + AR9283
• Memory: 32 MB
• Flash: 8 MB
• Physical Interface: LAN: 1 x 10/100/1000 Gigabit Ethernet (RJ-45) port, Reset Button, Power Jack
• LEDs Status: Power/Status, LAN (10/100/1000Mpbs), WLAN (Wireless connection)
• Power requirement: Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz (Depends on different countries), Active Ethernet (Power over Ethernet, IEEE802.3af), 48 VDC/0.375A, Device: 12V/1A

RF Specifications

• Wireless standard: IEEE802.11 b/g/n
• Frequency: 2.400 ~ 2.484GHz (b/g/n)
• Modulation Technology: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK
• Operating Channels: 11 channels
• Transmit Power: 802.11b(2.412 ~ 2.472 GHz) 29 dBm @ 1Mbps, 29 dBm @ 2Mbps, 29 dBm @ 5.5Mbps, 29 dBm @ 11Mbps
  802.11g(2.412 ~ 2.472 GHz) 29 dBm @ 6Mbps, 29 dBm @ 9Mbps, 28 dBm @ 12Mbps, 28 dBm @ 18Mbps, 24 dBm @ 24Mbps, 24 dBm @ 36Mbps, 23 dBm @ 48Mbps, 23 dBm @ 54Mbps
  802.11n(2.412 ~ 2.472 GHz) 26 dBm @ MCS0/MCS8, 26 dBm @ MCS1/MCS9, 25 dBm @ MCS2/MCS10, 25 dBm @ MCS3/MCS11, 24 dBm @ MCS4/MCS12, 24 dBm @ MCS5/MCS13, 23 dBm @ MCS6/MCS14, 23 dBm @ MCS7/MCS15
• Receiver Sensitivity: 802.11b (2.412 ~ 2.472 GHz) best ≤ -98 dBm
  802.11g (2.412 ~ 2.472 GHz) best ≤ -93 dBm
  802.11n (2.412 ~ 2.472 GHz) best ≤ -93 dBm
• Antenna: 2x external 5dBi SMA antennas (Diversity support)

Environment and Physical

• Temperature Range: Operating: 0 to 50° C (32° to 122° F), Storage: -20 to 60° C (-4° to 140° F)
• Humidity (non-condensing): Operating: 90% or less, Storage: 90% of less
• Dimensions: L: 5.32"(135mm), W: 4.14"(105mm), H: 1.18"(30mm)
• Weight: 0.77 lb. (280g)
• Certifications: FCC, CE, IC

Management

• Tx Power Control: Adjust transmit power by dBm
• Configuration: Web-based configuration (HTTP)/Telnet
• Telnet Server: CLI
• Firmware Upgrade: Upgrade firmware via web browser
• Administrator Setting: Administrator Username & Password change
• Reset Setting: Reboot (press 1 second). Reset to Factory Default (press 10 second)
• System Monitoring: Status Statistic and Event log
• SNMP: V1 , V2c
• MIB: MIB I , MIB II(RFC1213) and Private MIB
• Traffic Measurement: Per interface
• Auto-channel Selection: Automatically selecting least congested channel
• Bandwidth Measurement: IP range and bandwidth management
• Backup & Restore: Save & restore settings through Web interface
• Diagnosis: IP pinging statistics
• AP Detection: Scanning for available EnGenius APs

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise
