Manufacturer: Eaton

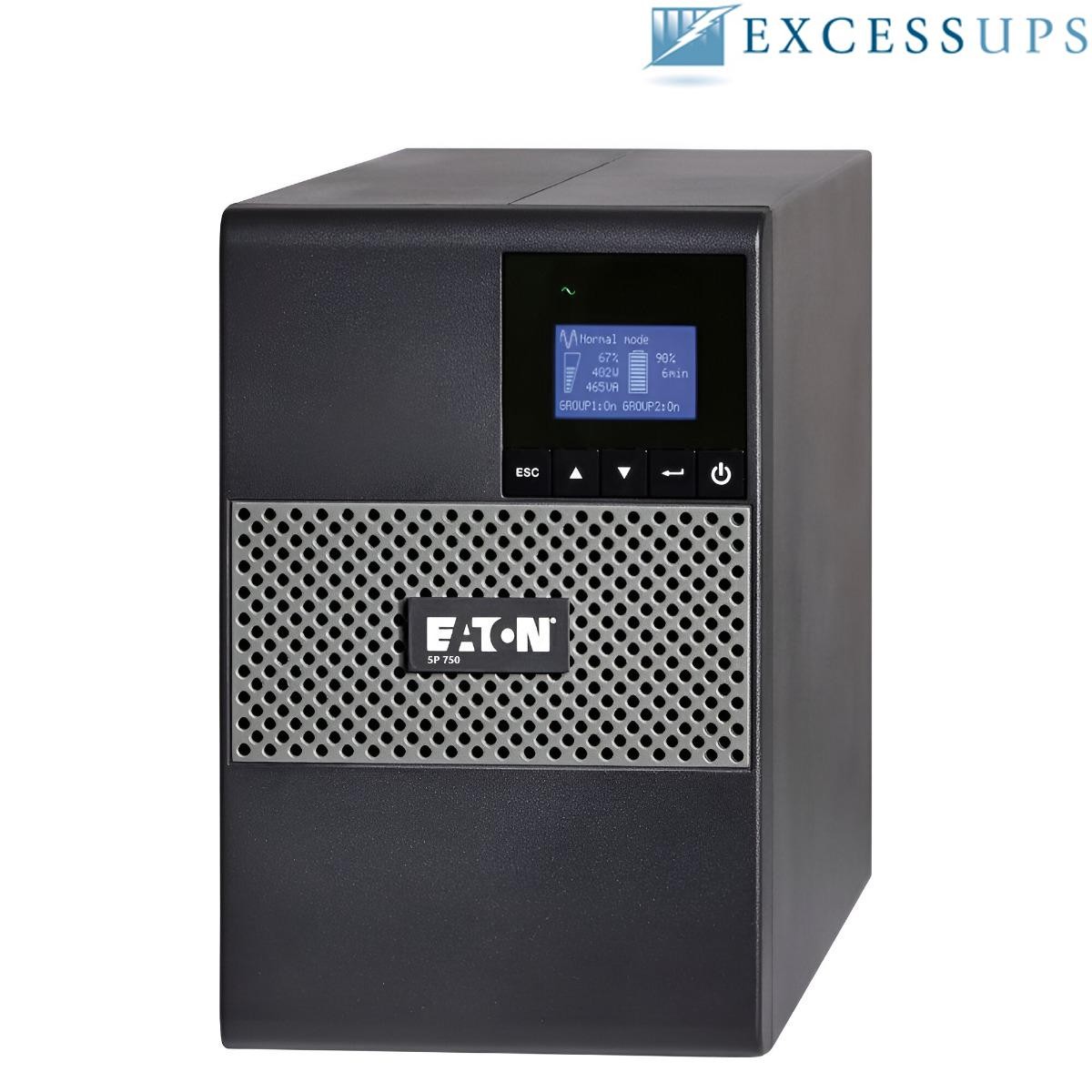

Model: Eaton 5P 750VA 600W Tower, 15A, 120V
Condition: New batteries, refurbished UPS
Part Number: 5P750
Maximum output: 600W / 750VA
Typical backup time at half load: ~13 minutes (300 Watts)
Typical backup time at full load: ~4 minutes (600 Watts)
Warranty: 1 year full replacement warranty
Eaton 5P – 750VA 600W Tower 120V 5P750 - User Manual
5P750 – Eaton UPS 750VA style="line-height: 150%;">Product Name
Eaton 5P UPS
Catalog Number
5P750
Product Length/Depth
13.6 in
Product Height
9.1 in
Product Width
5.9 in
Product Weight
35.6 lb
Compliances
CE Marked
RoHS Compliant
Certifications
cULus Listed
UL 1778
UL 497A
IEC 62040-2 C1-C2 / IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B
Product:
Battery Management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Output Waveform
Sine wave
VA Rating
750VA
Wattage
600W
Output Power Factor
0.8
Form Factor
Tower
Receptacle
(8) 5-15R
Input Connection
5-15P
Noise Level
<45 dB at 1 meter
Feed Type
1
User Interface
LCD Graphical Display
Battery Replacement
User Replaceable
Battery Type
Sealed, lead-acid
Efficiency
97%
Voltage
120V
Input Cord Length
6 ft
Temperature Range
0° to 35°C (32° to 95°F)
Communication
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
Relative Humidity
0-90% Non-condensing
Special Features
ROO/RPO: Rear terminal block connector for remote on/off and power off
Color
Black/Silver
Extended Battery Capability
None; See Eaton 5PX UPS for extended runtimes options
Output Voltage Range
102-132 Vac
Quantity
1
Topology
Line-interactive
BTU Rating
Online: 82, Battery 389
Type
UPS
Output Nominal Voltage
120V default (100/120/125V)
Input Nominal Voltage
120V default (100/110/120/127V)
Input Power Factor
0.8
Expansion Slots
One slot; Gigabit Network Card (Network-M2) is optional
Input Voltage Range
89-151 Vac (adjustable to 70-153 Vac)
Input Frequency Range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
Nominal Frequency
50-60 Hz
Altitude
Up to 10,000 ft (3000m) without de-rating
