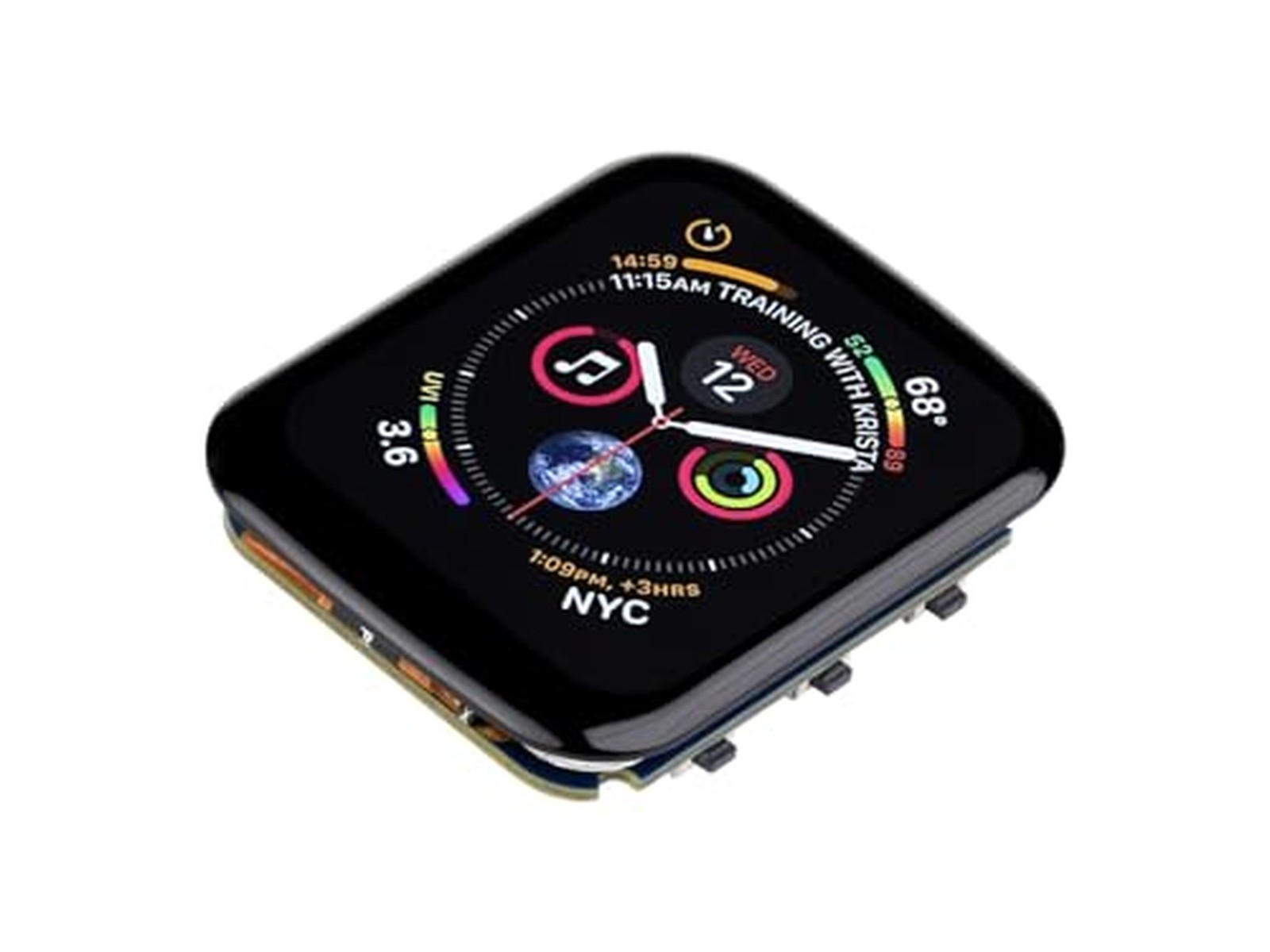

ESP32-S3 MCU Board with 1.69inch LCD Touch Display, 240×280 Pixels 262K Color, Support 2.4GHz Wi-Fi & Bluetooth 5, 32-Bit LX7 Dual-Core Processor
Product Details

• Brand: waveshare
• Model Name: ESP32-S3-1.69inch-Touch-LCD
• Ram Memory Installed Size: 8 MB
• Memory Storage Capacity: 16 MB
• CPU Speed: 240 MHz
• RAM Memory Installed: 8 MB
• Memory Storage Capacity: 16 MB
• Processor Speed: 240 MHz
• Connectivity Technology: Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE), USB-C
• Processor Brand: Espressif
• Compatible Devices: Personal Computer, Laptop, Desktop, Server
• RAM Memory Technology: PSRAM
• Processor Count: 2
• Brand: waveshare
• Model Name: ESP32-S3-1.69inch-Touch-LCD
• Number of Items: 1
• UPC: 790885235870
• Manufacturer: Waveshare

• ESP32-S3 1.69inch touch display development board equipped with ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Onboard 1.69inch capacitive touch LCD screen, 240280 resolution, 262K colors, can clearly display color pictures
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc

Overview ESP32-S3-Touch-LCD-1.69 is a low-cost, high-performance MCU board,tiny size, with onboard 1.69inch LCD display, Lithium battery rechargemanager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, andso on, which makes it easy for you to develop and integrate it into productsquickly. Features Equipped with ESP32-S3R8 32-bit LX7 dual-core processor, upto 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5(LE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard8MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up todate, easier to use Onboard 1.69inch 240×280 pixels 262K capacitive touchdisplay for clear color pictures Built-in ST7789V2 display driver and CST816Tcapacitive touch chip, using SPI and I2C communication respectively,effectively saving the IO resources Onboard QMI8658 6-axis IMU (3-axisaccelerometer and 3-axis gyroscope) for detecting motion gesture, countingsteps, etc. Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header(supports charging) for RTC function requirement Onboard RST, BOOT and aprogrammable PWM button for easy custom function development Onboard 3.7VMX1.25 lithium battery recharge/discharge header Reserved pads of 4 × GPIO,I2C, and UART interface, for connecting peripherals and debugging Supportsflexible clock, module power supply independent setting, and other controls torealize low power consumption in different scenarios High touch screentransmittance, fast response and long lifetime Package Content ESP32-S3-Touch-LCD-1.69 x1 NOTE: Online Development Resources and Technical Support areprovided, please feel free to contact us if you have any problem!
