EC AC Cooling Fan 120X120X25Mm 120Mm AC 110V 115V 120V 220V 240V for Chassis Cas For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

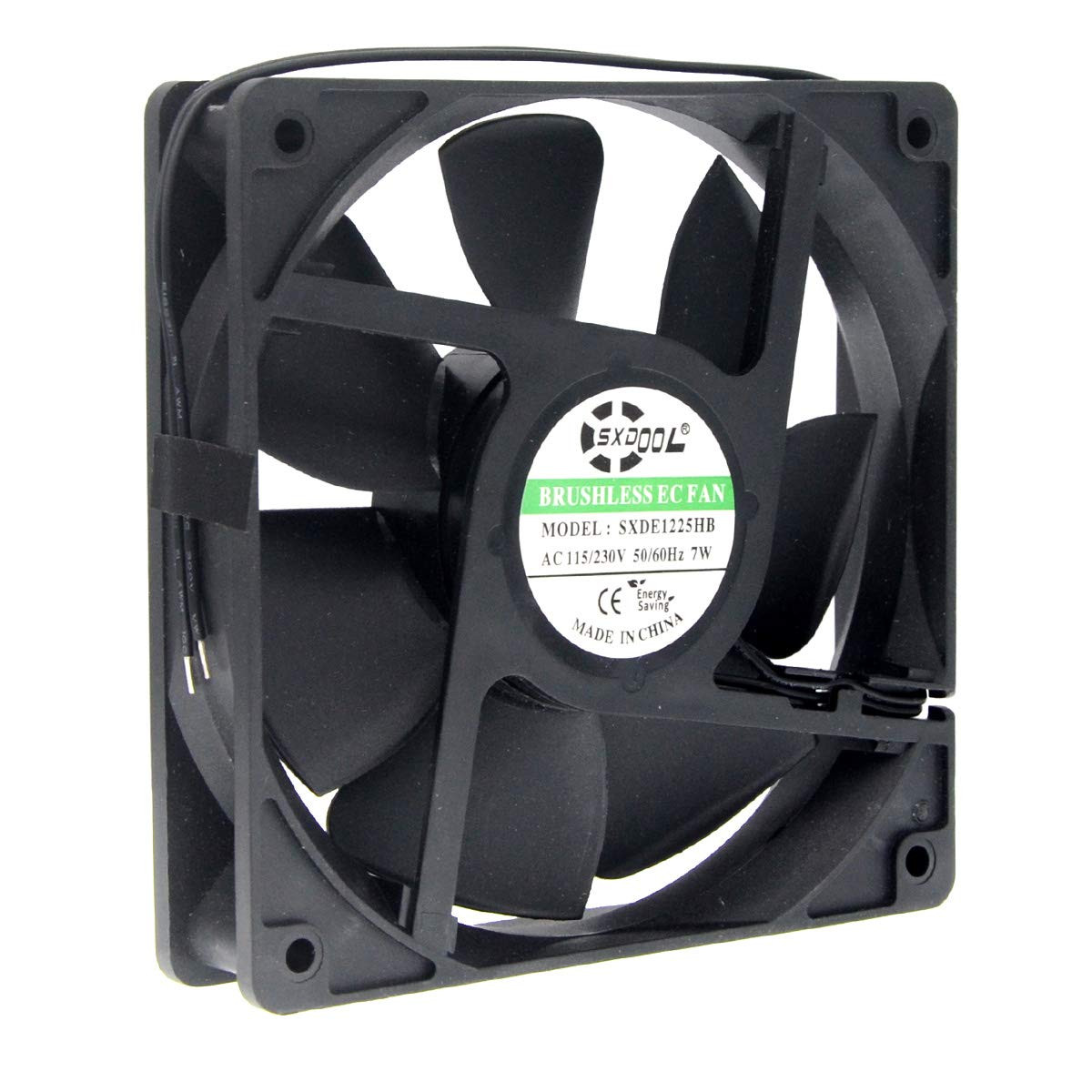

EC AC Cooling Fan 120X120X25Mm 120Mm AC 110V 115V 120V 220V 240V for Chassis Cas

Price: US $35.72

EC AC Cooling Fan 120X120X25Mm 120Mm AC 110V 115V 120V 220V 240V for Chassis Case CabinetsDescription Part Number SXDE1225HB Power Connector Type 2-Pin Cooling Method Air Number of Items 1 Noise Level 38 Decibels Wattage 7 watts Material Plastic Material Type Plastic Item Dimensions L x W x H 0.98"L x 4.72"W x 4.72"H Compatible Devices Desktop Product Dimensions 0.98"L x 4.72"W x 4.72"H Voltage 120 Volts (AC) Maximum Rotational Speed 2800 RPM Air Flow Capacity 100.2 Cubic Feet Per Minute Model SXDE1225HB Unit Count 1.0 Count

❶ Wide Voltage Range:90-270V AC
❷ High Air Flow&Rotation,But Low Power Consumption
❸ 120X120X25mm | 90-270V AC | 7W | 2800RPM | 100.2CFM | 38dBA | 2-wire Lead
❹ Dual-ball bearings have a lifespan of 50,000 hours and allows the fans to be laid flat or stand upright.
❺ Package include: 1Pcs Fan | 2pcs Grill | 4pcs Mounting Screws & Nuts

Product description

Brand new fan with excellent quality .Easily installed and exhaust the hot air from inside the case. Increase air flow in your system.Cooling down the entire case. Extend your system life EC fans come with the Hydraulic ，super long life EC fans could be connected directly to an AC mains supply.（AC 110v 115v 120v 220v 240v） The convert AC to DC and control the fan speed by regulating the power to the motor. EC motors are around 30% more efficient than AC motors, because the secondary magnetic field comes from permanent magnets rather than copper windings. Parameters: Dimensions: 120mm(L)×120mm(W)×25mm(H) Mountings Hole:105.0±0.3mm Connector: 2 wire (without connector) Rated Voltage: AC 110V-240V Bearing Type: Dual Ball Rated Speed: 2600RPM±10% Noise Level: 38dBA±10% Air Flow: 100.2CFM±10% Cable Length: 20cm Life: 50000Hours Weight: 70g/pcs Power:7.0W

SXDOOL COOLING

SXDOOL EC Axial fan is high efficiency brushless DC motors which is driven directly from an AC power supply. Power consumption is reduced by approximately 60-80% compared with our conventional AC fans and shade pole motors.

Reliable Supplier
Cooling Fan Manufacturer

120mm 120V 240V Computer Cooling Fan Energy Saving Design

EC is Electronically Commutated, inpute voltage is AC 115V 120V 220V,but the motor runs on the DC Voltage
if speed is slightly increased or decreased, output and energy usage will remain relatively linear. A similar AC fan in that environment would either drastically drop airflow output or drastically increase energy usage.
EC motors can also have windings made in both directions that would allow the reversal of polarity to reverse blade spin direction; this is a feature that not all EC have.
