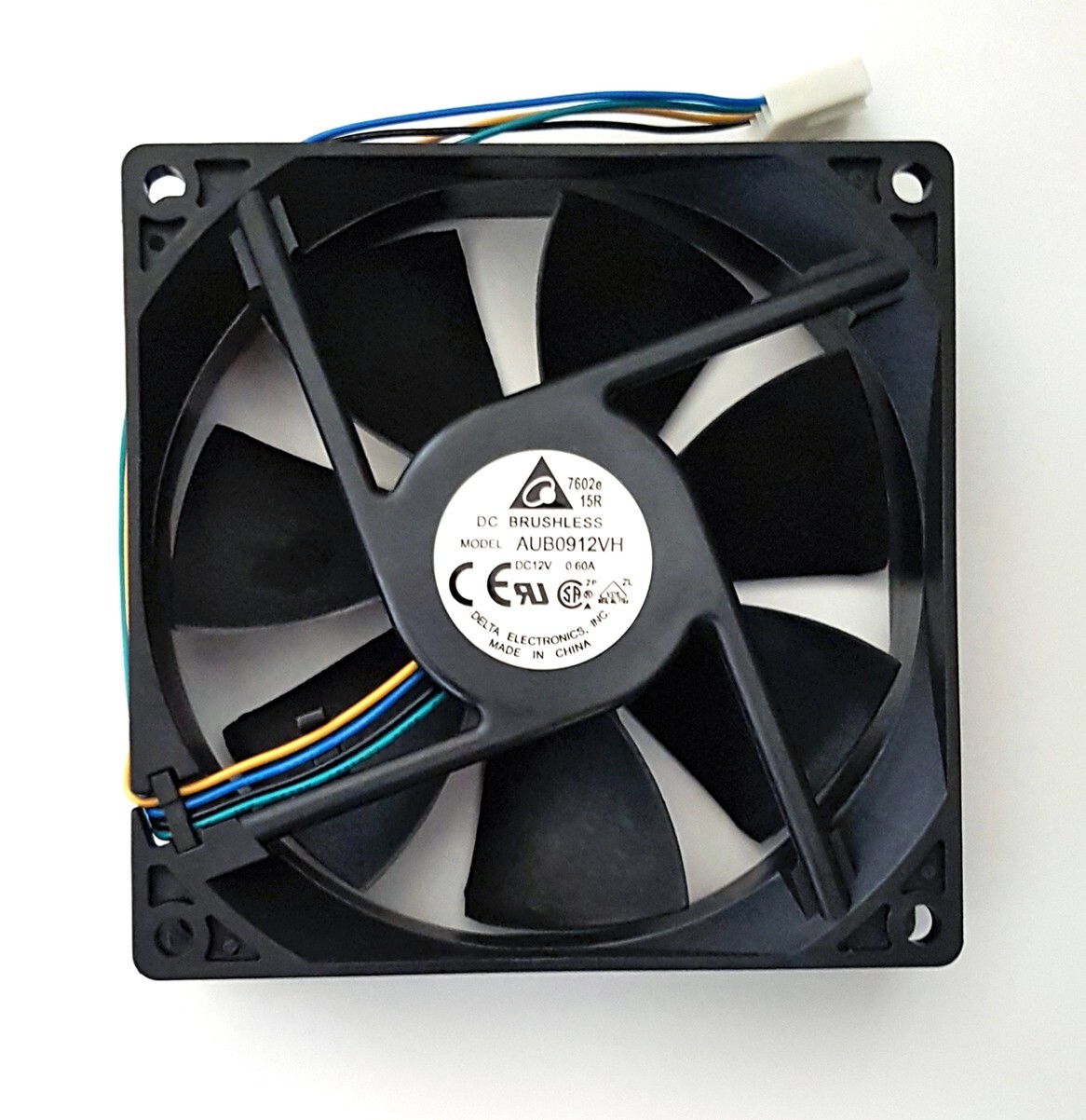

Delta Electronics AUB0912VH PWM High Speed Cooling Fan PWM 4 Pin Connector

• Fan Size: 92 x 92 x25mm
• Rated Voltage: 12VDC
• Operating Voltage: 10.8 - 13.2VDC
• Rated Power: 0.38A, 4.56W
• Fan Speed:3800 RPM (+/-10%)
• Noise Level:45 dBA (maximum 49 dBA)
• Airflow: 67.80 CFM, 1.92 cubic meter per minute
• Air Pressure: 0.302 inchH2O or 7.67 mmH2O
• Bearing: Dual Ball
• PWM Control: The frequency for control signal of this fan shall be able to accept 30Hz - 300KHz
• PWM Duty Cycle: 3800(+/-10%) RPM at 100% duty cycle and 0.38A, 1950(+/-10%)RPM at 50% duty cycle and 0.1A, 500~1000 RPM 0~20% duty cycle and 0.02A
• Connector:PWM 4 pin connector, PWM + Fan Speed Sensor wire
• Connector Wires: Approximately 5.9 inches long from the frame
• Safety Protection: Over-Current Protection, Locked Rotor Protection, Polarity Protection
• Life Expectancy: 50K hours of continuous operation at 40C with 15 - 65% RH
• Operating Temperature: -10 ~ +60 degreeCelsius
• Storage Temperature: -40 ~ +70 degree Celsius
• Product does not contain ozone depleting substances such as PBBs, PBBOs, CFCs, PBBEs, PBDPEs, or HCFCs.
• MPN: AUB0912VH-CX09
