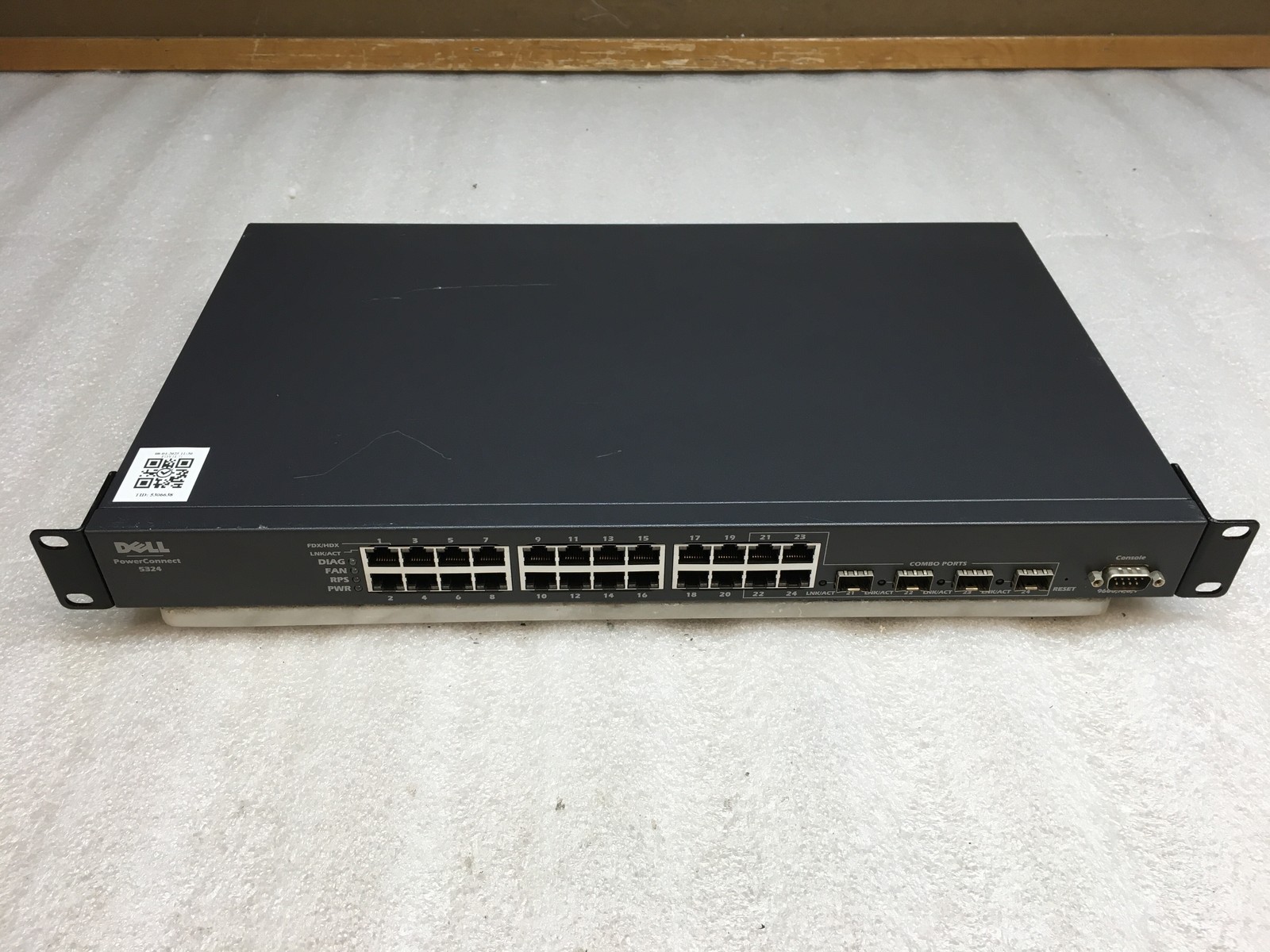

Listing Grid template example Product Photo Description Dell PowerConnect 5324 24-Port Gigabit Ethernet Network Switch w/ Rack Ears Dell PowerConnect 5324 24-Port Gigabit Ethernet Network Switch w/ Rack Ears

The Dell PowerConnect 5324 is a high-performance 24-port Gigabit Ethernet switch designed for reliable network connectivity in business environments. Its robust build and rack-mountable design make it ideal for seamless integration into existing infrastructure, providing efficient data transfer and network management Number: PowerConnect 5324

24 10/100/1000 Mbps RJ-45 ports

Non-blocking architecture with 48 Gbps switching capacity

Store-and-forward switching

Layer 2 switching features including VLAN support

Supports IEEE 802.3az Energy Efficient Ethernet

Supports QoS with multiple priority queues

Rack-mountable with included rack ears

Auto-negotiation on all ports

Steel enclosure for durability

Key Features

• High-density Gigabit Ethernet connectivity for fast data transfer
• Advanced Layer 2 features enabling efficient traffic management
• Plug-and-play setup with auto MDI/MDIX crossover detection
• Robust security features including 802.1x authentication
• Fanless design for quiet operation (depending on model)

Important Notes

• Minor scratches, scuffs, and scrapes from previous use and storage

Included

• Rack Ears

Not Included

• Power adapter/cable
• Ethernet cables
• User show version

  SW version1.0.0.45 ( date07-Jun-2004 time14:34:51 )

  Boot version1.0.0.21 ( date10-Aug-2004 time13:33:06 )

  HW show system

  System Description:Ethernet Switch

  System Up Time Contact:

  System Name:

  System Location:

  System MAC Address:00:11:43:fb:0d:df

  Sys Object PowerConnect 5324




  Power show ----------------- --------------------------- ------------ show ------------ show tacacs




  Device addressStatusPortSingleTimeOutSource ---------- ----- ----------- -------- -------------- --------

  No TACACS server is : 5




  Router IP : show syslog-servers




  Device ----- -------------- -------- show startup-config

  Empty show running-config

  Empty show tree enabled mode STP

  Default port cost method: switch is the root

  Hello Time2 secMax Age 20 secForward Delay 15 sec




  Number of topology changes 0 last change occurred 00:02:23 ago

  Times:hold 1, topology change 35, notification 2

  hello 2, max age 20, forward delay PortFastType

  ------ -------- -------- --------- ------ ---- -------- show address

  -------------------- ---------------- ---------------




  Traps are enabled.

  Authentication-failure trap is -------------------- -------




  System Contact:

  System show radius-servers




  IP addressAuth. TimeOut Retran. DeadTimesource IPPrio. Usage

  --------------- ----- ------- ------- -------- --------------- ----- : 3

  Retransmit : 3

  Deadtime : 0

  Source IP : show qos

  Qos: basic

  Basic trust: show privilege

  Current privilege level is show line

  Console configuration:

  Interactive timeout:10 8

  Parity: none

  Stopbits: 1




  Telnet configuration:

  Interactive timeout:10 configuration:

  Interactive timeout:10 show hosts

  System Name:

  Default domain:Domain name is not lookup is servers (Preference order): Name server is not host name-to-address mapping:




  Router hostname is configured to an IP --------- ----------- -------- -------------

  No hostname is mapped to an IP show dot1x




  802.1x is ------------------ ------------- -------- ---------- -----------------

  g1Force AuthorizedAuthorized*Disabled 3600n/a

  g2Force AuthorizedAuthorized*Disabled 3600n/a

  g3Force AuthorizedAuthorized*Disabled 3600n/a

  g4Force AuthorizedAuthorized*Disabled 3600n/a

  g5Force AuthorizedAuthorized*Disabled 3600n/a

  g6Force AuthorizedAuthorized*Disabled 3600n/a

  g7Force AuthorizedAuthorized*Disabled 3600n/a

  g8Force AuthorizedAuthorized*Disabled 3600n/a

  g9Force AuthorizedAuthorized*Disabled 3600n/a

  g10Force AuthorizedAuthorized*Disabled 3600n/a

  g11Force AuthorizedAuthorized*Disabled 3600n/a

  g12Force AuthorizedAuthorized*Disabled 3600n/a

  g13Force AuthorizedAuthorized*Disabled 3600n/a

  g14Force AuthorizedAuthorized*Disabled 3600n/a

  g15Force AuthorizedAuthorized*Disabled 3600n/a

  g16Force AuthorizedAuthorized*Disabled 3600n/a

  g17Force AuthorizedAuthorized*Disabled 3600n/a

  g18Force AuthorizedAuthorized*Disabled 3600n/a

  g19Force AuthorizedAuthorized*Disabled 3600n/a

  g20Force AuthorizedAuthorized*Disabled 3600n/a

  g21Force AuthorizedAuthorized*Disabled 3600n/a

  g22Force AuthorizedAuthorized*Disabled 3600n/a

  g23Force AuthorizedAuthorized*Disabled 3600n/a

  g24Force AuthorizedAuthorized*Disabled 3600n/a




  • Port is down or not show bootvar

    Images currently available on the FLASH

    image-1 active(selected for next boot)

    image-2 not show backup-config

    Backup file is show arp




    ARP timeout: 60000 Seconds




    InterfaceIP addressHW addressstatus

    --------------- --------------- ------------------- ---------------




    Specifications Functional Condition:
    F3 - Key Functions Working

    Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

    Cosmetic Condition:
    C4 - Used Good

    Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

    Data Sanitization:
    S3 - Data Clear

    Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22


    Mpn
    PowerConnect 5324 Function Tests Powers On
    Passed Physical Inspection
    Passed Functions
    Passed Buttons
    Passed Shipping
