MULTIPLE UNITS IN STOCK • BAREBONES BUILD BASE Dell OptiPlex 7050 SFF Barebones Desktop — Motherboard, PSU & Chassis Included Intel Q270 Chipset • LGA1151 Socket • 4x DDR4 DIMM Slots • M.2 NVMe Ready • No CPU / No RAM / No Drive Q270 Intel Chipset LGA1151 6th & 7th Gen Core 64GB Max DDR4 / 4 Slots PSU + MOBO Both Included

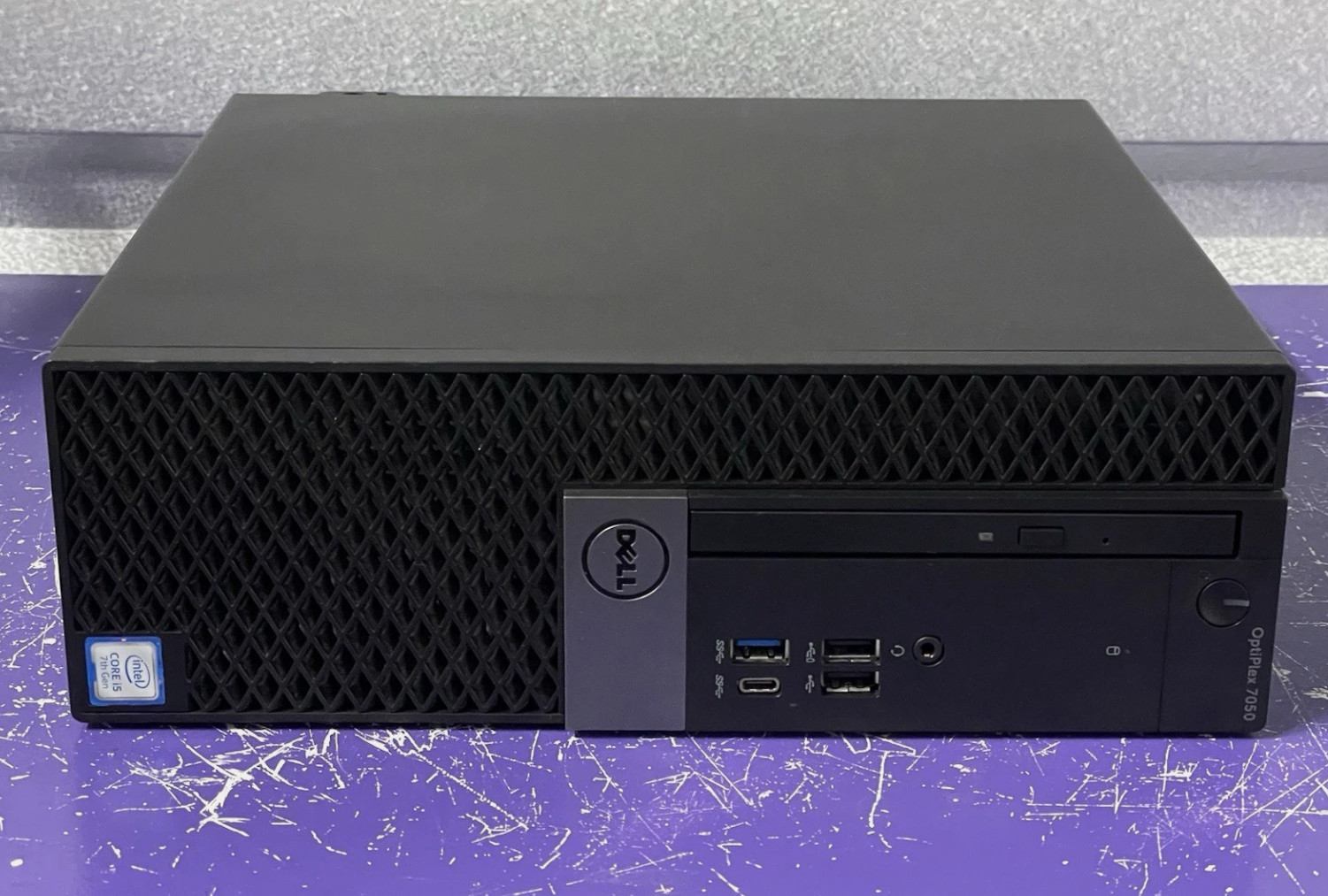

This is a genuine Dell OptiPlex 7050 Small Form Factor barebones system — a complete, ready-to-build desktop chassis with the motherboard, power supply, cooling and all internal hardware in place. The processor, memory and storage drive have been removed. Everything else that makes the machine a machine is still there, so you drop in a CPU, RAM and a drive and you have a working PC.

The OptiPlex 7050 SFF is built on the Intel Q270 chipset with an LGA1151 socket, supporting Intel 6th generation Skylake and 7th generation Kaby Lake desktop processors up to 65W. It takes four DDR4 DIMMs for up to 64GB of memory, boots from an M.2 2280 NVMe or SATA SSD, and has room for a 3.5" or 2.5" drive plus a low-profile PCIe graphics card. This board was pulled from a unit that ran an Intel Core i5-7500, so it is confirmed compatible with 7th gen Core i5 and i7 chips.

These are ideal for system builders, refurbishers, IT departments, homelab and Proxmox users, retro and emulation builds, pfSense/OPNsense routers, NAS projects, thin-client conversions, digital signage, and anyone repairing an existing OptiPlex 7050. Buying barebones lets you spec exactly the CPU, memory and storage you want instead of paying for parts you'll immediately replace.

Multiple identical units in stock. Photos are representative of the lot. Each unit is a used, pulled-from-service business desktop and may show light cosmetic wear — small scratches, scuffs or marks on the case are normal and expected. Please read the full condition notes below before buying.

Full Specifications Model Dell OptiPlex 7050 Small Form Factor (SFF) Motherboard Part Number Dell NW6H5 / 0NW6H5 / CN-0NW6H5 Chipset Intel Q270 Express CPU Socket LGA1151 — supports Intel 6th Gen (Skylake) and 7th Gen (Kaby Lake) desktop CPUs up to 65W TDP. CPU not included. Memory 4x DDR4 UDIMM slots, non-ECC dual channel, 2133/2400MHz, up to 64GB total. RAM not included. Storage Support 1x M.2 2280 slot (PCIe NVMe or SATA SSD), SATA ports for 3.5" HDD or 2.5" SSD, slim optical bay. No drives included. Graphics Integrated Intel HD Graphics (provided by the CPU you install). Supports one low-profile / half-height PCIe graphics card. Expansion Slots PCIe x16 and PCIe x4/x1 (low-profile brackets only), plus M.2 2230 slot for WiFi/Bluetooth card Networking Integrated Intel Gigabit Ethernet (RJ-45) Rear Ports 2x DisplayPort, USB 3.0 and USB 2.0 ports, RJ-45, audio line-out, serial and PS/2 (port configuration varies by unit — see photos) Front Ports USB 3.0 / USB 2.0 ports and headphone + line-out jacks Power Supply Genuine Dell 180W SFF power supply included and installed Operating System None — no OS, no recovery media, no software Form Factor Small Form Factor desktop, tool-less side panel, supports vertical or horizontal orientation Condition — Please Read Cosmetic Condition Used business-class equipment pulled from service. Expect light scratches, scuffs, minor marks and possible asset-tag residue on the chassis. These are cosmetic only and do not affect function. Cases have been cleaned and blown out. Functional Condition The CPU was removed from a working, functioning system. Because no processor, memory or drive is installed, the unit cannot be POST-tested as shipped and is sold as a barebones component base. See the return policy below. Drive Caddy / Bracket The hard drive caddy or mounting bracket is NOT guaranteed. Some units include it, some do not. Please do not purchase assuming a caddy will be present — replacements are inexpensive and widely available. Multiple Quantity Available You will receive one unit equivalent to the one pictured, not the exact unit in the photos. Small differences in wear, rear port configuration and included brackets are possible between units. What's In The Box ✔ Included ✔ OptiPlex 7050 SFF chassis with side panel
✔ Genuine Dell motherboard (NW6H5)
✔ Genuine Dell SFF power supply, installed
✔ CPU heatsink and cooling fan
✔ Front I/O panel, power button and internal speaker
✔ Internal SATA and power cabling
✔ Front bezel, bay blanks and case screws
✔ CMOS battery ✘ NOT Included ✘ Processor / CPU
✘ Memory / RAM
✘ Hard drive, SSD or M.2 drive
✘ Hard drive caddy or bracket (not guaranteed)
✘ Operating system, license or recovery media
✘ Power cord
✘ Keyboard, mouse or monitor
✘ WiFi card, optical drive or graphics card What Parts Fit This System A quick reference so you can order the right components alongside this chassis. Processors (LGA1151, 65W max) 7th Gen Kaby Lake: Core i7-7700, i7-7700K*, i5-7600, i5-7500, i5-7400, i3-7100, Pentium G4560
6th Gen Skylake: Core i7-6700, i5-6600, i5-6500, i5-6400, i3-6100, Pentium G4400
*K-series will run but cannot be overclocked. 8th gen and newer Intel CPUs are not compatible. Memory Standard 288-pin DDR4 UDIMM desktop memory, non-ECC, unbuffered. PC4-17000 (2133MHz) or PC4-19200 (2400MHz). Faster kits will down-clock to 2400MHz. Four slots, 16GB per slot maximum, 64GB total. Install in matched pairs for dual channel. Storage M.2 2280 NVMe PCIe 3.0 x4 or M.2 SATA SSD in the onboard slot — the fastest and easiest boot option since it needs no caddy. Also supports a 3.5" HDD or a 2.5" SSD via the drive bay, plus a slim SATA optical drive. Graphics & Expansion Accepts low-profile / half-height PCIe cards only. Popular picks include the AMD Radeon RX 6400, RX 550, NVIDIA GT 1030 and Quadro P400/P620 — all slot-powered cards that stay within the stock PSU budget. Also fits low-profile NIC, capture and SATA cards. Frequently Asked Questions Does this come with a CPU, RAM or hard drive? No. This is a barebones system. The processor, memory and storage drive have all been removed. You supply those three parts. Everything else — motherboard, power supply, heatsink, fan, cabling and chassis — is included. Which CPU should I buy for it? Any LGA1151 Intel 6th or 7th generation desktop processor rated 65W or lower. The Core i7-7700 is the top supported chip; the i5-7500 (the CPU originally in this unit) and i5-6500 are the best value options. Do not buy an 8th gen or newer CPU — they are not compatible with the Q270 chipset. Will it boot from an NVMe SSD? Yes. The onboard M.2 2280 slot supports PCIe NVMe drives and the BIOS supports booting from them. This is the recommended storage option and it does not require the drive caddy. Is the hard drive caddy included? Not guaranteed. Some units still have the caddy or bracket installed and some do not. Treat it as a bonus if yours has one. If you plan to use a 2.5" or 3.5" drive, budget for a caddy, or use the M.2 slot instead. Can I put a graphics card in it? Yes, as long as it is a low-profile / half-height card. The SFF chassis has no room for a full-height card, and the compact Dell power supply has no PCIe power connector, so stick to slot-powered cards. Does it include Windows? No operating system, license, key or install media is included. You will need to supply your own OS. Linux, Windows and hypervisors such as Proxmox all install without issue on this platform. I need several — can I buy multiples? Yes. Multiple identical units are in stock and the listing quantity can be adjusted at checkout. Combined shipping is applied automatically on multi-unit orders. Shipping Ships fast from the United States on business days.
Packed in a double-walled box with foam and bubble cushioning; the chassis is braced so the board and PSU cannot shift in transit.
Combined shipping on multiple units.
Tracking is uploaded to as soon as the label is scanned. Returns & Support Returns accepted per the policy shown at the top of this listing.
Cosmetic wear described above is not grounds for a not-as-described claim.
Questions about compatibility before you buy? Message us — we answer quickly and would rather help you get the right part than process a return. Also searched as Dell OptiPlex 7050 SFF barebones • OptiPlex 7050 small form factor no CPU no RAM • Dell 7050 SFF desktop shell • OptiPlex 7050 SFF motherboard PSU case combo • Dell NW6H5 0NW6H5 barebones system • LGA1151 barebones desktop PC • Intel Q270 barebones SFF • DDR4 barebones desktop computer • Dell OptiPlex 7050 chassis with power supply • OptiPlex 7050 SFF replacement case • Dell SFF build base • barebones PC kit no processor • OptiPlex 7050 SFF for i5-7500 i7-7700 • Dell business desktop barebones lot • refurb OptiPlex 7050 project PC • homelab Proxmox pfSense barebones SFF • Dell OptiPlex 7050 parts repair unit • 6th 7th gen Kaby Lake Skylake barebones desktop Build it your way.
Genuine Dell hardware • Multiple units in stock • Fast US shipping • Message us with any compatibility question
