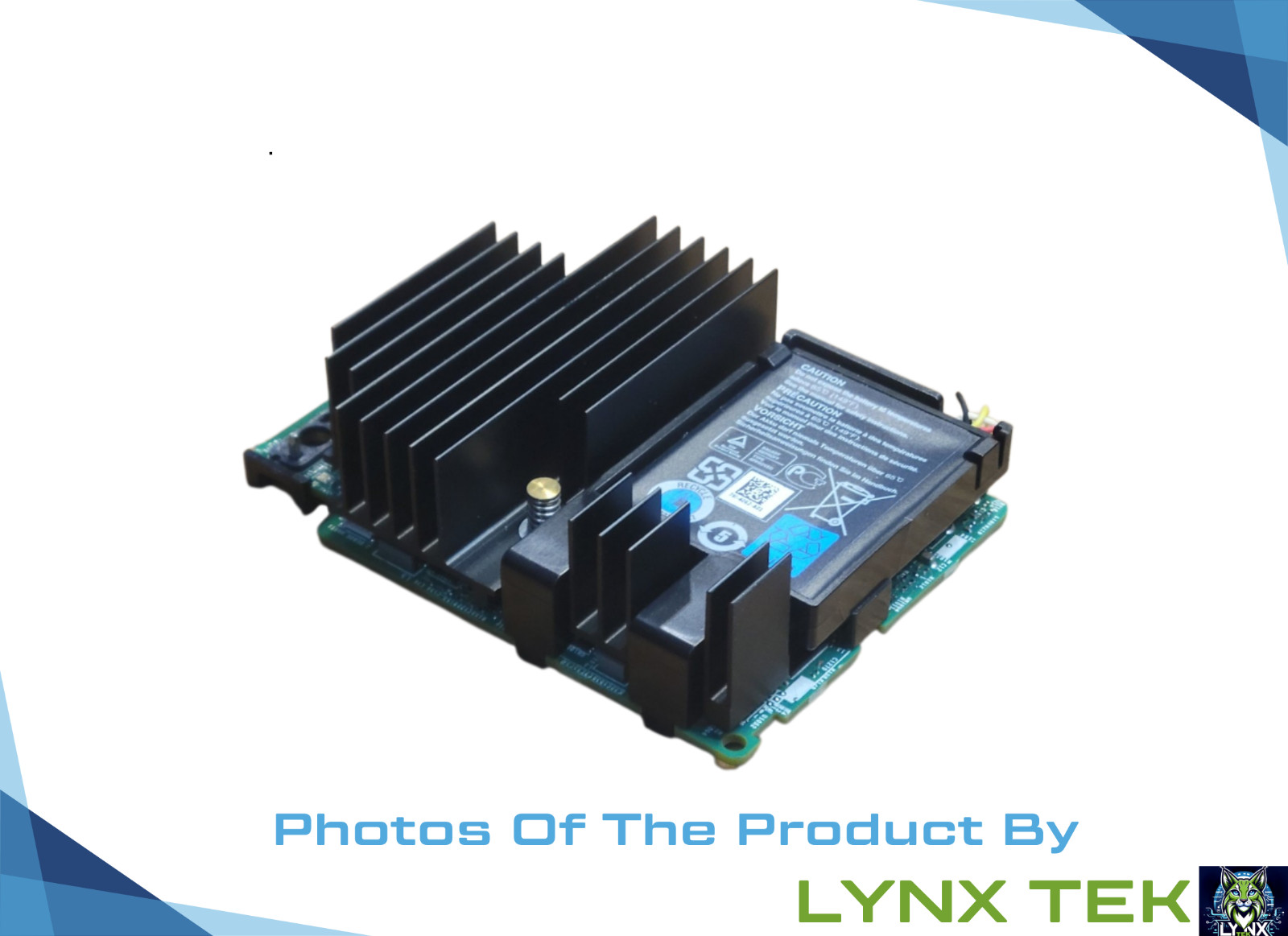

Dell PERC H730 Mini Mono SAS/SATA RAID Controller — 1GB Cache, 12Gb/s SAS, w/ Battery (KMCCD)
Dell PERC H730 Mini Mono RAID controller (Dell part number KMCCD / 0KMCCD), built around the LSI SAS3108 dual-core RAID-on-Chip and backed by 1GB of NV cache with battery-backed protection. It supports 8 internal SAS/SATA channels — SAS drives negotiate up to 12Gb/s and SATA drives up to 6Gb/s — and covers RAID levels 0, 1, 5, 6, 10, 50, and 60. The Mini Mono form factor mounts directly to a dedicated connector on compatible Dell PowerEdge 13th-generation motherboards rather than occupying a standard PCIe slot, so it does not use a full-height/low-profile slot bracket. Ideal for rebuilding or upgrading storage on PowerEdge servers such as the R630, R730, R730XD, R430, R530, and comparable towers.
Part NumberKMCCD / 0KMCCD (Dell 463-0574 / 405-AAEJ)Controller ModelDell PERC H730ChipsetLSI SAS3108, dual-core PowerPC RAID-on-ChipForm FactorMini Mono (integrated motherboard-mount card, no slot bracket)Cache1GB, 72-bit DDR3, NV cache with battery backupBatteryLi-Ion cache backup battery — includedChannels / Ports8 internal SAS/SATA portsInterface SpeedSAS 12Gb/s / SATA 6Gb/sBus InterfacePCIe Gen3 x8Max Devices SupportedUp to 32RAID Levels0, 1, 5, 6, 10, 50, 60ManagementiDRAC7/8 with Lifecycle Controller, RACADM CLICompatible ServersDell PowerEdge 13th Gen — R430, R530, R630, R730, R730XD, T430, T630, and similarDrives IncludedNone — controller only
Features & Protocols
- ✓ Supports SAS and SATA hard drives and SSDs
- ✓ RAID 0, 1, 5, 6, 10, 50, 60
- ✓ 1GB battery-backed NV cache for data protection during power loss
- ✓ 8 internal ports / up to 32 connected devices
- ✓ Hot-swap and online capacity expansion support
- ✓ Integrated iDRAC-based configuration and monitoring
What's Included
- ✓ 1x Dell PERC H730 Mini Mono RAID Controller (KMCCD)
- ✓ 1x Cache backup battery
No driver media or manuals are included
