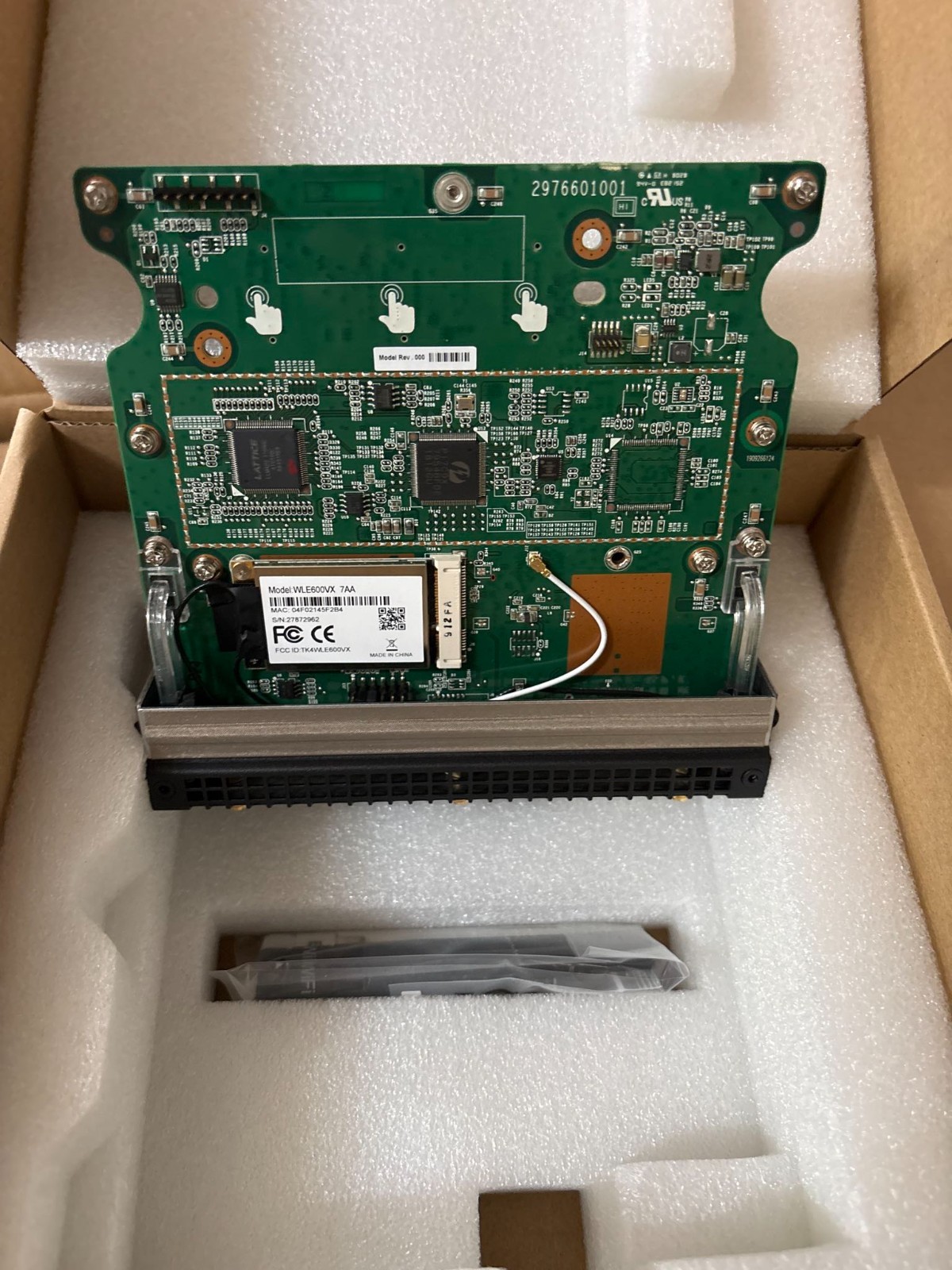

Dell EMC VEP4600 WIFI BT/BLE Expansion Card for Front Panel Compex WLE600VX - 802.11ac/a/b/g/n miniPCI Express-Karte, I-Pex-AnschlüsseFeatures - Qualcomm-Atheros QCA9882
- Ausgangsleistung (pro Chain):
- 2.4 GHz: max. 21 dBm
- 5 GHz: max. 20 dBm
- IEEE 802.11ac-konform & rückwärtskompatibel mit 802.11a/b/g/n
- 2x2 MIMO-Technologie & bis zu 867 Mbps
- MiniPCI Express 1.1-Schnittstelle
- Unterstützt Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC), Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
- Unterstützt IEEE 802.11d, e, h, I, k, RO, v time stamp, und w-Standards
- Unterstützt Dynamic Frequency Selection (DFS)
- Karten sind individuell für Qualitätssicherung kalibriert
- Unterstützt durch entweder CompexWRT mit Atheros Reference Wireless-Treiber ODER OpenWRT mit ath10k Wireless-Treiber auf WPJ344
Anwendungen(kombiniert mit WPJ344) - Chipset: QCA9882
- Host-Schnittstelle: PCI-Express 1.1 Standard
- Betriebsspannung: 3.3 V DC
- Stromverbrauch: 3.5 W
- Antennenanschluss: 2 x G: 2.412 ~ 2.472 GHz
- 5 G: 5.180 ~ 5.825 OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
- RoHS-konform: -20 °C to 70 °C
- Lager: -40 °C to 90 5 % to 95 % (nicht kondensierend)
- Lager: max. 90 % (nicht kondensierend)
Maße (mm): 50.95 x 30 x 3.2 (H x B x T)English Description: Compex WLE600VX - 802.11ac/a/b/g/n miniPCI Express Radio Card, I-Pex ConnectorsFeatures - Qualcomm-Atheros QCA9882
- Output power (per chain):
- 2.4 GHz: max. 21 dBm
- 5 GHz: max. 20 dBm
- IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
- 2x2 MIMO technology & up to 867 Mbps
- MiniPCI Express 1.1 interface
- Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC), Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
- Supports IEEE 802.11d, e, h, I, k, RO, v time stamp, and w standards
- Supports Dynamic Frequency Selection (DFS)
- Cards are individually calibrated for Quality Assurance
- Supported by either CompexWRT with Atheros Reference Wireless Driver OR OpenWRT with ath10k Wireless Driver on WPJ344
Applications(combined with WPJ344) - Indoor AP
- Outdoor AP
- 802.11 ac/a/b/g/n CPE
- 802.11 ac/a/b/g/n Point-to-Point
- Chipset: QCA9882
- Host Interface: PCI-Express 1.1 Standard
- Operating voltage: 3.3 VDC
- Power consumption: 3.5 W
- Antenna connector: 2x U.FL
- Frequency range:
- 2.4 G: 2.412 GHz ~ 2.472 GHz
- 5 G: 5.180 GHz ~ 5.825 GHz
- Modulation techniques: OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
- RoHS compliance: Yes
- Temperature range:
- Operating: -20 °C to 70 °C
- Storage: -40 °C to 90 5 % to 95 % (non-condensing)
- Storage: max. 90 % (mm): 50.95 x 30 x 3.2 (H x W x D)
